• Model NO.：GY-SCR400KW
• Certification：CE, RoHS, FCC
• Type：Metal Casting
• Manufacturing Level：a
• Media：Induction Heating
• Burning Style：Induction Heating
• Pressure：High Pressure
• Water Circulation：Natural Circulation
• After Service：Engineers Available to Service Machinery Oversea
• Melting Material：Iron,Steel,Brass,Aluminum,Silver,Lead and etc
• Work Power：380V 3phase
• Delivery Time：20 Workdays
• Frequency：Low Frequency
• Transport Package：Wooden Boxes
• Trademark：GY
• Origin：China
• HS Code：8514400
• Production Capacity：20set Per Month

Basic Info.

Model NO. GY-SCR400KW Certification CE, RoHS, FCC Type Metal Casting Manufacturing Level a Media Induction Heating Burning Style Induction Heating Pressure High Pressure Water Circulation Natural Circulation After Service Engineers Available to Service Machinery Oversea Melting Material Iron,Steel,Brass,Aluminum,Silver,Lead and etc Work Power 380V 3phase Delivery Time 20 Workdays Frequency Low Frequency Transport Package Wooden Boxes Trademark GY Origin China HS Code 8514400 Production Capacity 20set Per Month

Product Description

Metal Industry Induction Melting Furnace For Precious Metal Smelting  (GY-SCR400KW)


Overview and Uses

The medium frequency induction furnace apply to iron and steel, copper, Ceruse, aluminum, zinc, nickel, gold and silver and other metal melting, heating, insulation, and forging, sintering, hot rolling, bending forming pre-heat treatment. Is mainly used in melting foundry industry.

Equipment Main Features

1, Using a zero-voltage scanning soft-start mode, in any case may at any time to start or stop, will not have impact on power supply.

2, Rapid melting, the production cost is low; Pollution is small, comply with environmental requirements;

3, A direct effect from the cold furnace melting. Dissolved material will be fully dumped clean. Molten material easy to replace.

4, Power adjustment flexibility. Be able to continuously smooth adjustment. Temperature uniformity can be easily controlled. Oxidation burning less. Metal components evenly.

5, Furnace shell using cast aluminum or steel structure, small footprint; Furnace flip dump convenience, according to the need to use electric, manual, hydraulic tilting furnace and other means.

6, Designed to automatically adjust angle of inverter circuit that can automatically adjust the load impedance match, without adjustment of capacitance compensation and always run the equipment in good working condition; Power supply system diagnostic error function, easy maintenance.


Parameter:

No.	Model	GYM-0.15T-160KW	GYM-0.25T-250KW	GYM-0.35T-300KW	GYM-0.5T-400KW	GYM-0.75T-500KW	GYM-1T-1000KW/750KW	GYM-1.5T-1400KW/1000KW	GYM-2T-1800KW/1400KW	GYM-3T-2500KW/2000KW	GYM-5T-3000KW	GYM-8T-5000KW	GYM-10T-5500KW
1	Furnace Rated Capacity (Ton)	0.15	0.25	0.35	0.5	0.75	1	1.5	2	3	5	8	10
2	MF Rated Power (KW)	160	250	300	400	500	1000     750	1400   1000	1800   1400	2500    2000	3000	5000	5500
3	MF Input Voltage (V)	380	380	380	380	380	380       750	750	750       950	950	950	950	950
4	Working Frequency (Hz)	1000	1000	1000	1000	1000	700	700	500	500	500	500	500
5	Melting Ratio (Ton/H)	0.2	0.4	0.4	0.6	0.9	1.5	2	3	4.2	6	8	10
6	Consumption Power (KWH/Ton)	780	700	700	680	670	650	610	610       580	600	590	580	580
7	Water cooling (Ton/H)	5	8	8	10	15	18	25	28	35	45	60	70
8	Rated voltage of Induction coil (V)	850	850	850	16000	1600	1600   2500	2500	2500   3000	3000	3000	3000	3000
9	Melting temperature (C)	1600	1600	1600	16000	1600	1750	1750	1750	1750	1750	1750	1750

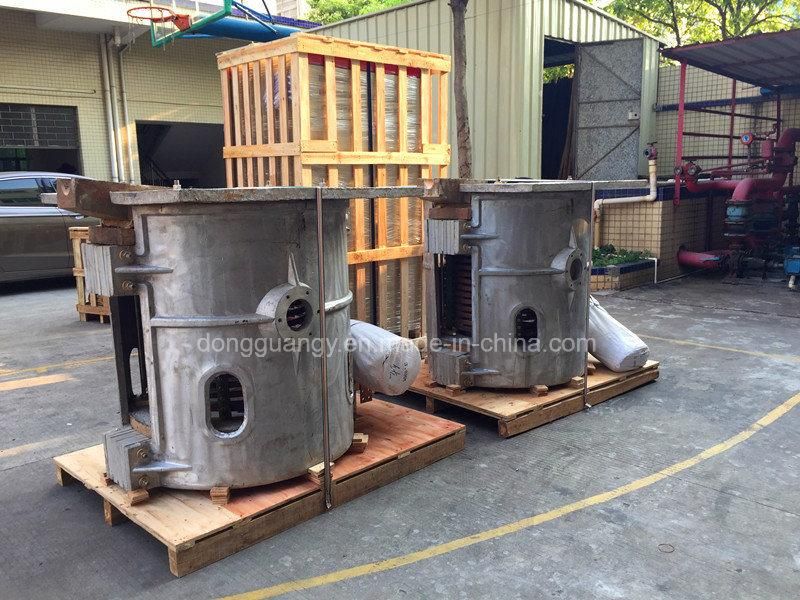

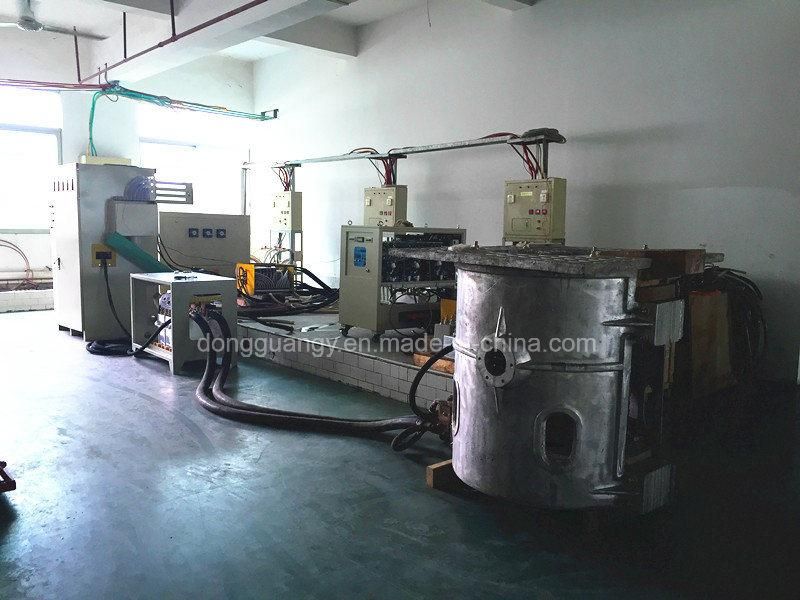

IF Furnace Complete Parts

1. Furnace body
2. Medium frequency power supply cabinet
3. Water cooling cable
4. Reduction machine
5. Crucible mold
6. Compensation capacitor rack.
7. Chiller ( Optional )
8. Installation drawings and specifications

Multiple titling types

1. Manual titling melting furnace
2. Electric titling melting furnace
3. Hydraulic titling melting furnace
4. Other models






About service question:
Q: Why choose GuangYuan Company?
A: We are manufacture which had in this filed for nearly 20 years.No matter quality,
price,service,delivery time,we all have large advantage.

Q:How to choose suiteble machine?
A:You can tell us your application,need forging,hardening,welding,melting or other,
pass me workpiece material & size,Temperature requirement and heating time requirement.
Then we will recommend fit machine for you reference.

Q:How about the machine payment term&delivery time&Shipping term?
A: Our company payment term accept T/T,Western Union,L/C and so on.Small machine delivery
time is 3~7 workdays.Big machine delivery time 15~25 workdays.Shipping term accept EXW,FOB,
CIF and so on.

Q:How about the machine warranty?
A:Our goods support one year warranty not by personal purpose,support technical service all life.
During the warranty,if machine have problem need change spare parts,we can replace for you charge free.
