• Model NO.：ZYYX26-200-1000
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Certificate：CE , ISO
• Operation Language：English or as Per Client`S Required
• Rollers Material：No.45 Forged Steel, Plated with Hard Chrom
• Cutter Material：Cr12 Mould Steel Being Quenched Treatment
• Cutting Type：Cut to Length
• Quality System：ISO9001
• Control System：Mitsubishi PLC & Converter
• Guarantee Time：First Year Free, Lifetime Services
• Main Motor：7.5kw
• Forming Type：Roll Forming
• Transport Package：40gp
• Specification：CE SGS BV ISO
• Trademark：Zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：10sets,Month


Technical parameterItemSpecification

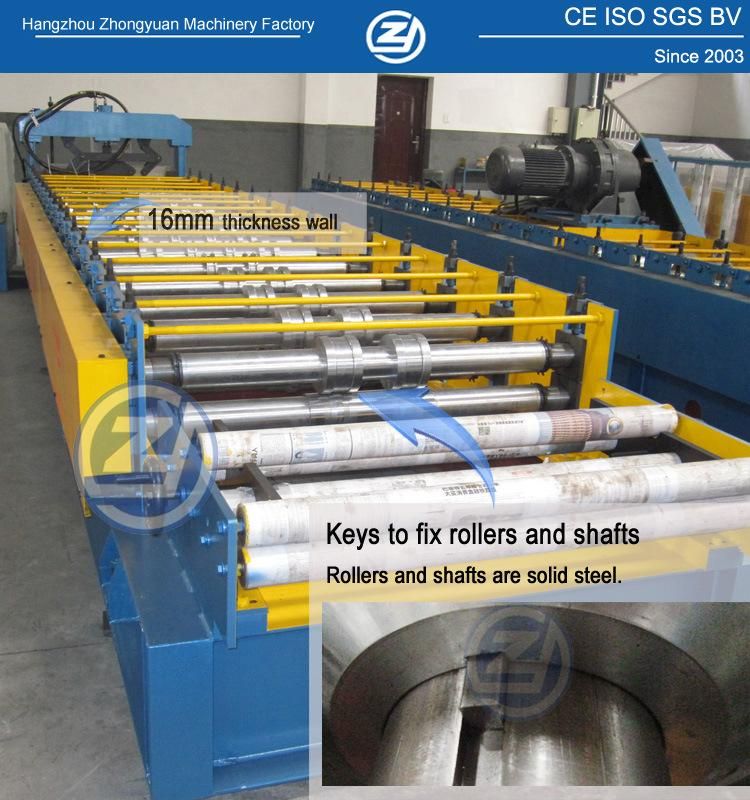

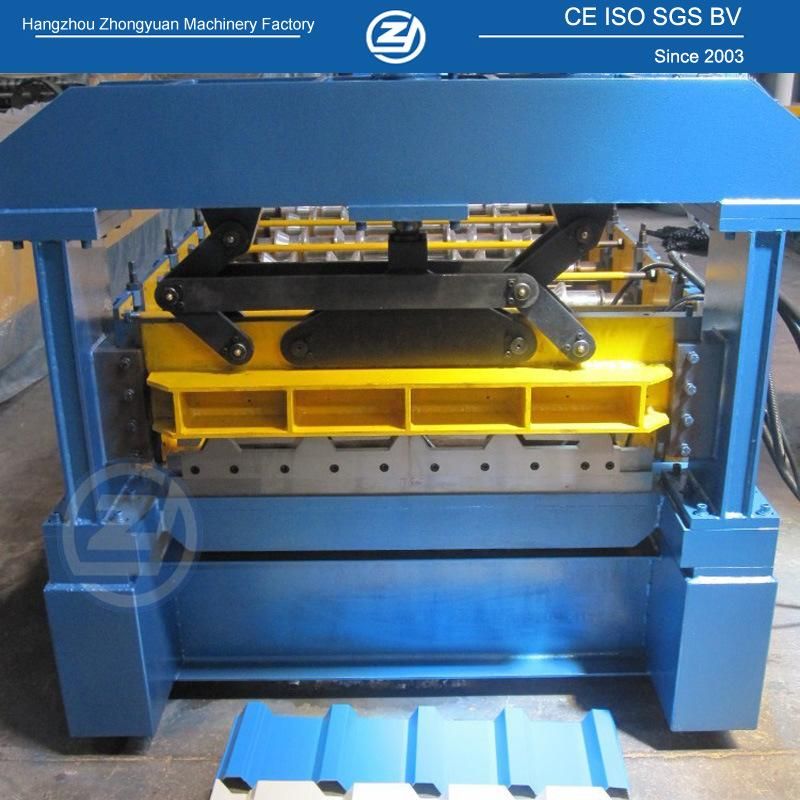

Raw MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.3-0.7Yield strength(mpa)235-550Roller material45# steel , coated with ChromeShaft for rollers Solid shaft with 72mm,processed with cylindrical grinderForming speed(m/min)About 20-25Output speed(m/min)About 12 for 6m length sheetSpeed adjusting modeMitsubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steelLength measurementNemicon EncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)7.5KWTotal power(kw)9.9 KWProcess flowDecoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table

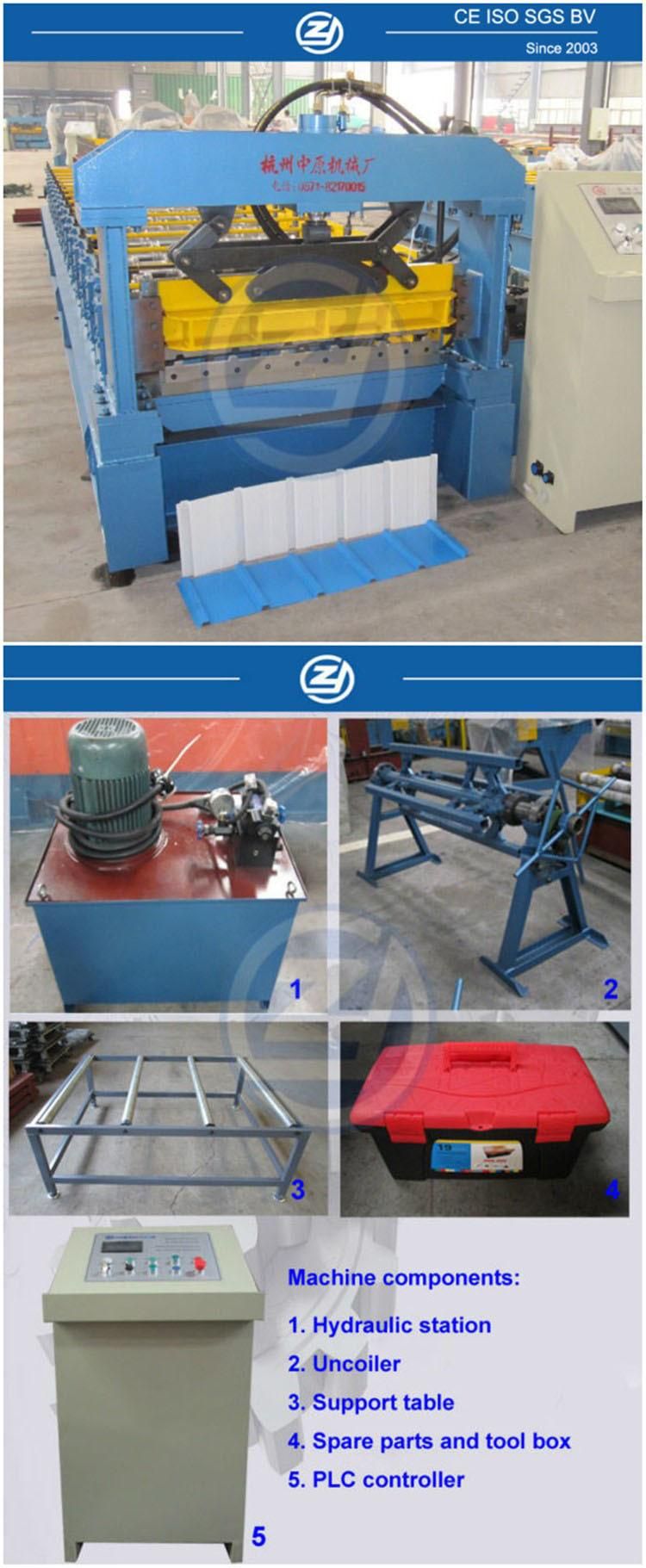

Components of machineDecoiler (manual decoiler and hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set

Controller
The PLC controller is the "CPU" of forming machine. Machine excellence performance need the supports of excellence PLC.
We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation; with auto working mode, let your workers free their hands!






About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.

1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.





Please feel free to contact us for more information!
