• Model NO.：QC12Y
• product name：Good quality metal sheet cutter QC12Y Series mach
• model：QC12Y
• Max. Shearing Thickness：6
• Max. Width：4000
• Strength of sheet：450
• Shear angle：1.5
• Max. rear stop stroke：600
• Fuel tank volume：280
• Main motor power：7.5
• warranty：12 months
• Transport Package：Plywwood Case
• Specification：Max. Shearing Thickness 4
• Trademark：Luzhong
• Origin：China
• HS Code：8462312000
• Production Capacity：200 Pieces,Months

Basic Info.

Model NO. QC12Y product name Good quality metal sheet cutter QC12Y Series mach model QC12Y Max. Shearing Thickness 6 Max. Width 4000 Strength of sheet 450 Shear angle 1.5 Max. rear stop stroke 600 Fuel tank volume 280 Main motor power 7.5 warranty 12 months Transport Package Plywwood Case Specification Max. Shearing Thickness 4 Trademark Luzhong Origin China HS Code 8462312000 Production Capacity 200 Pieces/Months

Product Description

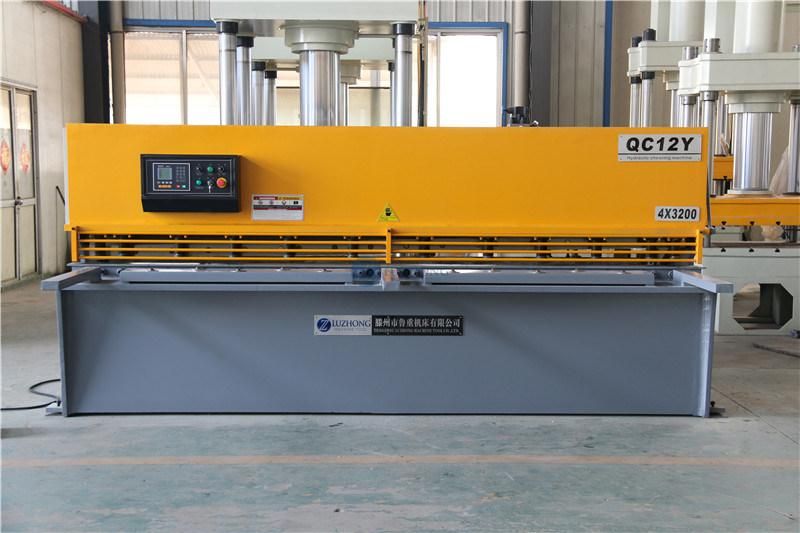

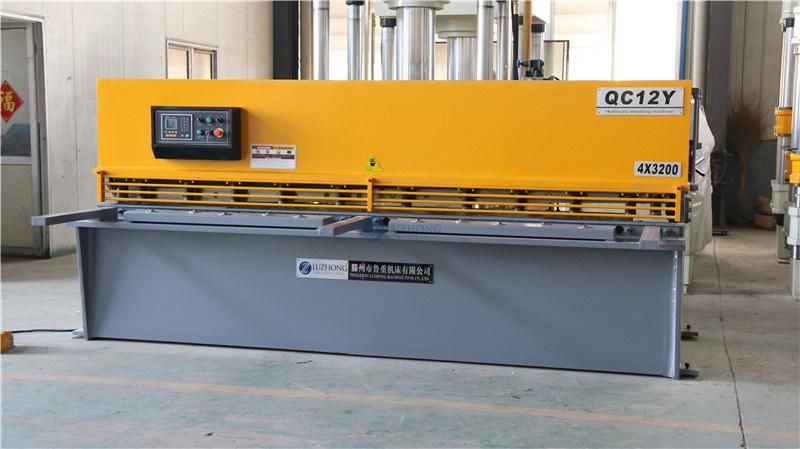

Good quality metal sheet cutter QC12Y Series  machine shearing  machine hydraulic


 The main performance characteristics:

1 Sheet plate welded structure is adopted with hydraulic transmission and accumulator return, typical of an easy operation reliable performance and nice appearance .
2 Indication by indicator is prompt for adjustment of blade clearance. for a handy and prompt adjustment .
3 Alignment device with lighting and control device for shearing stroke are set. with a handy and prompt adjustment .
4 Rolling material support ball is provided. to minimize fish tail with sheet bar and to reduce frictional resistance.
.
5The rear stopper is fitted with electric adjustment and manual adjustment devices. and digital display device is available for display of size of stopper and times of shearing.

Application:

Hydraulic shearing machine is the sheet metal industry under the cutting tool, Widely used in industrial machinery, metallurgical industry, automobile, shipbuilding, electrical appliances, engineering equipment, sheet metal processing, steel pipe welding, electronic industry, aerospace industry, agricultural machinery manufacturing, dining furniture machinery industry.

Product main technical parameters:


Specification parameter	Company	6x2500	6x3200	6x4000	8x3200	8x4000	12x2500	12x3200	12x4000	16x2500	16x3200	20x2500	20x3200
Maximum shear plate thickness	mm	6	6	6	8	8	12	12	12	16	16	20	20
Maximum cutting width	mm	2500	3200	4000	3200	4000	2500	3200	4000	2500	3200	2500	3200
Shear plate strength	N/m²	450	450	450	450	450	450	450	450	450	450	450	450
shear angle	deg	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	2.5	2.5	2.5	2.5
Maximum rear stop stroke	mm	600	600	600	600	600	800	800	800	800	800	800	800
Fuel tank volume	L	280	280	280	320	320	410	410	410	410	410	650	650
Main motor power	K w	7.5	7.5	7.5	7.5	11	18.5	18.5	18.5	22	22	30	30
machine length	mm	3200	3900	4770	3990	4810	3340	4160	4960	3360	4160	3520	4160
Machine width	mm	1800	2040	2600	2400	2600	2840	2840	2840	2840	2840	2840	2840
Machine height	mm	1650	1700	1800	1810	1950	2180	2180	2180	2180	2180	2350	2350
machine weight	Kg	7000	8500	9500	9000	10500	10500	12000	14000	12500	14500	18000	20000
