• Model NO.：ZYYX Series
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Brand：Zhongyuan
• Operation Language：English or as Per Client`S Required

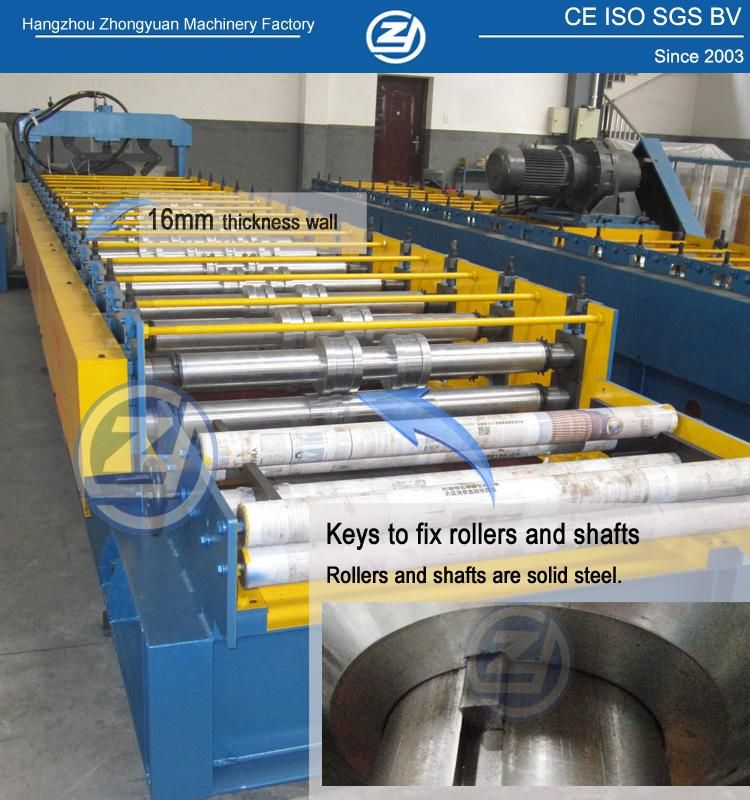

• Rollers Material：No.45 Forged Steel, Plated with Hard Chrom
• Shaft Diameter：72mm
• Cutter Material：Cr12 Mould Steel Being Quenched Treatment
• Quality Warranty：First Year Free, Lifetime Services
• Quality System：ISO
• Certificate：CE
• Controlling System：Mitsubishi PLC & Converter
• Machine Weight：About 10t
• Transport Package：40gp
• Specification：40gp
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：5sets,Month

ItemSpecificationMaterialTypePre-painted steel coil & galvanized coilsThickness (mm)0.4-0.7Yield strength (mpa)235-345Roller material45#Chrome steelForming speed(m/min)About 20-25Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mold steel Length measurementEncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power (kw)7.5 kw (Depend on final design)Hydraulic station power 2.2 kw (Depend on final design)Total power (kw)9.7 kwUncoiler's loading capacityMax. Capacity: 5000kgs (can be increased to be 10T)





About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.

1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.






Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
