• Model NO.：ZYYX
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Operation Language：English or as Per Client`S Required
• Machines Weight：About 8t
• Cutter Material：Cr12 Mould Steel Being Quenched Treatment
• Rollers Material：No.45 Forged Steel, Plated with Hard Chrom
• Guarantee Time：First Year Free, Lifetime Services
• Shafts for Rollers：72mm Diameter Solid Steel
• Cutting Style：Cut to Length
• Controlling System：Mitsubishi PLC & Converter
• Main Motor：7.5kw
• Certificate：CE; ISO
• Transport Package：1X40gp Container
• Specification：CE SGS ISO
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：10sets,Month


Technical parameterItemSpecification
Raw MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.3-0.7Yield strength(mpa)235-550Roller material45# steel , coated with ChromeShaft for rollers Solid shaft with 72mm,processed with cylindrical grinderForming speed(m/min)About 20-25Output speed(m/min)About 12 for 6m length sheetSpeed adjusting modeMitsubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steelLength measurementNemicon EncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)5.5KWTotal power(kw)7.7 KWProcess flowDecoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table
Components of machineDecoiler (manual decoiler and hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set


Packing:
1. One 40feet container for loading one set machine with decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery : about 50 days

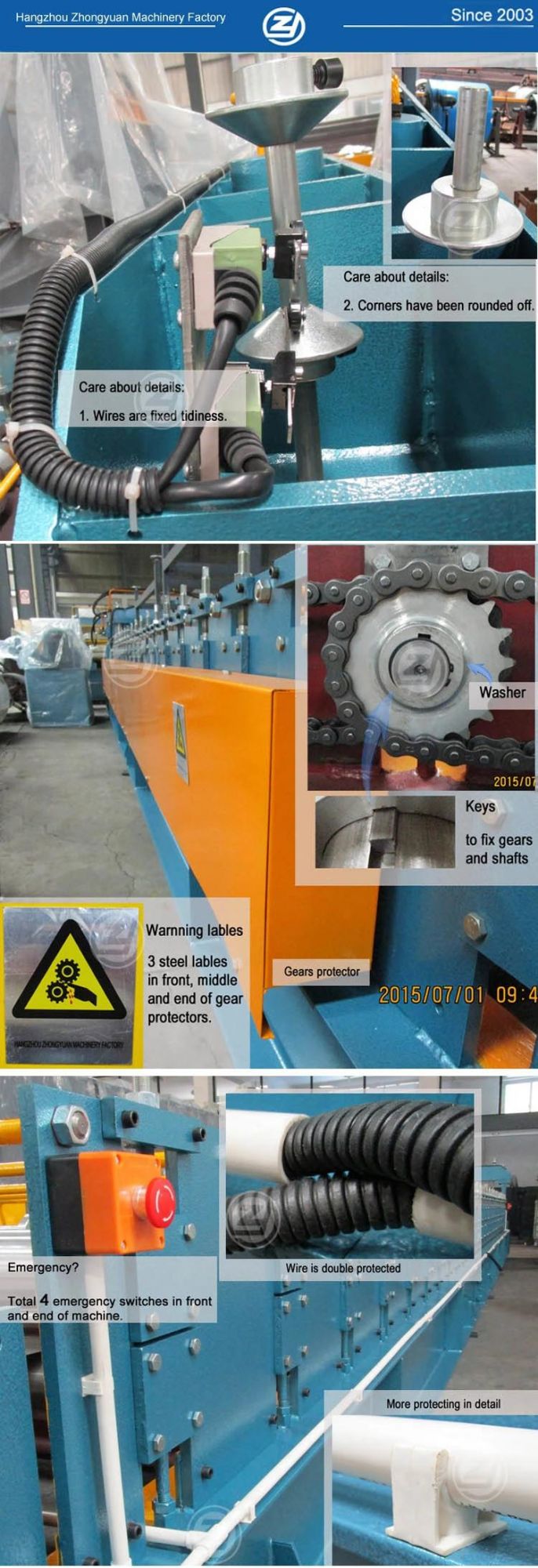

Machine detail

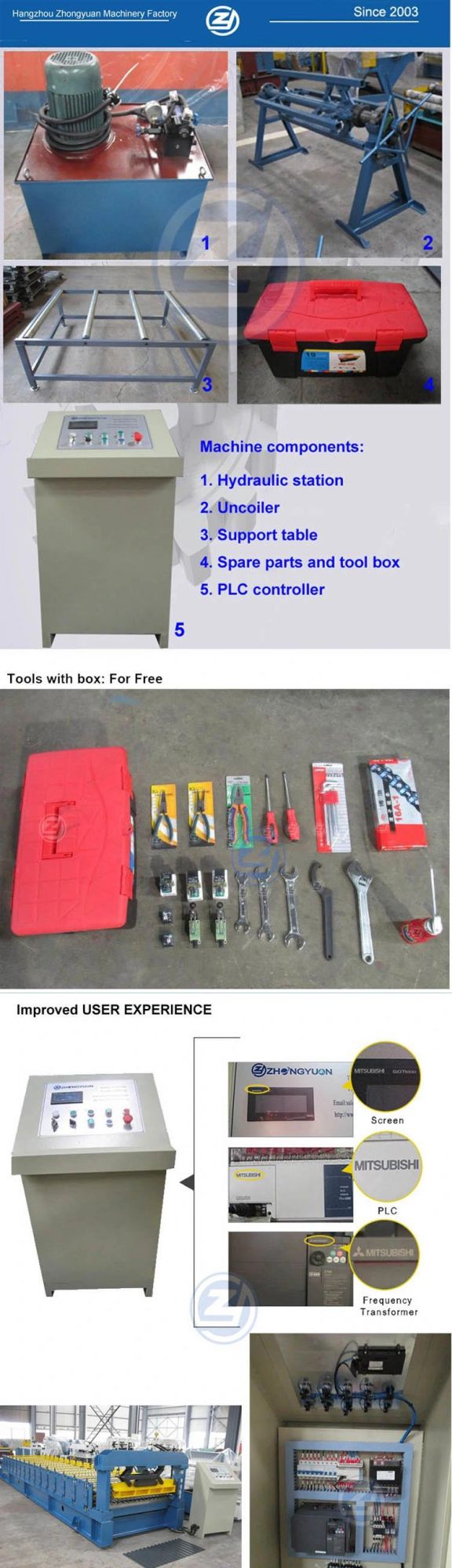

Machine components & control system




About us
We are professional in making roll forming machines since 2003.
Company occupies 6650, in which 5650 for workshops.

1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Over the past 10 years, our R&D members dedicated in make better machines.

We garantee:
Machine lifetime service
Technician overseas services.
