• Model NO.：ZYYX Series
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Machine Weight：About 4t
• Size：About 7*1.2*1.6m
• Operation Language：English or as Per Client`S Required
• Certificate：CE
• Guarantee Time：First Year Free, Lifetime Services
• Quality System：ISO
• Cutter Material：Cr12 Mould Steel Being Quenched Treatment
• Rollers Material：No.45 Forged Steel, Plated with Hard Chrom
• Controlling System：Mitsubishi PLC & Converter
• Main Power：5.5kw
• Transport Package：40gp Container for One Machine
• Specification：ISO CE SGS
• Trademark：Zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：10sets,Month

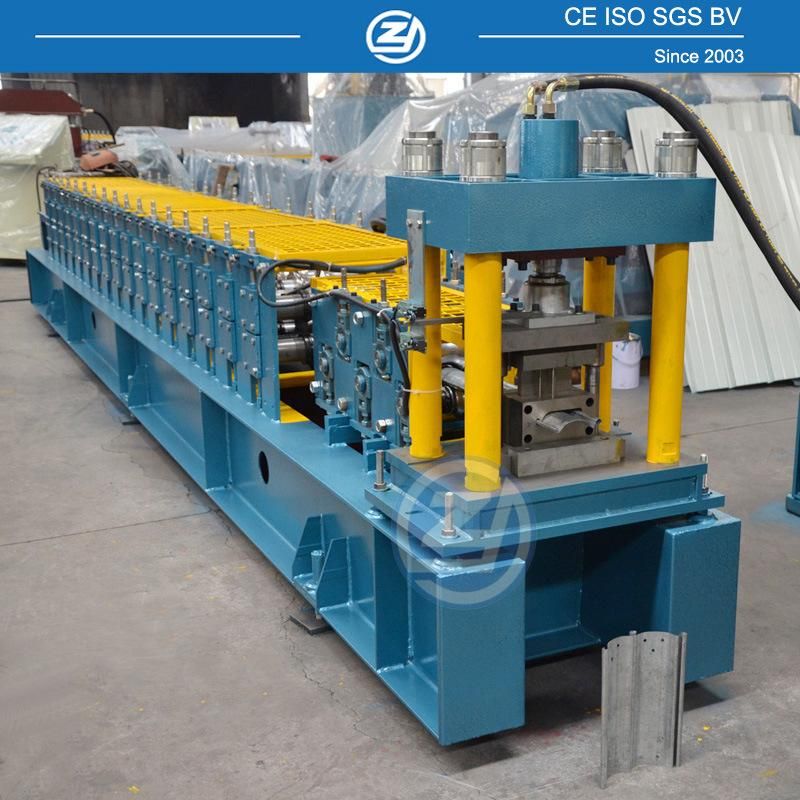

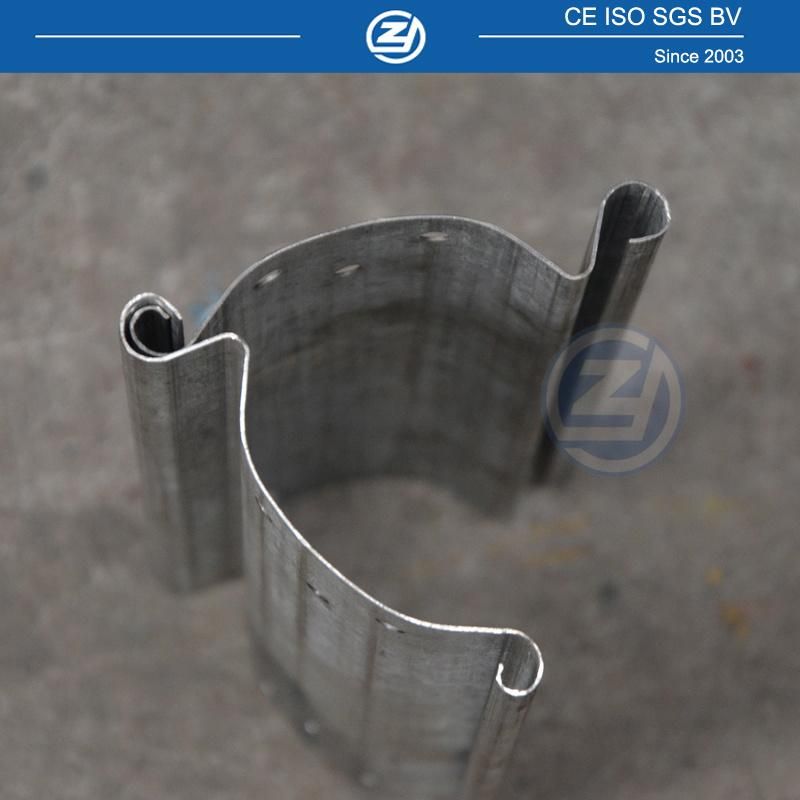

                                     ISO Shutter Door Cold Roll Forming MachineItemSpecification TypeColor steel sheet or galvanized steel sheetMaterialThickness(mm)0.5-0.7 Yield strength(mpa)235 -345Roller material45#Chrome steelForming speed(m/min)About 15-20 (excluding in cutting time)Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steel Length measurementEncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)5.5KW   (Depend on final design)Hydraulic station power 2.2K W   (Depend on final design)Total power(kw)7.7KWUncoiler's loading capacityMax. Capacity: 3000kgs
Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setPLC Controlling system1setRun out table 1set
Process flow:
Decoiling the sheet  →  Leveling sheet →  Roll forming →  Measure length and cutting →  the Purline to the supporter

Machine material
1. Electric elements: Mitsubishi PLC & transducer from Japan.

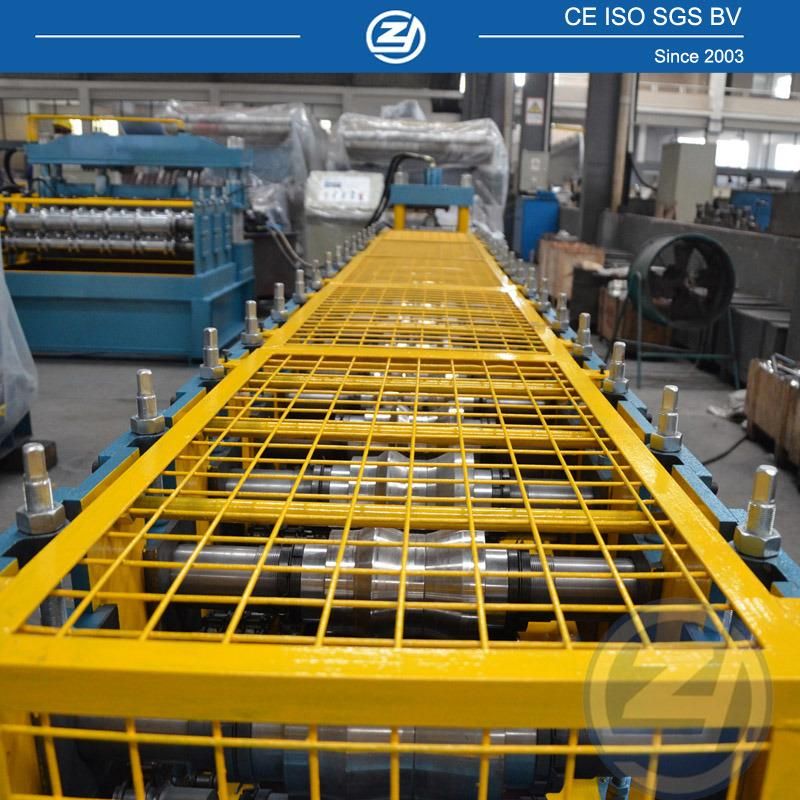

2.  Anti-rust roller: High grade No. 45 forged steel. Plated with 0.05mm hard chrome
3.  Well resisting active shaft: High grade No. 45 carbon wrought steel.

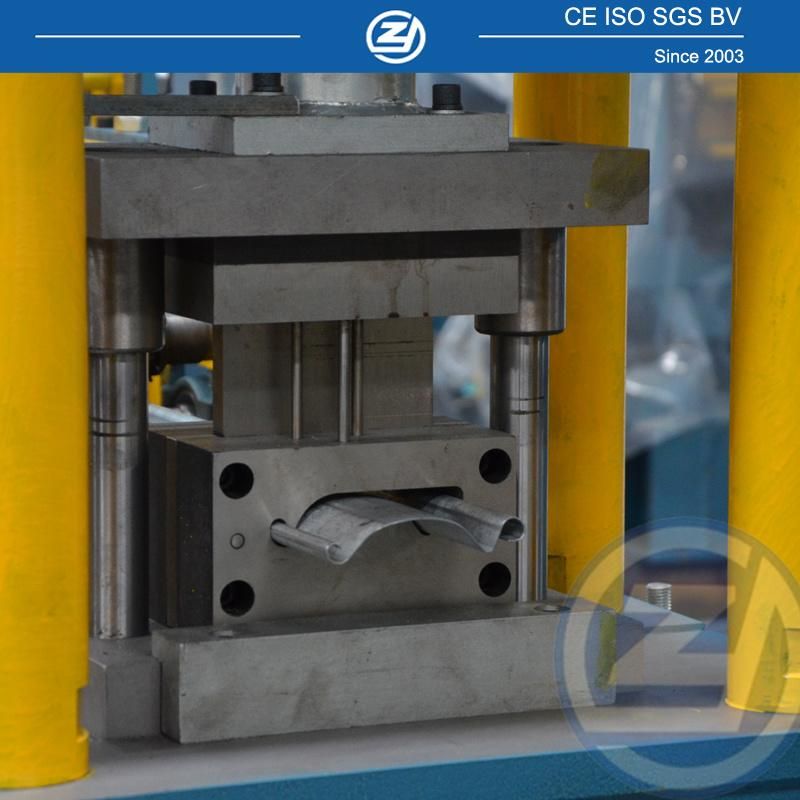

4.  Cutter blade: Cr12 mould steel with quenched treatment
5.  Precision: shafts are tooled by grinding machine at least twice. Rollers are CNC processed







Packing:
1. One 40feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery : about 50 days after received advaced payment


Why us?
1.  Customize roll forming machines since 2003.
2.  Capacity: 12-15 sets/month
3.  Delivery: in only 5-8 weeks for urgent order
4.  Company occupies 6650, in which 5650 for workshops
5.  Have our own tool center. 12 sets CNC machines.
6. Technician can be sent to your factory to install the machine and train your workers
7. Zhongyuan is a "All-in-house source"
   --from raw material to the final high-precision forming machine. We have our precise tooling center.





Please feel free to contact us for more information!
