• Model NO.：ZYYX Series
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Brand Name：Zhongyuan
• Model Number：Zyyx27-190-950
• Power：5.5kw
• Tile Thickness：0.4-0.6mm
• Working Speed：About 1500-2000mm,Min or 4-5m,Min. for Option
• Controlling System：Mitsubishi PLC & Converter
• Machines Weight：About 9000kgs
• Machines Size：About 10m*1.7m*1.4m (Depend on Final Design)
• Rollers Material：No.45 Forged Steel, Plated with Hard Chrom

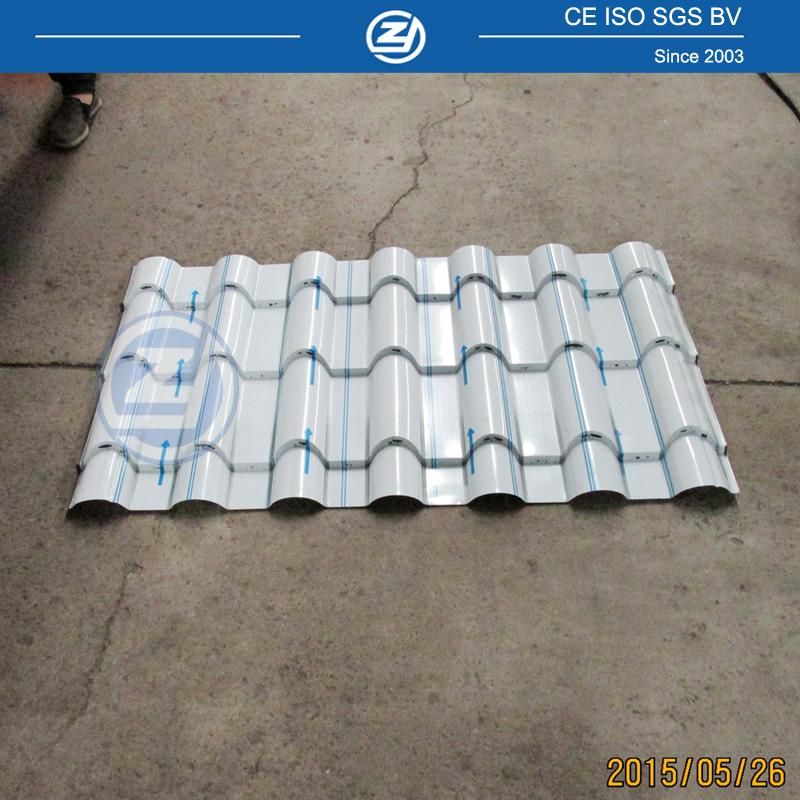

• Name：Metal Roof Tile Roll Former
• Transport Package：Suitable for Sea Transport
• Specification：CE SGS BV
• Trademark：Zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：15 Sets,Month

ItemSpecification
MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.4-0.6Yield strength(mpa)235-345Roller material45#Chrome steelForming speed(m/min)About 15-20Output speed(m/min)2-3Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steel Length measurement EncoderControl mode Mitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)5.5KWTotal power(kw)11KW
Components of machineDecoiler1set  Feeding & guiding device1setMain roll forming machine1setHydraulic pressing system1setHydraulic cutting system1setControlling system1setRun out table 1set

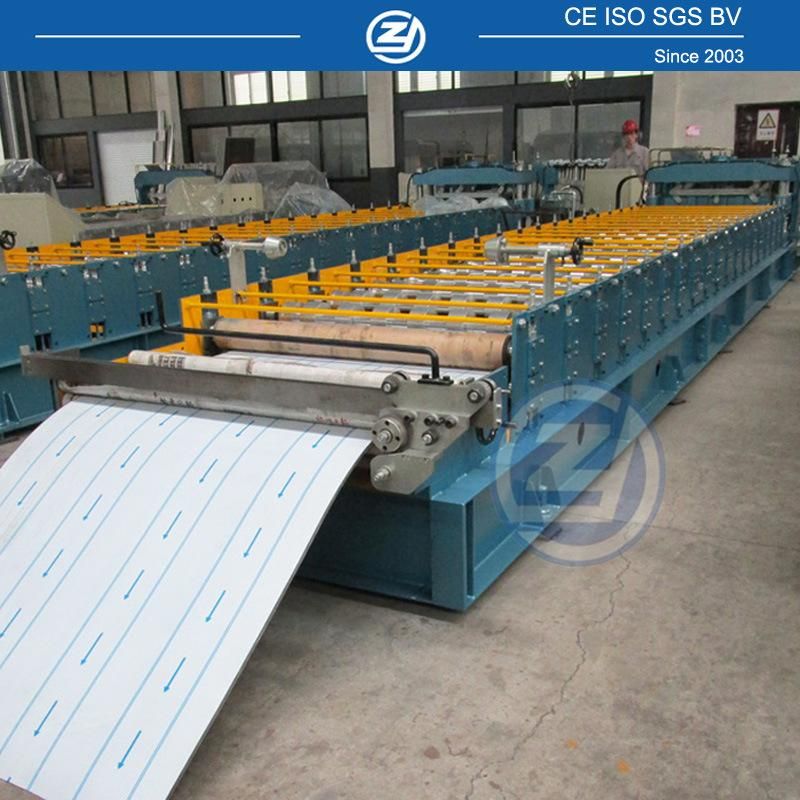

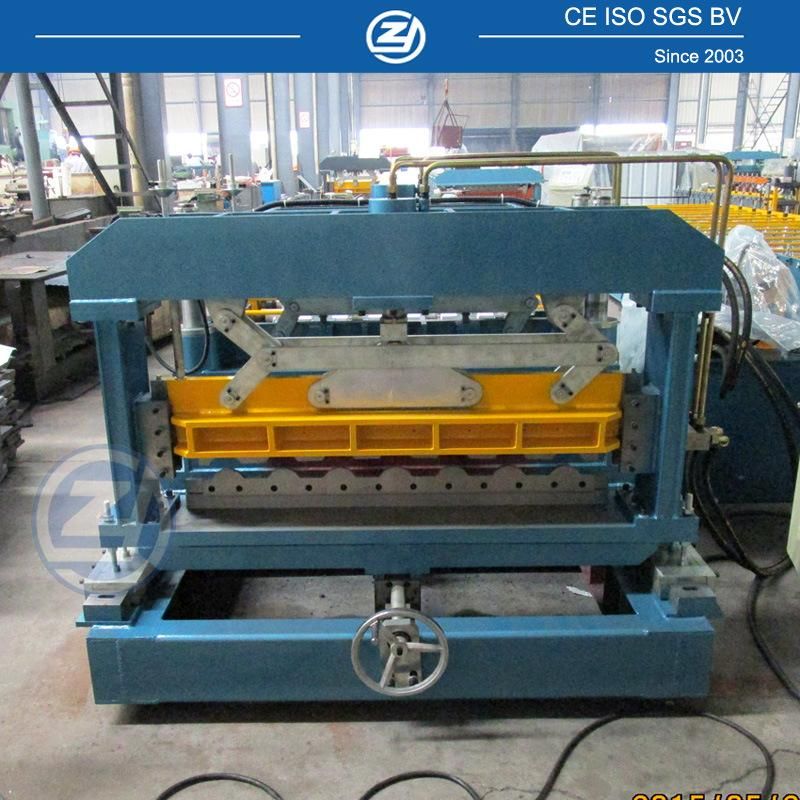

Process flowDecoiler -- Feeding & Guiding -- Roll forming---Hydraulic pressing ---Hydraulic Cutting - product to run out table






About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.




Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
