Roof Tile Rollformer Machine
Hangzhou Zhongyuan Machinery Factory- Type：Rolling Machine, Tile Forming Machine
- Forging Forming Method：Cold Roll Forming
- Power Source：Electric
- Feature：Automation
- Certification：ISO9001, CE, SGS, BV, CE, ISO
- Warranty：12 Months
Base Info
- Model NO.：ZYYX Series
- Customized：Customized
- Advantage：Easy to Maintenance
- Condition：New
- Brand Name：Zhongyuan
- Tile Press Power：Hydraulic
- Power：5.5kw
- Tile Thickness：0.4-0.6mm
- Working Speed：About 1500-2000mm,Min or 4-5m,Min. for Option
- Controlling System：Mitsubishi PLC & Converter
- Machines Weight：About 9000kgs
- Machines Size：About 10m*1.7m*1.4m (Depend on Final Design)
- Cutting Type：Cut to Length
- Name：Roof Tile Rollformer Machine
- Transport Package：Suitable for Sea Transport
- Specification：CE SGS BV
- Trademark：Zhongyuan
- Origin：China
- HS Code：84552210
- Production Capacity：15 Sets,Month
Description

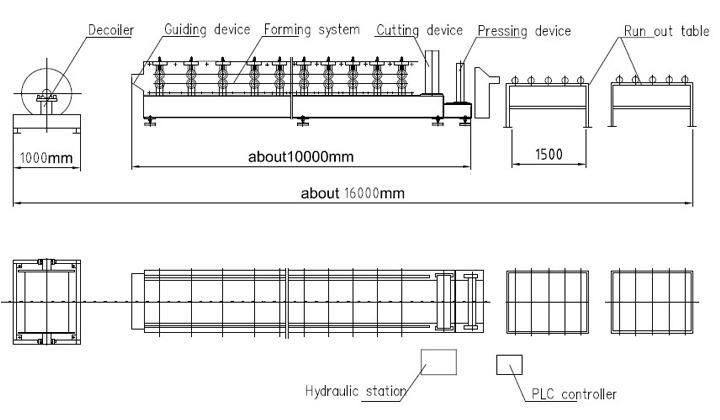

Layout drawing
Our Certificate
FAQ
Q1:When your factory extablished?
A1: We extablished since 2003, team with engineers who have 20 years experience in metal forming machine industry. We produce machine all-in-house, from raw material to ready machine, all done in our factory, so that we can control our machine quality and delivery time.
Q2:How long does it take to deliver the machine after the order & deposit?
A2:Usually it will take 50-60 working days to manufacture the machine and make it ready to deliver. At first 15 days the technical drawing will be made. The second 25 days start manufacturing the parts and ready to assemble. In the last 20 days the machine will be assembled and inspected to make sure it is ready to deliver.
Q3:What is your warranty term?
A3:Machine warranty time is 12 months. We supply life time service for our produced machines for all customers.
Q4:Can you offer oversea service?
A4:Yes,we have experienced technicians who can be sent to different countries to install our machines and supply others service .
