• Model NO.：ZYYX
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Machine Color：Made-to-Order
• Place of Origin：China
• Forming Type：Cold Roll Forming
• Panel Usage：Roofing or Wall
• Cutting Type：Cut to Length
• Operation Language：English or as Required
• Hydraulic Loading Capacity：5 Ton
• Voltage：380V,3pH,50Hz
• Main Power：7.5kw

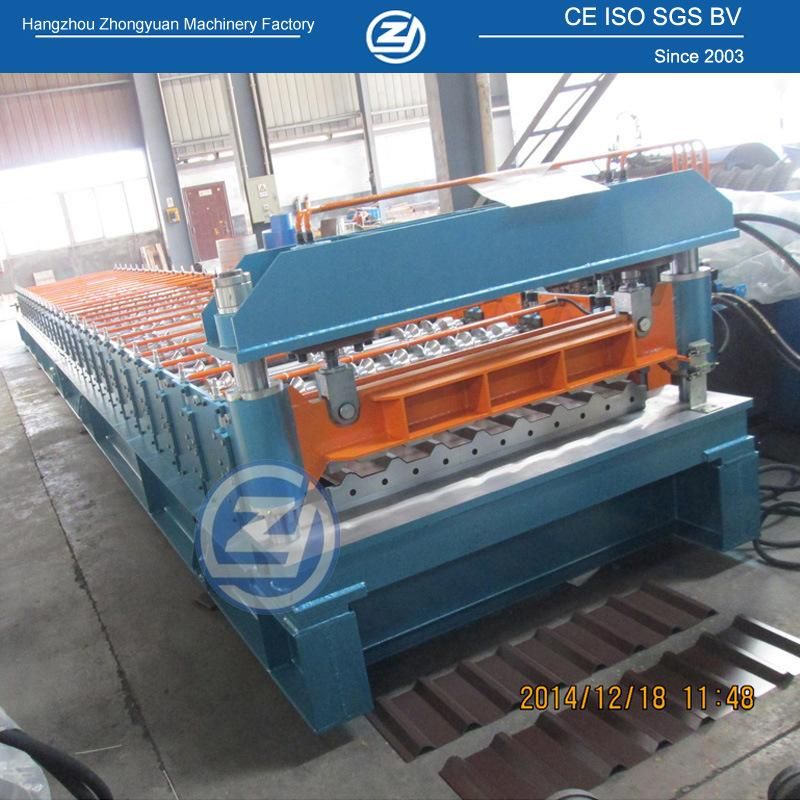

• Name：ISO Roof Steel Cold Roll Forming Machinery
• Transport Package：40gp
• Specification：CE SGS BV ISO
• Trademark：Zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：10sets,Month


Technical parameterItemSpecification

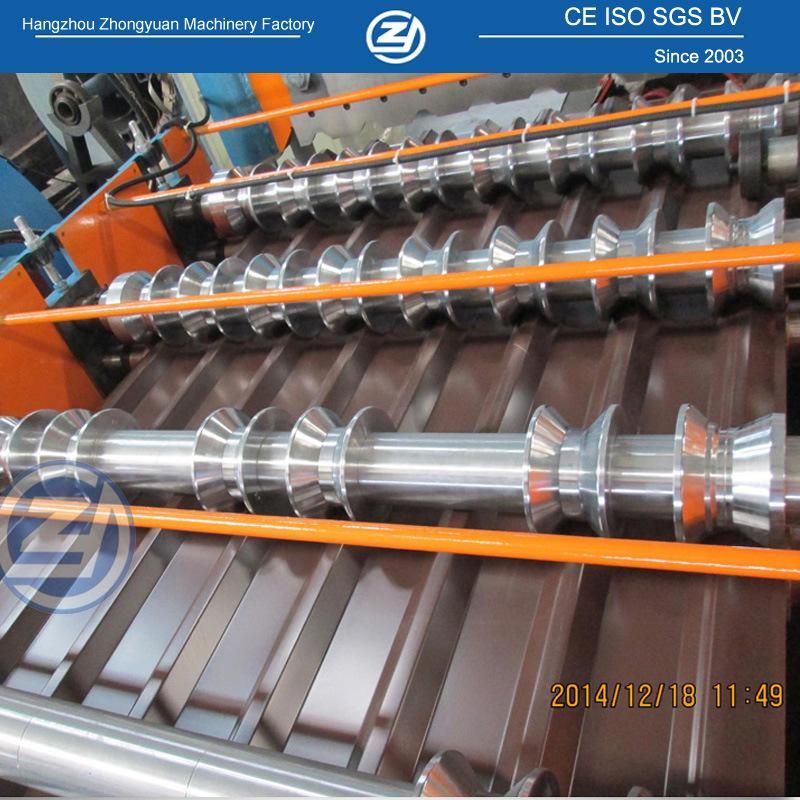

Raw MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.4-0.7Yield strength(mpa)235-345Roller material45# steel , coated with ChromeShaft for rollers Solid shaft with 72mm,processed with cylindrical grinderForming speed(m/min)About 15-20Output speed(m/min)About 10Speed adjusting modeMitsubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steelLength measurementNemicon EncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)5.5KWTotal power(kw)7.7KWProcess flowDecoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table

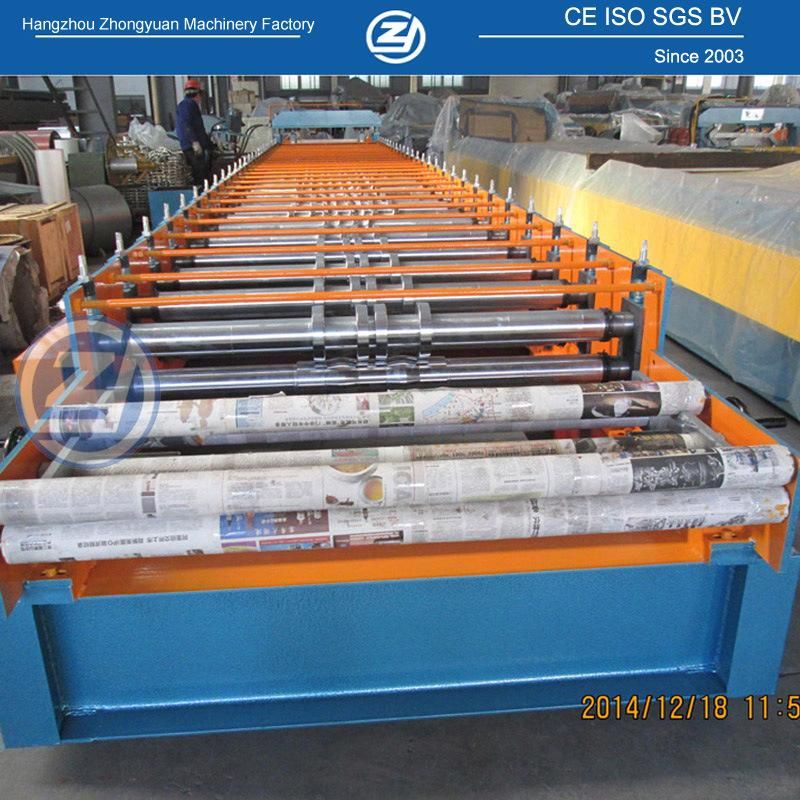

Components of machineDecoiler (manual decoiler and hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set






About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.


Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!





FAQ:
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A:  1) We record the testing video for your reference. Or,
    2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.

7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
