• Model NO.：Metrocopo
• Customized：Customized
• Advantage：Use Widely
• Condition：New

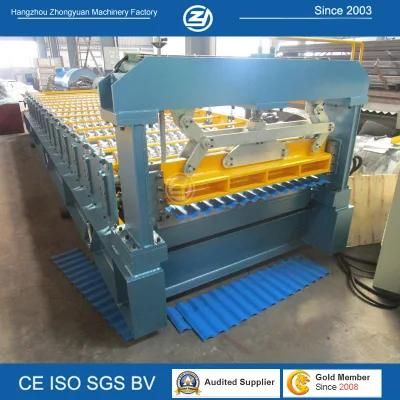

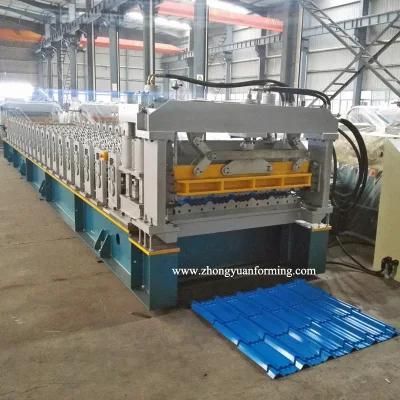

• Name：Metrocopo Roof Tile Roll Forming Machine
• Power：5.5kw
• Tile Thickness：0.5-0.6mm
• Output Speed：5-6m,Min
• Controlling System：Mitsubishi PLC & Converter
• Machines Weight：About 9000kgs
• Brand Name：Zhongyuan
• Transport Package：Suitable for Sea Transport
• Specification：CE SGS BV
• Trademark：Zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：15 Sets,Month

ItemSpecification
MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.5-0.6Yield strength(mpa)235-345Roller material45#Chrome steelForming speed(m/min)About 25Output speed(m/min)5-6Speed adjusting modeAC FrequencyRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steel Length measurement EncoderControl mode Mitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)5.5KWHydraulic power(kw)7.5KW
Components of machineDecoiler1set  Feeding & guiding device1setMain roll forming machine1setHydraulic pressing system1setHydraulic cutting system1setControlling system1setRun out table 1set
Process flowDecoiler -- Feeding & Guiding -- Roll forming---Hydraulic pressing ---Hydraulic Cutting - product to run out table
