CE Hydraulic Steel Cable Wire Rope Sling Swage Press Machine
BOBO Machine Co., Ltd.- Forging Forming Method：Mold Forging
- Condition：New
- Mould：Customized
- Work Speed：4.5mm,S up and 6.5mm,S Down
- Power：16kw
- Press Capacity：15000kn
Base Info
- Model NO.：BO-1500
- Net Weight：10 Tons
- Guarantee Period：12 Months
- Voltage：380V or Customized
- Dimension：1800X900X1800mm
- Item：Wire Rope Pressed Machine
- Transport Package：Wooden Package
- Specification：GB
- Trademark：BOBO
- Origin：China
- Production Capacity：10 Sets,Quarter
Description
Basic Info.
Model NO. BO-1500 Net Weight 10 Tons Guarantee Period 12 Months Voltage 380V or Customized Dimension 1800X900X1800mm Item Wire Rope Pressed Machine Transport Package Wooden Package Specification GB Trademark BOBO Origin China Production Capacity 10 Sets/QuarterProduct Description
CE Hydraulic Steel Cable Wire Rope Sling Swage Press Machine

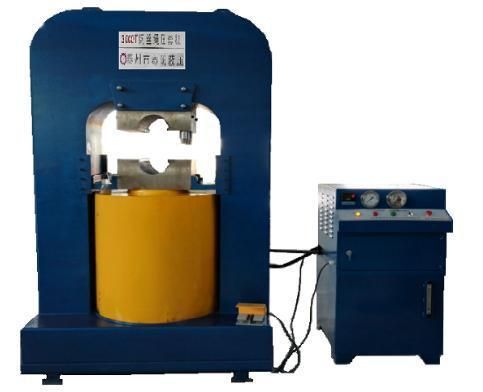

Wire rope pressed machine(BO-1500)
Wire rope pressed machine(BO-1500) is widely used in oil fields, ports, railways, construction and other related fields. The finished lock has stable tension, heavy loading capacity feature.
Feature of Wire rope pressed machine
Light weight
Quick installation
Adjustable piston stroke
High technology and strength
Main technical data of Wire rope pressed machine
| 1 | Model | BO-1500 |
| 2 | Max.press power | 15000KN |
| 3 | Max. wire rope diameter | 56 / 65mm |
| 4 | Max. working pressure | 58MPa |
| 5 | Max. piston stroke | 220mm |
| 6 | Work speed | 4.5mm/s up and 6.5mm/s down |
| 7 | Motor capacity | 16kw |
| 8 | Dimension | 1800x900x1800mm |
| 9 | Net Weight | 10 tons |
