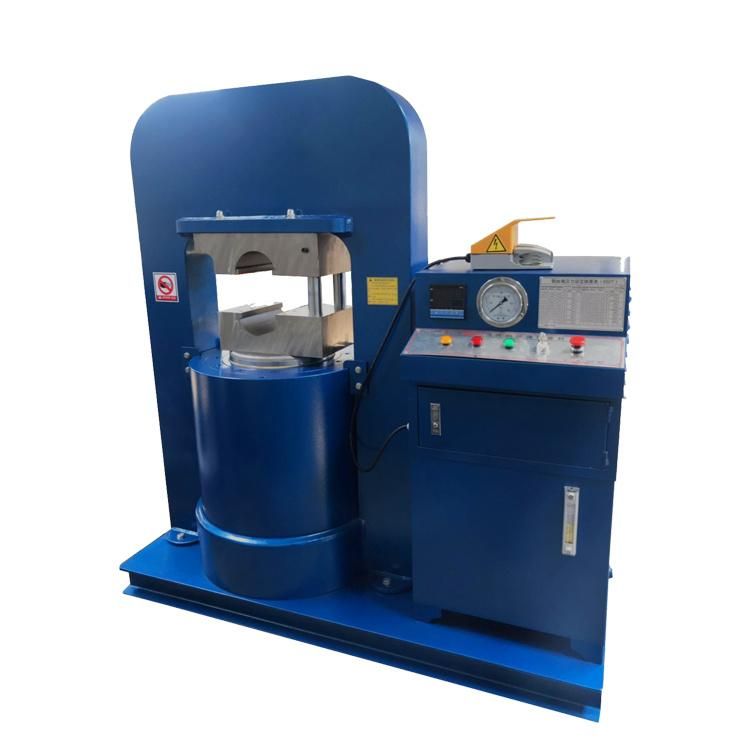

High Capacity Wire Sling Forming Machine
BOBO Machine Co., Ltd.- Forging Forming Method：Mold Forging
- Condition：New
- Mould：Customized
- Hydraulic Press：up to 28MPa, Adjustable
- Driven Power：Hydraulic
- Press Capacity：8000kn
Base Info
- Model NO.：BO-800
- Net Weight：5400kg
- Guarantee Period：1 Year
- Voltage：380V or Customized
- Dimension：2000X1000X2000mm
- Item：Wire Sling Forming Machine
- Transport Package：Wooden Package
- Specification：GB
- Trademark：BOBO
- Origin：China
- Production Capacity：12 Sets,Quarter
Description
Basic Info.
Model NO. BO-800 Net Weight 5400kg Guarantee Period 1 Year Voltage 380V or Customized Dimension 2000X1000X2000mm Item Wire Sling Forming Machine Transport Package Wooden Package Specification GB Trademark BOBO Origin China Production Capacity 12 Sets/QuarterProduct Description

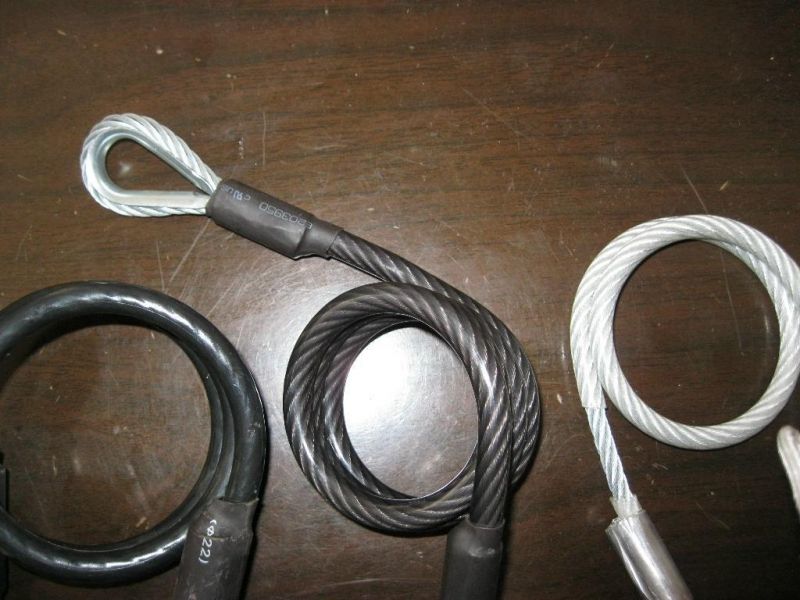

High capacity wire sling forming machineHigh capacity wire sling forming machine is widely used in oil fields, ports, railways, construction and other related fields. The finished lock has stable tension, heavy loading capacity feature.
Feature of wire sling forming machine
- Light weight
- Quick installation
- Adjustable piston stroke
- High technology and strength
Main technical data of wire sling forming machine
| 1 | Model | BO-800 |
| 2 | Max, capacity | 8000KN |
| 3 | Max. wire rope diameter | 42 / 52mm |
| 4 | Max. working pressure | 28MPa |
| 5 | Max. piston stroke | 180mm |
| 6 | Work speed | 5mm/s up and 8mm/s down |
| 7 | Motor capacity | 15kw |
| 8 | Dimension | 2000x1000x2000mm |
| 9 | Weight | 5400KG |
