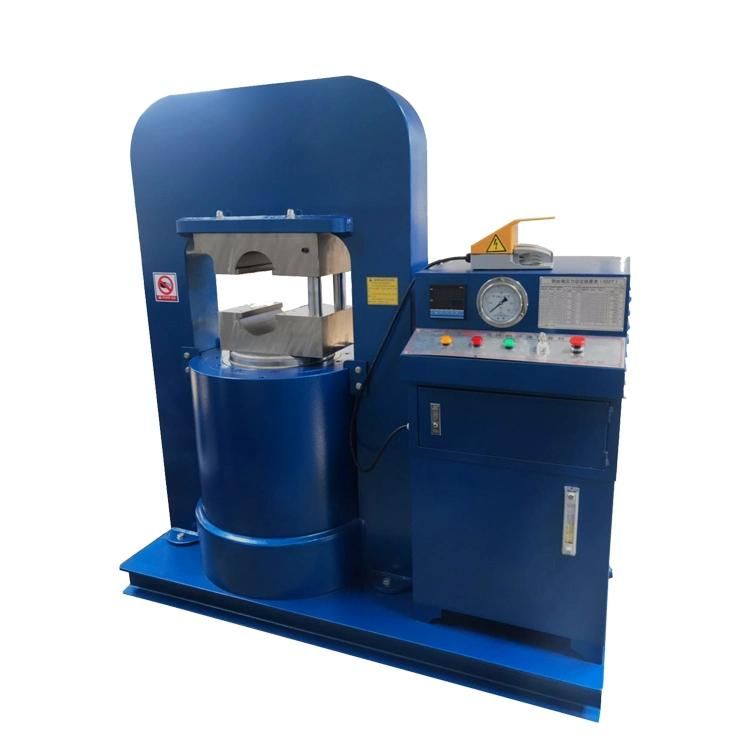

350ton Hydraulic Wire Press Machine
BOBO Machine Co., Ltd.- Forging Forming Method：Mold Forging
- Condition：New
- Mould：Customized
- Work Speed：4.8mm,S up and 7.8mm,S Down
- Driven Power：Hydraulic
- Press Capacity：3500 Kn
Base Info
- Model NO.：BO-350
- Net Weight：1000kg
- Guarantee Period：1 Year
- Voltage：380V or Customized
- Dimension：1600X680X1800mm
- Item：Wire Press Machine
- Transport Package：Wooden Package
- Specification：GB
- Trademark：BOBO
- Origin：China
- Production Capacity：16 Sets,Quarter
Description
Basic Info.
Model NO. BO-350 Net Weight 1000kg Guarantee Period 1 Year Voltage 380V or Customized Dimension 1600X680X1800mm Item Wire Press Machine Transport Package Wooden Package Specification GB Trademark BOBO Origin China Production Capacity 16 Sets/QuarterProduct Description

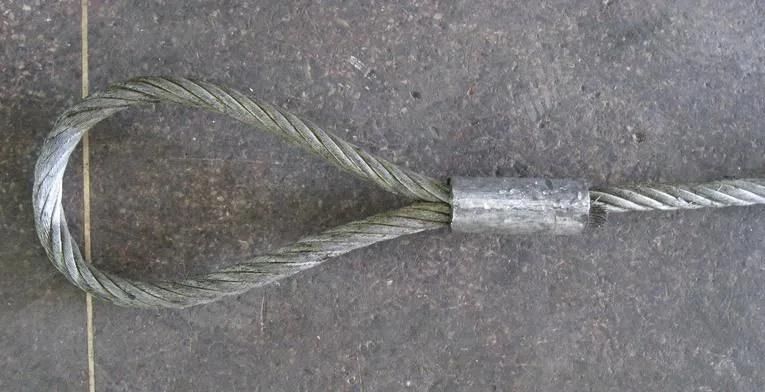

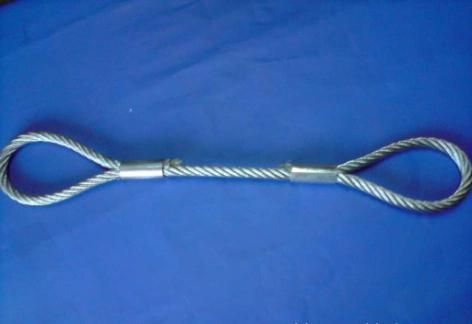

350Ton hydraulic wire press machine350Ton hydraulic wire press machine(BO-350)) is widely used in oil fields, ports, railways, construction and other related fields. The finished lock has stable tension, heavy loading capacity feature.
Feature of wire press machine
- Light weight
- Quick installation
- Adjustable piston stroke
- High technology and strength
Main technical data of wire press machine
| 1 | Model | BO-350 |
| 2 | Max.press power | 3500KN |
| 3 | Max. wire rope diameter | 26 / 34mm |
| 4 | Max. working pressure | 28MPa |
| 5 | Max. piston stroke | 80mm |
| 6 | Work speed | 4.8mm/s up and 7.8mm/s down |
| 7 | Motor capacity | 5.5kw |
| 8 | Dimension | 1200x650x1250mm |
| 9 | Net Weight | 1000kg |
