Stable Quality Wire Rope Swaging Press
BOBO Machine Co., Ltd.- Forging Forming Method：Mold Forging
- Condition：New
- Mould：Blue or Customized
- Work Speed：8mm,S up and 10mm,S Down
- Material：Forging Steel
- Press Capacity：100ton
Base Info
- Model NO.：BO-100
- Net Weight：900kg
- Guarantee Period：12 Months
- Voltage：380V or Customized
- Dimension：1200X550X1150mm
- Item：Wire Rope Swaging Press
- Transport Package：Wooden Package
- Specification：GB
- Trademark：BOBO
- Origin：China
- Production Capacity：10 Sets,Quarter
Description
Basic Info.
Model NO. BO-100 Net Weight 900kg Guarantee Period 12 Months Voltage 380V or Customized Dimension 1200X550X1150mm Item Wire Rope Swaging Press Transport Package Wooden Package Specification GB Trademark BOBO Origin China Production Capacity 10 Sets/QuarterProduct Description

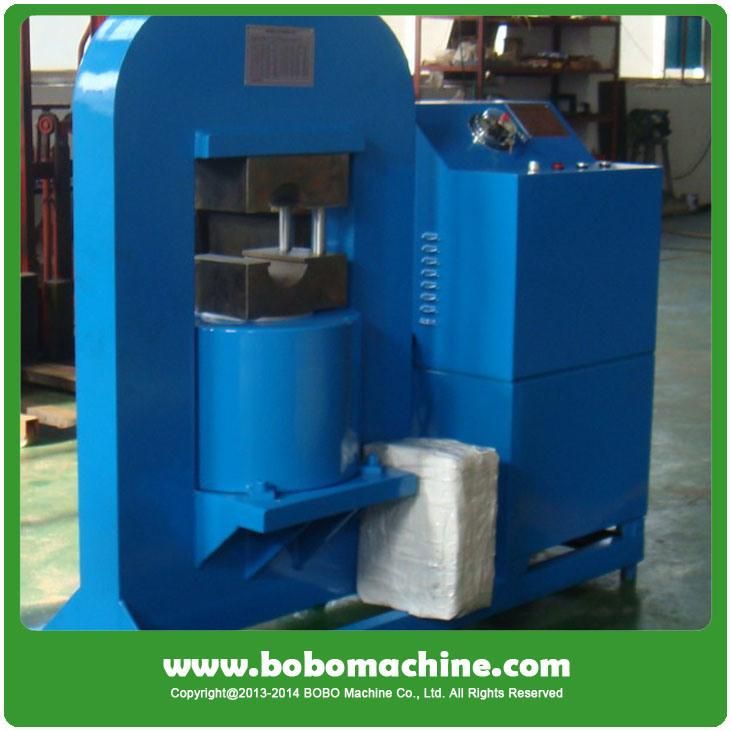

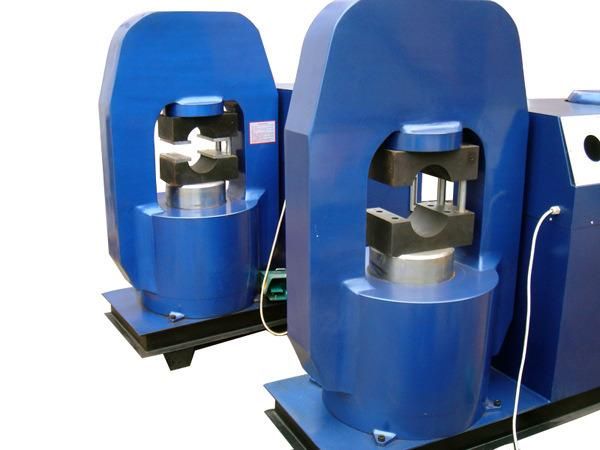

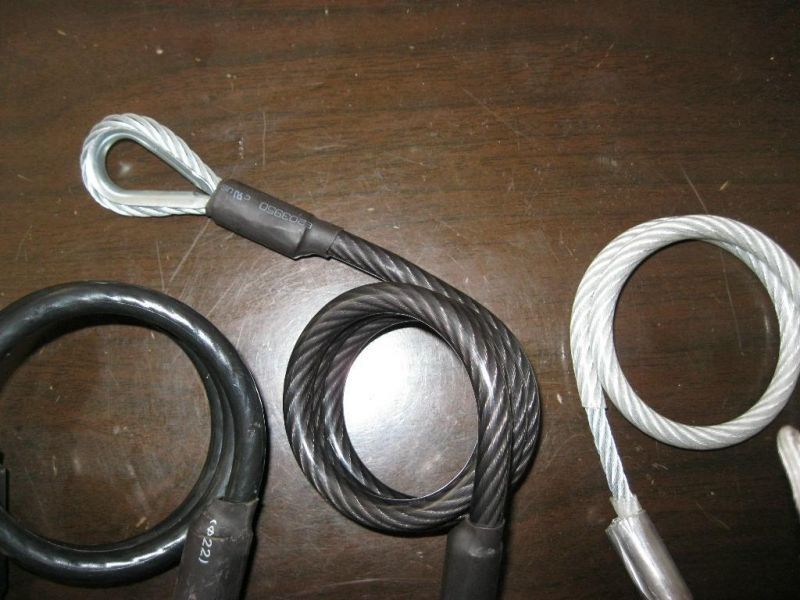

Stable quality wire rope swaging press(BO-100)Stable quality wire rope swaging press is widely used in oil fields, ports, railways, construction and other related fields. The finished lock has stable tension, heavy loading capacity feature.
Feature of wire rope swaging press
- Light weight
- Quick installation
- Adjustable piston stroke
- High technology and strength
Main technical data of wire rope swaging press
| 1 | Model | BO-100 |
| 2 | Max, capacity | 1000KN |
| 3 | Max. wire rope diameter | 13/15mm |
| 4 | Max. working pressure | 28MPa |
| 5 | Max. piston stroke | 78mm |
| 6 | Work speed | 8mm/s up and 10mm/s down |
| 7 | Motor capacity | 4kw |
| 8 | Dimension | 1200x550x1150mm |
| 9 | Net Weight | 900KG |
