Hydraulic Automatic Wire Rope Press Machine
BOBO Machine Co., Ltd.- Forging Forming Method：Mold Forging
- Certification：CE
- Condition：New
- Mould：Customized
- Work Speed：4.5mm,S up and 8mm,S Down
- Driven Power：Hydraulic
Base Info
- Model NO.：BO-500
- Press Capacity：5000 Kn
- Net Weight：3000kg
- Voltage：380V or Customized
- Dimension：1600X680X1800mm
- Item：Wire Rope Press
- Transport Package：Wooden Package
- Specification：GB
- Trademark：BOBO
- Origin：China
- Production Capacity：16 Sets,Quarter
Description
Basic Info.
Model NO. BO-500 Press Capacity 5000 Kn Net Weight 3000kg Voltage 380V or Customized Dimension 1600X680X1800mm Item Wire Rope Press Transport Package Wooden Package Specification GB Trademark BOBO Origin China Production Capacity 16 Sets/QuarterProduct Description

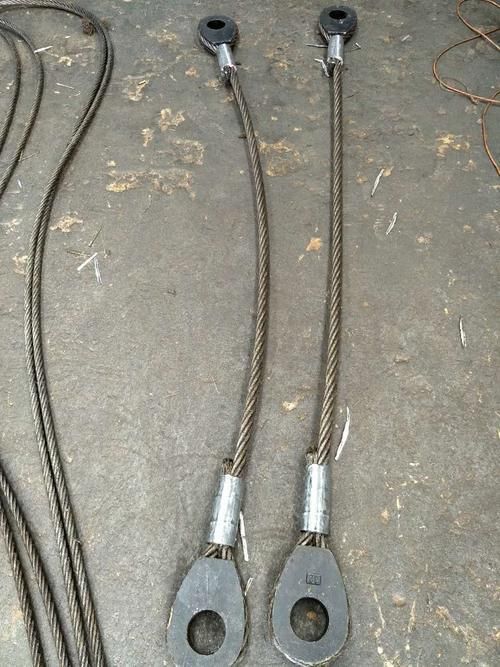

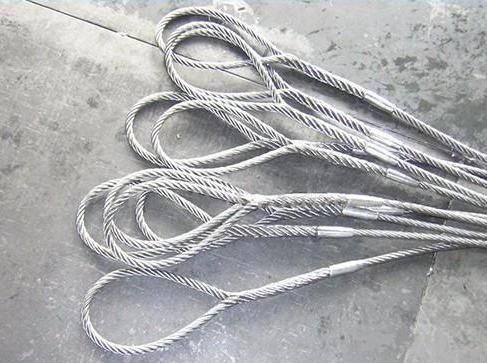

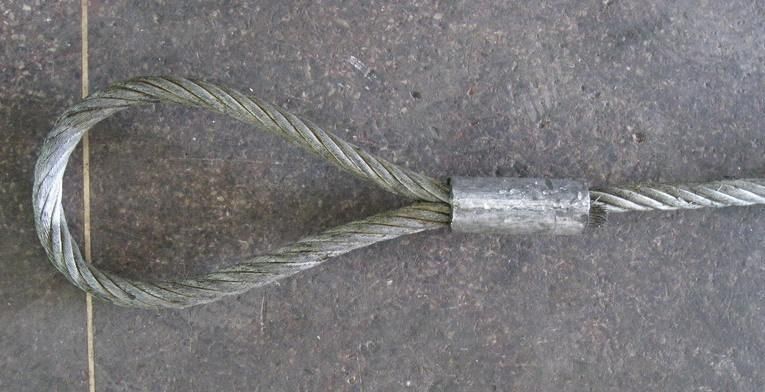

Hydraulic automatic wire rope press machine(BO-500)Hydraulic automatic wire rope press machine(BO-500) is widely used in oil fields, ports, railways, construction and other related fields. The finished lock has stable tension, heavy loading capacity feature.
Feature of wire rope press
Cylinder embedded design

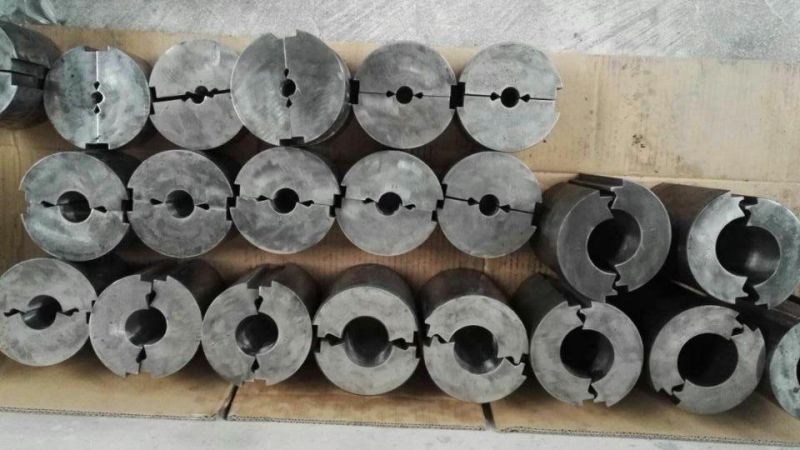

Round independent mold
- Adjustable piston stroke
- High technology and strength
Main technical data of wire rope press
| 1 | Model | BO-500 |
| 2 | Max.press power | 5000KN |
| 3 | Max. wire rope diameter | 32/ 42mm |
| 4 | Max. working pressure | 28MPa |
| 5 | Max. piston stroke | 120mm |
| 6 | Work speed | 4.5mm/s up and 8mm/s down |
| 7 | Motor capacity | 11kw |
| 8 | Dimension | 1600x680x1800mm |
| 9 | Net Weight | 3000kg |
