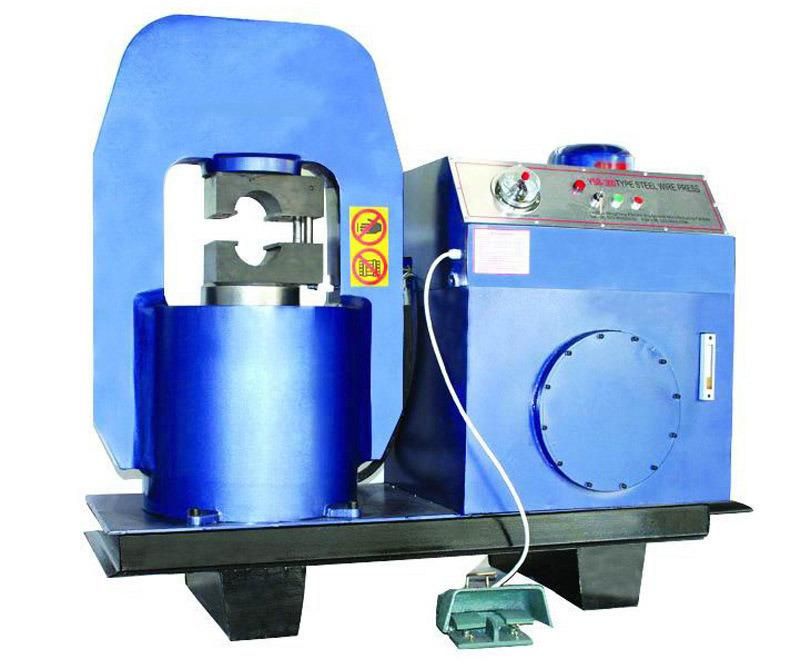

Hydraulic Steel Wire Rope Swaging Splicing Sling Pressed Making Machine
BOBO Machine Co., Ltd.- Forging Forming Method：Mold Forging
- Condition：New
- Mould：Customized
- Work Speed：4.5mm,S up and 6.5mm,S Down
- Power：16kw
- Press Capacity：15000kn
Base Info
- Model NO.：BO-1500
- Net Weight：10 Tons
- Guarantee Period：12 Months
- Voltage：380V or Customized
- Dimension：1800X900X1800mm
- Item：Wire Rope Ferrule Press
- Transport Package：Wooden Package
- Specification：GB
- Trademark：BOBO
- Origin：China
- Production Capacity：10 Sets,Quarter
Description
Basic Info.
Model NO. BO-1500 Net Weight 10 Tons Guarantee Period 12 Months Voltage 380V or Customized Dimension 1800X900X1800mm Item Wire Rope Ferrule Press Transport Package Wooden Package Specification GB Trademark BOBO Origin China Production Capacity 10 Sets/QuarterProduct Description

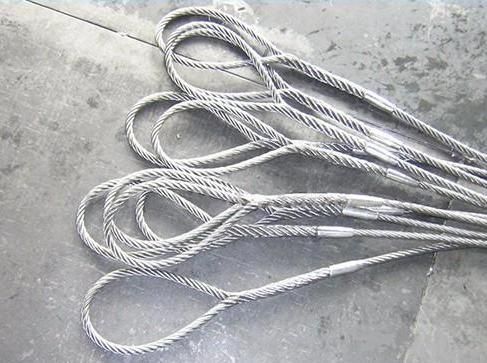

Hydraulic steel wire rope swaging splicing sling pressed making machineHydraulic steel wire rope swaging splicing sling pressed making machine is widely used in oil fields, ports, railways, construction and other related fields. The finished lock has stable tension, heavy loading capacity feature.
Feature of wire rope ferrule press
- Light weight
- Quick installation
- Adjustable piston stroke
- High technology and strength
Main technical data of wire rope ferrule press
| 1 | Model | BO-1500 |
| 2 | Max.press power | 15000KN |
| 3 | Max. wire rope diameter | 56 / 65mm |
| 4 | Max. working pressure | 58MPa |
| 5 | Max. piston stroke | 220mm |
| 6 | Work speed | 4.5mm/s up and 6.5mm/s down |
| 7 | Motor capacity | 16kw |
| 8 | Dimension | 1800x900x1800mm |
| 9 | Net Weight | 10 tons |
