• Model NO.：CY-1100X-SPC12
• Sealing Flange：Stainless Steel
• Control Panel：Touch Screen
• Sputtering Distance：Adjustable
• Name：Compact Mini Sputter Coater
• Transport Package：Wooden Box
• Specification：dia. 40mm
• Trademark：CY
• Origin：Zhengzhou, China
• HS Code：8543709990
• Production Capacity：210 Sets Per Month

Basic Info.

Model NO. CY-1100X-SPC12 Sealing Flange Stainless Steel Control Panel Touch Screen Sputtering Distance Adjustable Name Compact Mini Sputter Coater Transport Package Wooden Box Specification dia. 40mm Trademark CY Origin Zhengzhou, China HS Code 8543709990 Production Capacity 210 Sets Per Month

Product Description

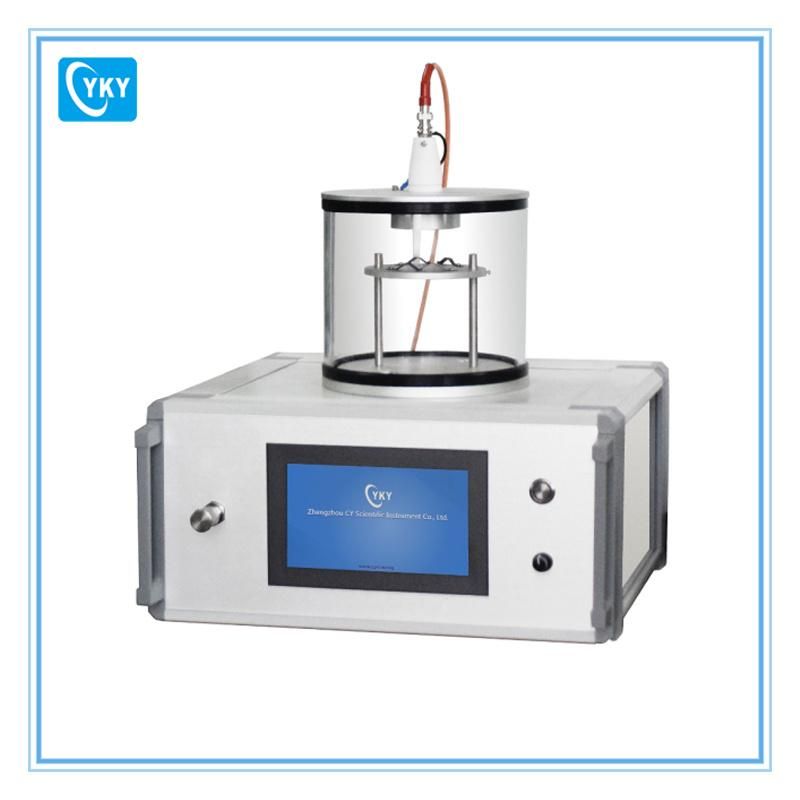

Compact Mini Plasma Sputtering Coater Designed for coating gold, chrome and black oxide
Brief introduction:
CY-1100X-SPC12 is a compact plasma sputtering coater designed for making metallic coatings, such as gold, platinum, Indium and silver etc. Especially for coating conductive gold film for SEM sample. The plasma sputtering coater is shipped with all necessary accessories for immediate use, including one sputtering head with vacuum pump, stainless steel bellows and quick clamps.
Specification


Input Power	Single phase 208 - 240h VAC, 50 / 60 Hz < 1000 W (including vacuum pump)
Vacuum Chamber	Vacuum chamber: 100 mm ID x 130 mm H, made of quartz  glass Sealing flange made of stainless steel Needle valve on front panel for gas flow control
Sample Stage	Stage size: 40 mm Dia. Sputtering distance range: 15 - 80 mm adjustable
Control Panel	Vacuum gauge and sputtering current meter for monitoring deposition Needle valve on front panel for gas flow control Sputtering timer: 0 - 110 s adjustable
Vacuum Pump	The followings are included:  1) 156 L/m Double Stage Rotary Vane Vacuum Pump with vapor trap (Max vacuum 1.0E-2Torr) 2) Stainless steel bellows with KF16 adapter and quick clamps
Sputtering Targets	Target size requirements: 57 mm Dia. x 0.5 mm max
Compliance	CE approval
Warranty	One year limited warranty with lifetime support
