New Design Desktop Large Automatic Vacuum Spin Coater
Zhengzhou CY Scientific Instrument Co., Ltd.- Type:Coating Spray Gun
- Coating:Vacuum Coating
- Substrate:Aluminum
- Certification:CE, TUV
- Condition:New
- Max Spin Speed:10,000 Rpm
Base Info
- Model NO.:CY-SP-I8
- Speed Resolution:+,-1 Rpm
- Max. Spin Time:3000s
- Time Resolution:1 S
- Max Ramp Rate:5000 Rpm,S
- Warranty:One Year
- Transport Package:Wooden Box
- Specification:8 inch
- Trademark:CY
- Origin:Zhengzhou, China
- HS Code:8486109000
- Production Capacity:210 Sets Per Month
Description
Basic Info.
Model NO. CY-SP-I8 Speed Resolution +/-1 Rpm Max. Spin Time 3000s Time Resolution 1 S Max Ramp Rate 5000 Rpm/S Warranty One Year Transport Package Wooden Box Specification 8 inch Trademark CY Origin Zhengzhou, China HS Code 8486109000 Production Capacity 210 Sets Per MonthProduct Description

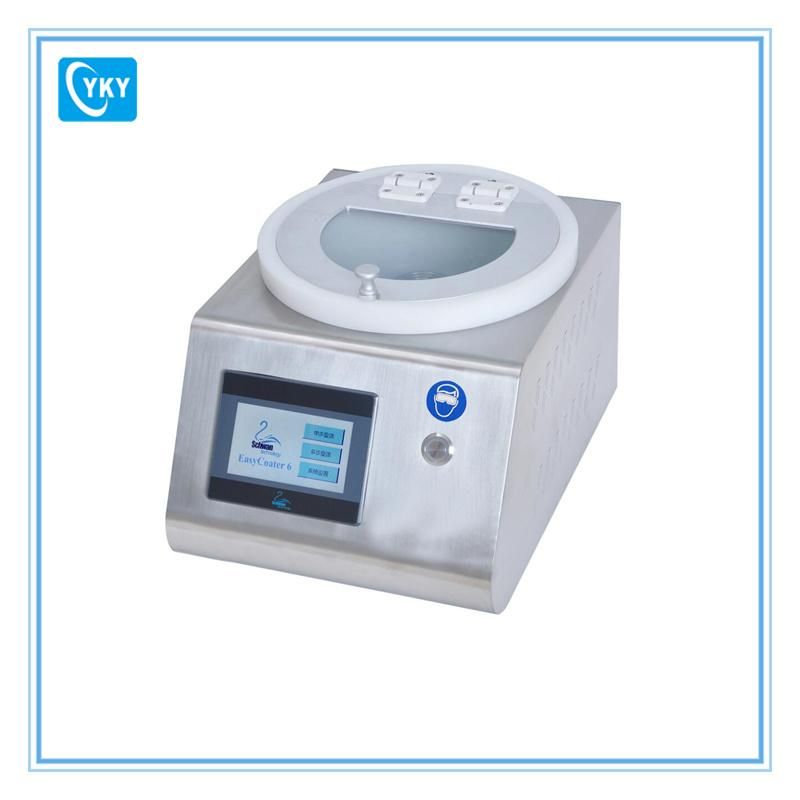

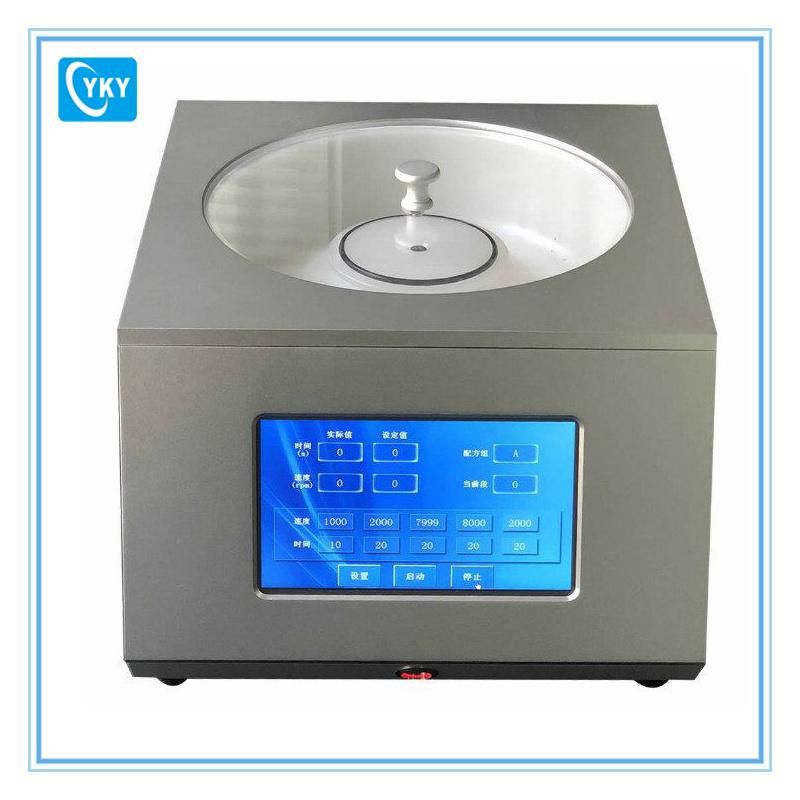

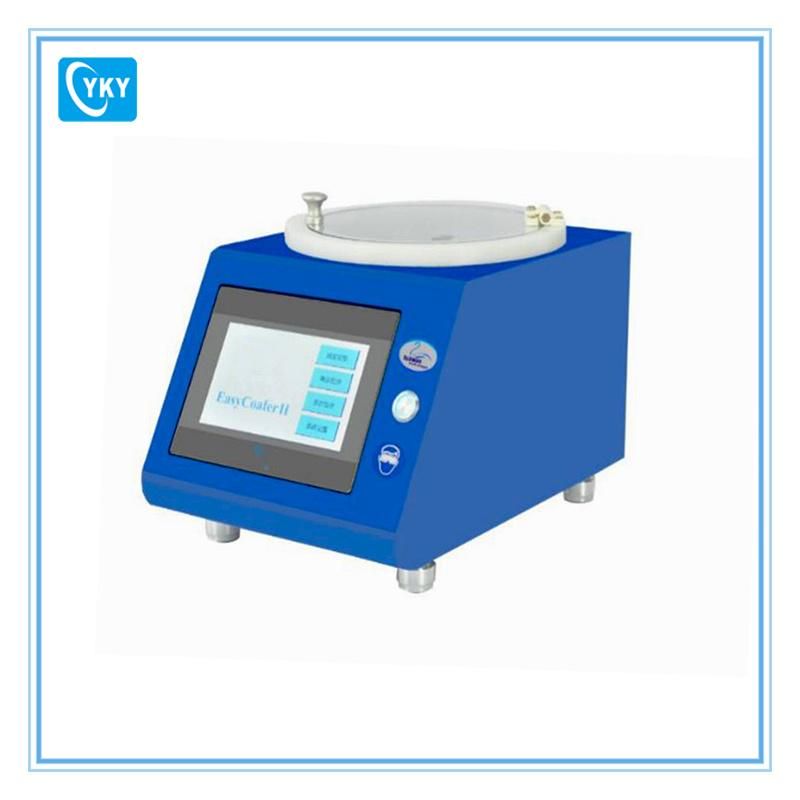

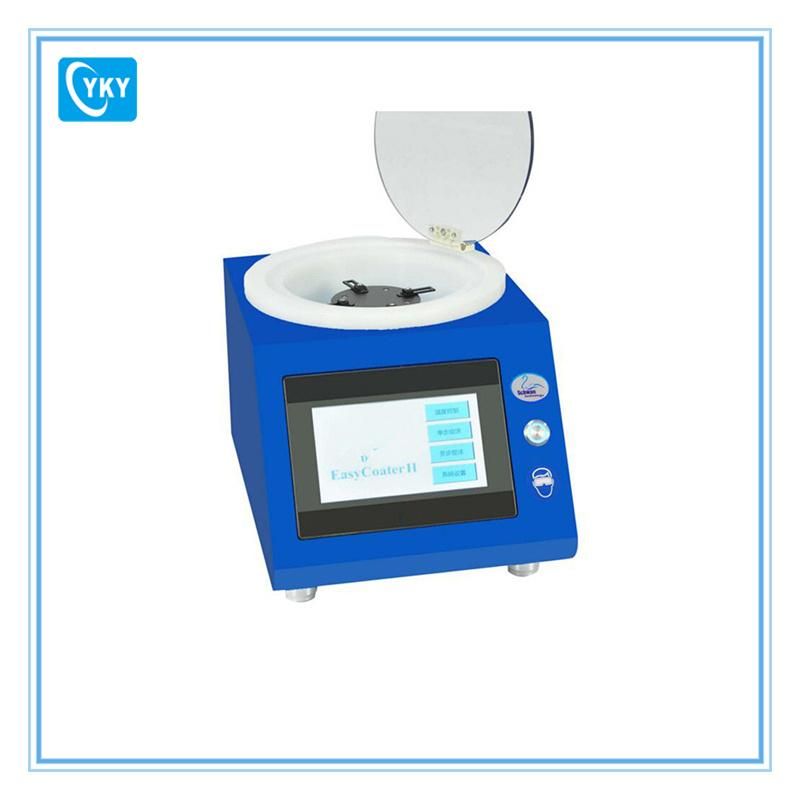

CY New Design Desktop Vacuum Spin Coating machine/spin coater support 8 inches wafer CY-SP-I8Brief Introduction of large automatic spin coater
Economical Vacuum Bench Top Spin Coating Machine is a procedure used to deposit uniform
thin films to flat substrates. Usually a small amount of coating material is applied on the center
of the substrate, which is either spinning at low speed or not spinning at all. The substrate is then
rotated at high speed in order to spread the coating material by centrifugal force. A machine used
for spin coating is called a spin coater.
CY-SC-I8 spin coater is a high performance compact spin coater. It is designed for high uniformity
thin material coatings. The upgraded program can store up to five program/ recipes and each recipe
could be edited with five spin steps.
Technical parameter of large automatic spin coater
Model | CY-SP-I8 |
Max Spin Speed | 10,000 RPM |
Speed Resolution | ±1% rpm |
Max Spin Time | 3,000 S |
Time Resolution | 1 S |

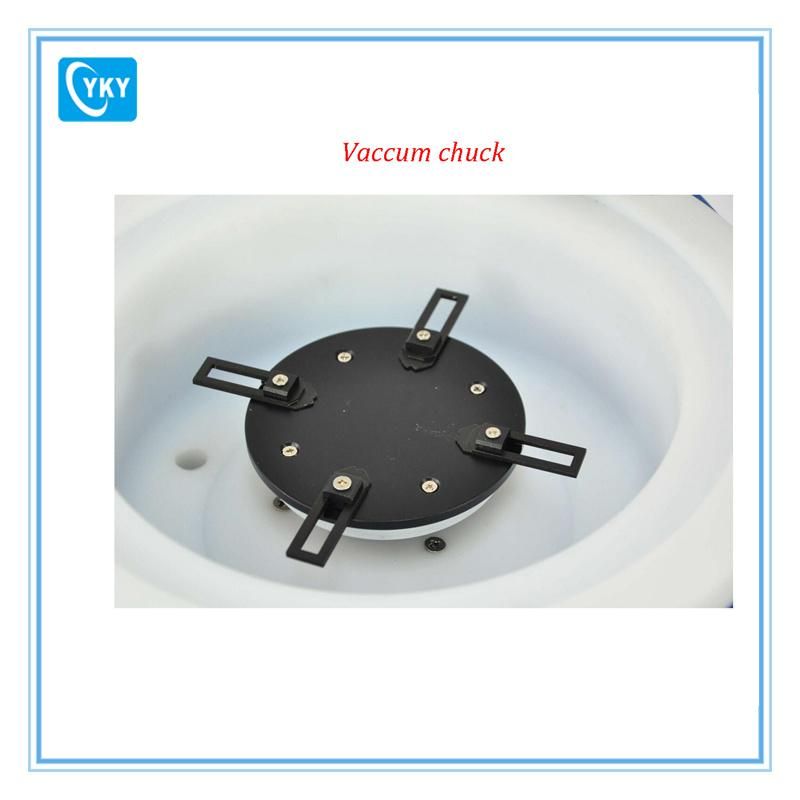

Chuck diameter | 8 inches (or according to customer's requirement) |
Max Ramp Rate | 5000 RPM/S |
Dimensions | 290 mm (W) x 335mm (D) x 215mm (H) |
Weight | 15 Kg |
Power | 100-120V, single Phase,200W(110V) 200-230V, single Phase,200W(220V) |
Required Vacuum | 0.06-0.09Mpa,Minimum 15L/Min flow rate |
Vacuum Tubing | 4mm ID, 6mm OD |
Fuse | 2 A(installed) |
Warranty | One year |
