• Model NO.：ZYYX Series
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Brand Name：Zhongyuan
• Model Number：Zysp950
• Total Length：105m
• Certificate：SGS, BV, CE, ISO
• Total Power：About 100kw

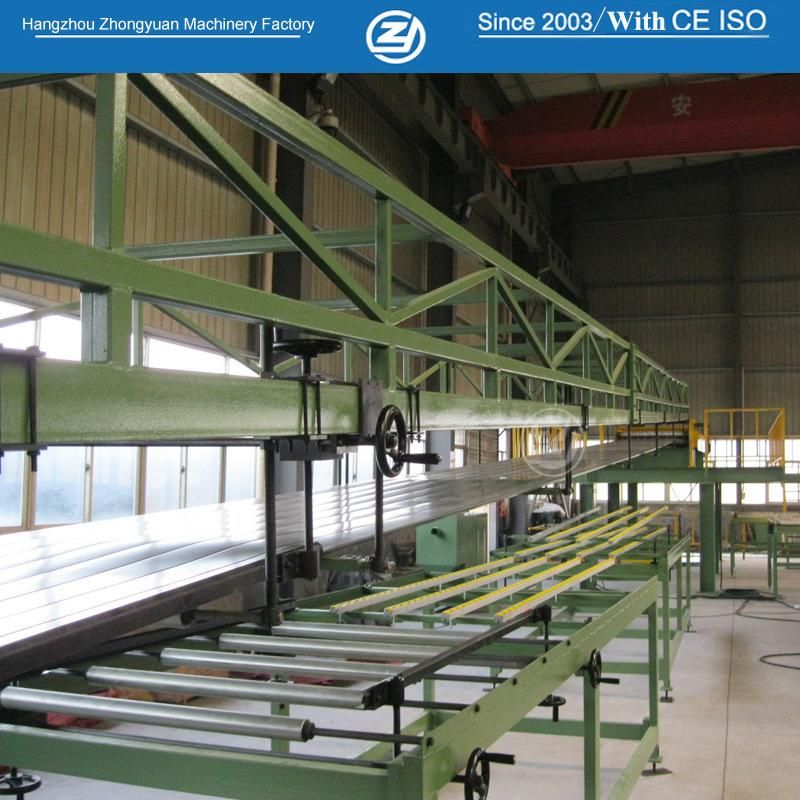

• Double Belt Conveyor：23m
• Control Model：Misubishi PLC
• Working Speed：Max.8m,Min (Adjustable)
• Stacking Height：1000mm
• Guarantee Time：First Year Free, Lifetime Services
• Transport Package：About 10*40ft Containers
• Specification：CE SGS BV
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：4 Sets,Year

ItemSpecificationRaw MaterialTypeColor steel coilThickness(mm)0.4-0.7Yield strength(mpa)235-345Max. Width1250Sandwich Panel Panel width 950-1000mm (according to profile requirement)Mini thickness40mm (corrugated sandwich panel)
50mm (wall panel)Max. Thickness150mm (corrugated sandwich panel)

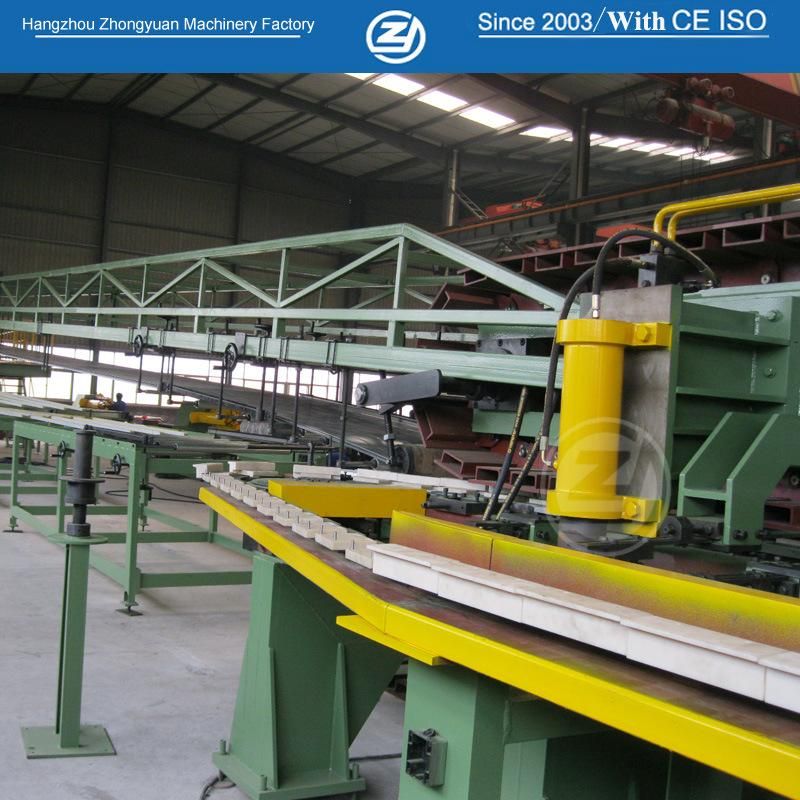

200mm (wall panel)Min. cutting length3 m Max. Stacking length15mWorking height  1000mm (height of panel coming out)PU forming densityAbout 40 kg/m3Pressure for foaming 150-200 barEffective length of double belt conveyor23mRoller material45# steel , coated with ChromeShaft for rollers Solid shaft with 72mm,processed with cylindrical grinderForming speed(m/min)3-8m/min (adjustable)Speed adjusting modeMisubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steelLength measurementNemicon EncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenTotal power(kw)About 100KW

Components of machineComponentsQTY.Hydraulic Uncoiller2set Platform for forming machine1set  Roll Forming System2set  Foaming system1setDouble Belt Laminator1setCutting System1set  Stacking system1set
1. Manufacturing roll forming machine since 2003
2. With ISO, SGS, BV and CE certificate
3.  First year free, lifetime services
4. Export to more than 20 countries.
5. Product cut-to-length.
6.Technician overseas installing and training available





Why us?
1.  Customize roll forming machines since 2003.
2.  Capacity: 12-15 sets/month
3.  Delivery: in only 5-8 weeks for urgent order
4.  Company occupies 6650, in which 5650 for workshops
5.  Have our own tool center. 12 sets CNC machines.
6. Zhongyuan is a "All-in-house source"
   --from raw material to the final high-precision forming machine. We have our precise tooling center.



Get Free:
profile drawing & machine design technical support by our 15 year experience technicians!
