• Model NO.：CY-SP-I8
• Speed Resolution：+,-1% Rpm
• Max Spin Time：3000s
• Time Resolution：1s
• Max Ramp Rate：5000 Rpm,S
• Fuse：2A
• Warranty：One Year
• Certificate：Ce,TUV
• Transport Package：Wooden Box
• Specification：8 inches
• Trademark：CY
• Origin：Zhengzhou, China
• HS Code：8486109000
• Production Capacity：210 Sets Per Month

Basic Info.

Model NO. CY-SP-I8 Speed Resolution +/-1% Rpm Max Spin Time 3000s Time Resolution 1s Max Ramp Rate 5000 Rpm/S Fuse 2A Warranty One Year Certificate Ce/TUV Transport Package Wooden Box Specification 8 inches Trademark CY Origin Zhengzhou, China HS Code 8486109000 Production Capacity 210 Sets Per Month

Product Description

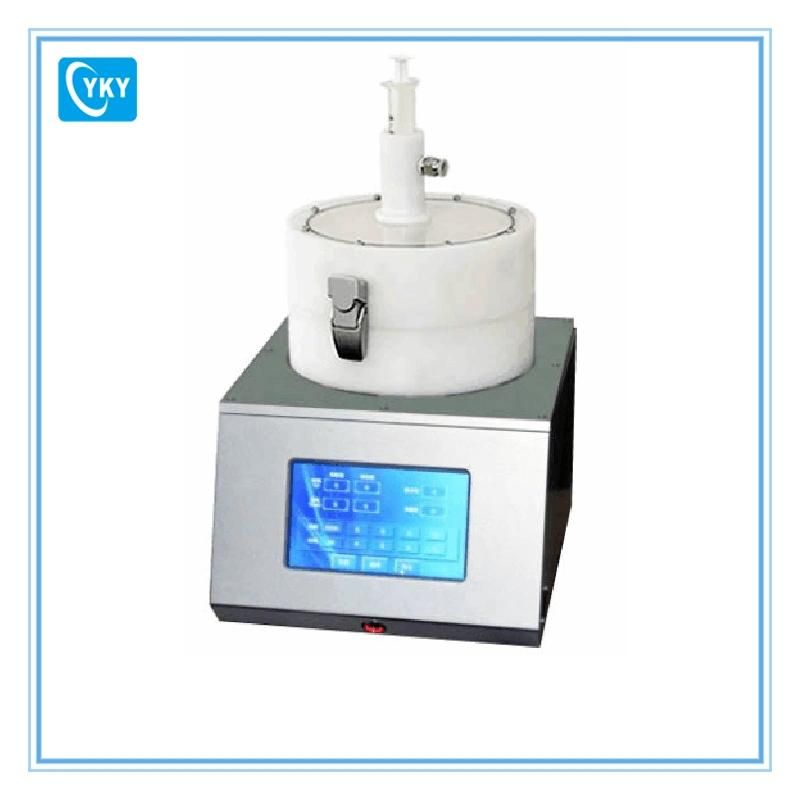

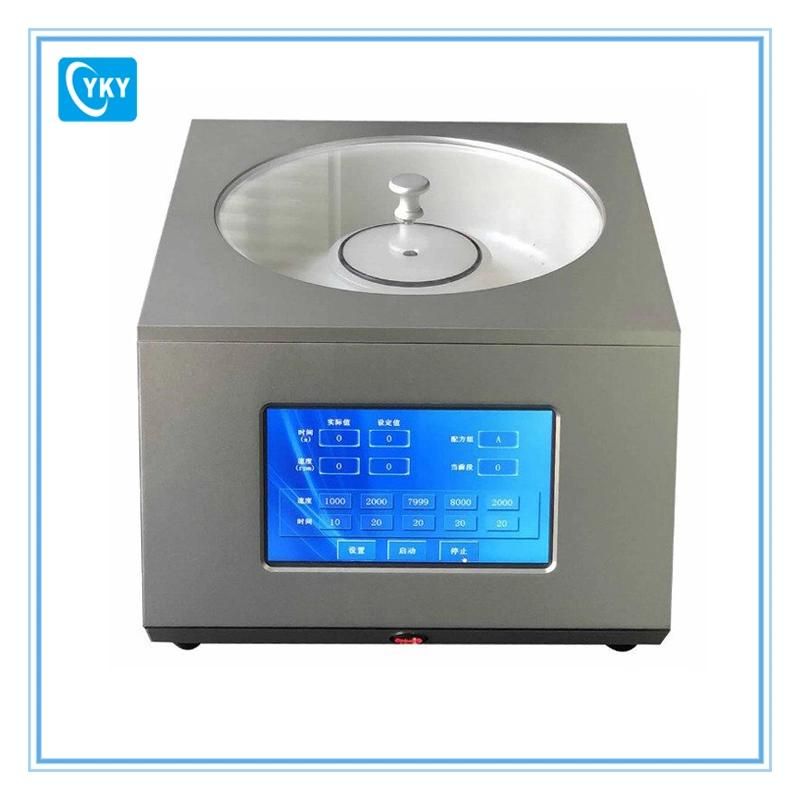

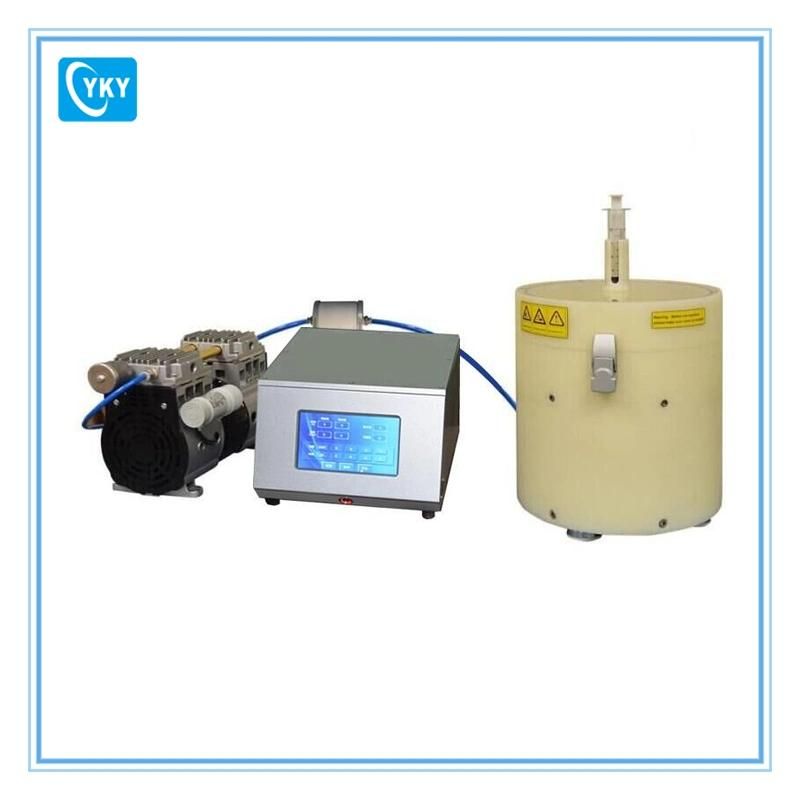

Automatic Vacuum Bench Top Spin Coater Support 8 inches Wafer with Touch Screen for Semiconductor CY-SP-I8
Brief Introduction
Economical Vacuum Bench Top Spin Coating Machine is a procedure used to deposit uniform thin films to flat substrates. Usually a small amount of coating material is applied on the center of the substrate, which is either spinning at low speed or not spinning at all. The substrate is then rotated at high speed in order to spread the coating material by centrifugal force. A machine used for spin coating is called a spin coater.
CY-SC-I8 spin coater is a high performance compact spin coater. It is designed for high uniformity thin material coatings. The upgraded program can store up to five program/ recipes and each recipe could be edited with five spin steps.


Model	CY-SP-I8
Max Spin Speed	10,000 RPM
Speed Resolution	±1% rpm
Max Spin Time	3,000 S
Time Resolution	1 S
Chuck diameter	8 inches (or according to customer's requirement)
Max Ramp Rate	5000 RPM/S
Dimensions	290 mm (W) x 335mm (D) x 215mm (H)
Weight	15 Kg
Power	100-120V, single Phase,200W(110V) 200-230V, single Phase,200W(220V)
Required Vacuum	0.06-0.09Mpa,Minimum 15L/Min flow rate
Vacuum Tubing	4mm ID, 6mm OD
Fuse	2 A(installed)
Warranty	One year
