• Model NO.：DX720
• Customized：Customized
• Advantage：Work Flexible
• Condition：New
• Name：Floor Decking Roll Forming Machine
• Use：Floor
• Power(W)：15kw
• Voltage：380V or According to Customer Rquest
• Dimension(L*W*H)：9.5*1.5*1.4m
• Weight：About 10 Tons
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Roller Station：24
• Machine Stand：400h
• Shaft：90mm
• Thickness：0.8-1.5mm
• Transport Package：1. Main Body Is Nude; 2. Covered with Simple Plast
• Specification：CE ISO BV
• Trademark：DIXIN
• Origin：Botou Hebei China
• HS Code：84552210
• Production Capacity：40 Set Per Year

manual decoiler
manual expanding,passive uncoil
inner diameter 460-560mm
outer diameter1400mm
weight capacity od decoiler10 tonstype of forming machinewallboard type with chain transmissiondiameter of shaft80 mmmaterial of shafthigh-grade 45 # steelchain20Amotor power of forming machine11 KW*2forming speed10-15m/minroll station24 stationsmaterial of rollerhigh-grade 45#steel,coated with chrome 0.05 mm thicknessmotor of hydraulic station3KWhydraulic oil pumpCB-E314type of cuttinghydraulic cuttingmaterial of cutting blade
HRC58°-60°
thickness of steel coil0.6-1.2mmtolerance of length10±2mmcomputer operating boardtouch screenvoltage380 V 3 phase 50 HZ or up to you

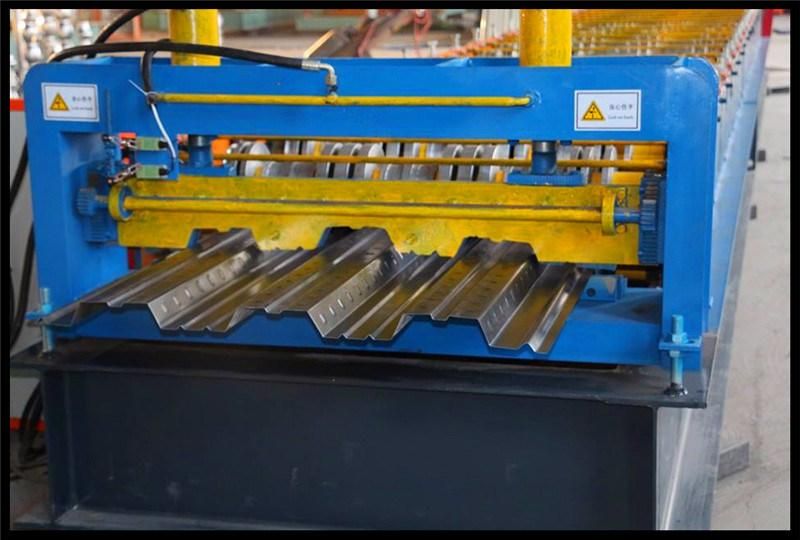

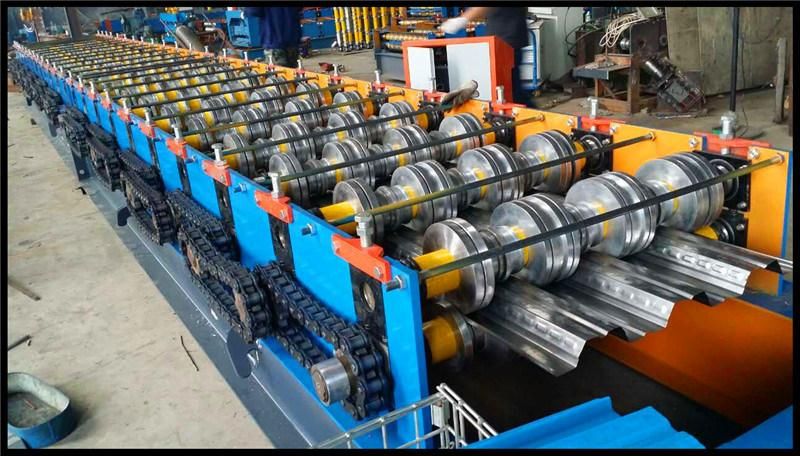

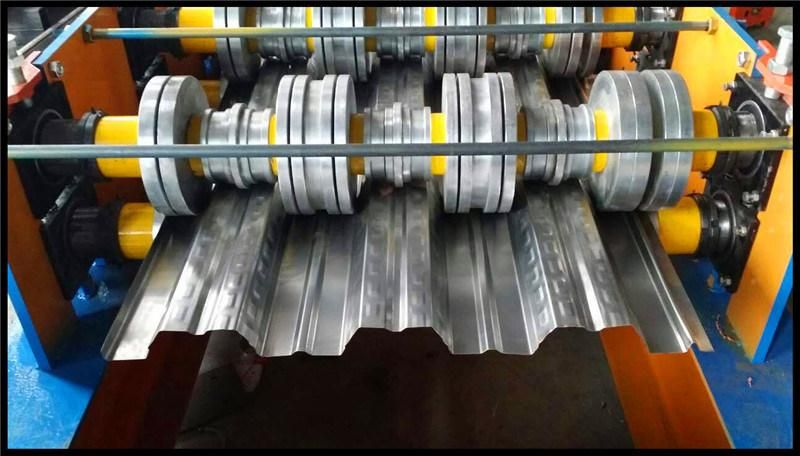

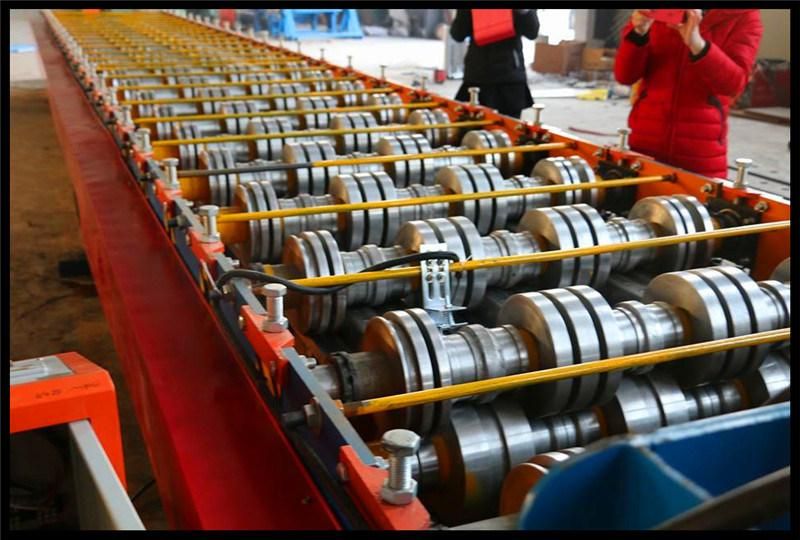

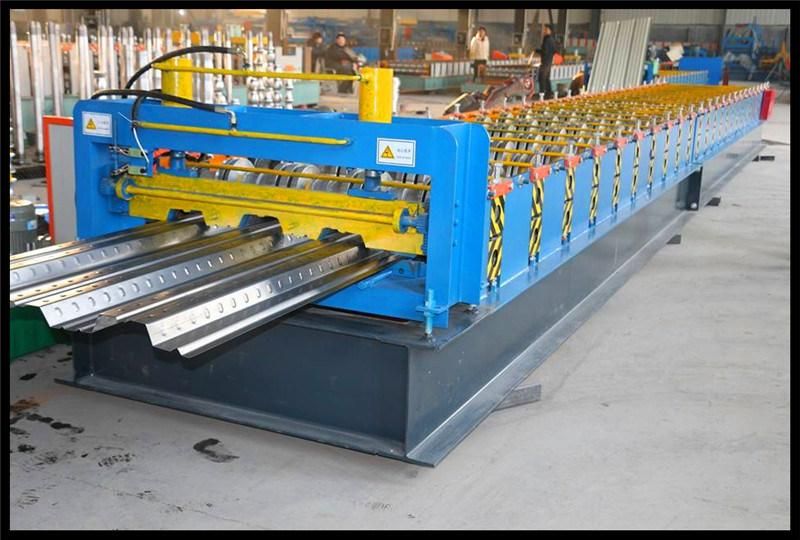

 Similar Machine Picture ( picture is just for your reference)
