• Model NO.：HSD-50
• Warranty：12 Months
• Customized：Customized
• Advantage：Work Flexible
• Condition：New
• Motor Power：3kw
• Max Output：100PCS,Min
• Weight：1100kg
• Rivet Contact Head Diameter：2.5-10mm
• Shank Diameter：1.2-4mm
• Transport Package：Seaworthy
• Specification：CE
• Trademark：HSD
• Origin：China
• HS Code：846090090
• Production Capacity：400set Per Year

Basic Info.

Model NO. HSD-50 Warranty 12 Months Customized Customized Advantage Work Flexible Condition New Motor Power 3kw Max Output 100PCS/Min Weight 1100kg Rivet Contact Head Diameter 2.5-10mm Shank Diameter 1.2-4mm Transport Package Seaworthy Specification CE Trademark HSD Origin China HS Code 846090090 Production Capacity 400set Per Year

Product Description

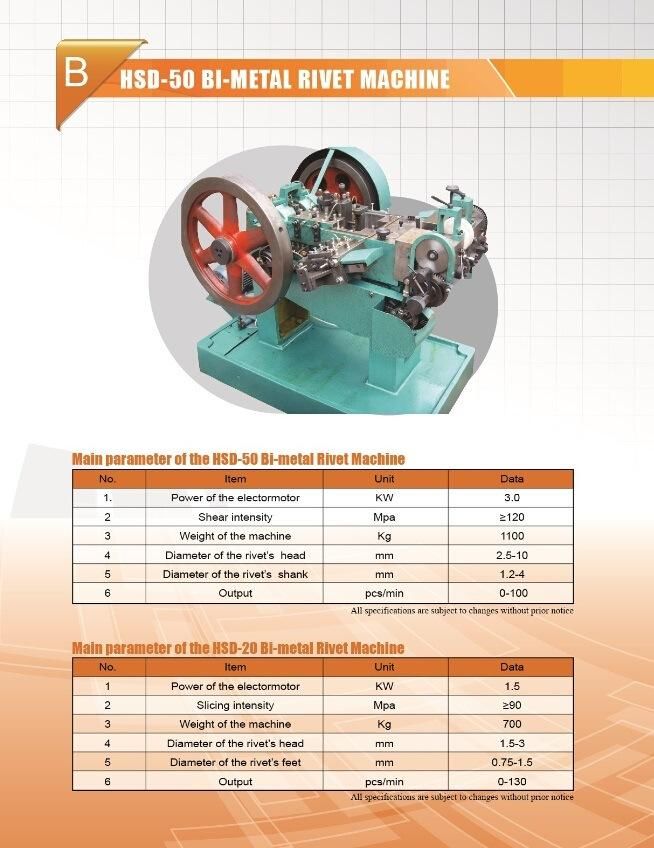

Rivets made by our machine




Specification



The machine can produce cold headed solid and bimetal contacts from a wide variety of materials.

Typical alloys include:
Silver
Fine grained silver
Silver-Nickel
Silver-Iron
Silver-Graphite
Silver-Cadmium Oxide
Silver-Tin Oxide
Gold
Platinum
Palladium

NO.	Item	Unit	Data
1	Power of the motor	KW	3.0
2	Shear intensity	Mpa	≥ 120
3	Weight of the machine	Kg	1100
4	Diameter of the rivet's head	mm	2.5-10
5	Diameter of the rivet's shank	mm	1.2-4
6	Diameter of the plate product	mm	3-7
7	Output	pcs /min	0-100

Package



Exhibitions in 2019




We can supply bi-metal and tri-metal rivet & contact making machine. If you have any question, pls feel free to contact me.
