• Model NO.：HJ-005
• Item：Steel Rolling Mill Equipemnt
• Warranty：1-3 Years
• Raw Material：Billets From 50*50 to 160*160
• Annual Capacity：100000tons to 600000tons
• Training：Providing by Seller
• Color：as Customers′ Reguirements
• Certificate：ISO9001:2000, BV and SGS.
• Condition：New
• Finished Products：Wire Rod, Rebar, Section Steel
• After-Sales Service Provided：Engineers Available to Service Overseas
• Transport Package：Seaworthy Packing or as Customers′request
• Specification：D285
• Trademark：Hangji
• Origin：Xi′an China
• HS Code：8455213000
• Production Capacity：100sets Per Year

Basic Info.

Model NO. HJ-005 Item Steel Rolling Mill Equipemnt Warranty 1-3 Years Raw Material Billets From 50*50 to 160*160 Annual Capacity 100000tons to 600000tons Training Providing by Seller Color as Customers′ Reguirements Certificate ISO9001:2000, BV and SGS. Condition New Finished Products Wire Rod, Rebar, Section Steel After-Sales Service Provided Engineers Available to Service Overseas Transport Package Seaworthy Packing or as Customers′request Specification D285 Trademark Hangji Origin Xi′an China HS Code 8455213000 Production Capacity 100sets Per Year

Product Description

Structural characteristics of finishing mill

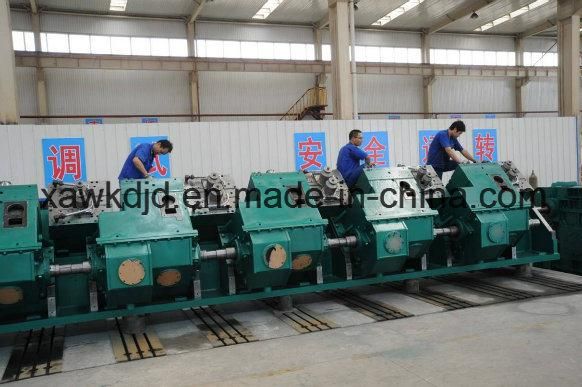

l Finishing mill unit is combined with ten mills, speed increasing box, support base, arc coupling, waterproof slot, waterproof plate, the protective cover, piping and guide of finishing mill. Mill frame is composed of three Æ200mills and seven Æ150 mills, frame use top crossed 45° composition form to achieve no twisting, no contact axis, little axis and shock for equipment, besides, it decrease the center of gravity height, the stability increased as well, in the mean time, the total weigh has decrease and it is easy to maintain. Ten frames are concentrated transmission.
l Roll frame is composed of roller box, bevel gearbox and spare parts of bevel gearbox.

l Roller box and bevel gearbox adopt outside combinational instruction, decrease the size of bevel gearbox to decrease the weight of finishing mill, decrease the space of mills to make their structure compact. Roller box used cantilever roll loop, there is eccentric locking collar in the box to adjust roll gap. Film bearing and roll shaft are inside eccentric locking collar , taper sleeve is used to fix roll loop which is in the end of roll shaft.

l Bevel gearbox is composed of box, transmission box, spiral bevel gear roll and synchronized gears. All gears are hardened grinding gear, geartooth correction is needed. The accuracy level of spiral bevel gearbox is six and round bevel gearbox is five to insure the smooth working of high speed.

l Roller box and bevel gearbox are connected by bolts, a part of roller box plug into the bevel gearbox to let two synchronized gears in bevel gearbox meshed. Roller box and bevel gearbox are fixed by two locating pin, the roller box with same specification can be changed.

l The axial force of the roll shaft beared by a pair of thrust ball bearings , this ball bearing mounted on the axial clearance in the absence of the resilient washer, because the very small axial clearance ball itself, therefore the roll shaft to accurately positioned in the axial direction, which ensures accurate roll rolling precision, which is to ensure the dimensional accuracy of the workpiece.
l The roller shaft near the film bearing is designed in the form with taper, so the roller shaft can bear uniform load distribution even it is bend. So the lifetime of roller can be improved.

l The adjustment of roll gap is to rotate feed screw with left and right thread and nut. When the two eccentric rotated relatively, the distance of two rollers changed with the symmetrical eccentric relative movement of eccentric locking collar, so the location of former roller line and guide can be maintain.
l Roller loop is tungsten carbide, it is connected on the cantilever roll shaft, we use the specific hydraulic changing roll equipment to replace roll loop, it is convenient and easy.

We provide:
1. Perfect rolling mill solutions including rolling passes design, production line setup, and workshop layout according to customer's requirements.
2. Sophisticated rolling mill stands and auxiliary equipments/spare parts used in the rolling mill production line. (Such as roller box, gearbox reduction, coil laying head, vertical and side loops, flying shears, chopping shears and gripping shears, pinch roll machine and so on)
3. Technical services and post-sale technical supports.
4. Professional engineers available for overseas installation and maintenance.
