Minitype Standing Seam Roofing Forming Machine with Adjustment Metallic Processing
Xiamen Xinhonghua Machinery Co., Ltd.- Size：2300*1300*1400mm
- Weight：1400kgs
- Forming Steps：8steps
- Processing Speed：8-12m,Min
- Voltage：380V,50Hz,3pH
- Material Thickness：0.5-0.8mm
Base Info
- Model NO.：KLS38-220-530
- Standing Height of Roofing：38mm
- Thickness for Common Use and Testing Mac：0.6mm, 0.7mm (Material: PPGI, Gi, Aluminum)
- Effective Width of Roofing：220-530mm
- Material Width：316mm-626mm
- Transport Package：Standared Export Package
- Specification：2300*1300*1400mm
- Trademark：XHH
- Origin：China
- HS Code：84552290
- Production Capacity：30sets,Month
Description
Basic Info.
Model NO. KLS38-220-530 Standing Height of Roofing 38mm Thickness for Common Use and Testing Mac 0.6mm, 0.7mm (Material: PPGI, Gi, Aluminum) Effective Width of Roofing 220-530mm Material Width 316mm-626mm Transport Package Standared Export Package Specification 2300*1300*1400mm Trademark XHH Origin China HS Code 84552290 Production Capacity 30sets/MonthProduct Description
Standing Seam Metal Roof Forming Machinery (KlS38-220-530) :
Tech Parameter:
| 1. | Item | Standing Seam Metal Roof Machiery |
| 2. | Size | 2000*1100*1200mm |
| 3. | Weight | 1500KGS |
| 4. | Voltage | 380V/50HZ/3PH |
| 5. | Motor Power | 2.2KW |
| 6. | Power for Hydraulic | 0.75KW |
| 7. | Forming Steps | 6 steps |
| 8. | Material Thickness | 0.5-0.9mm |

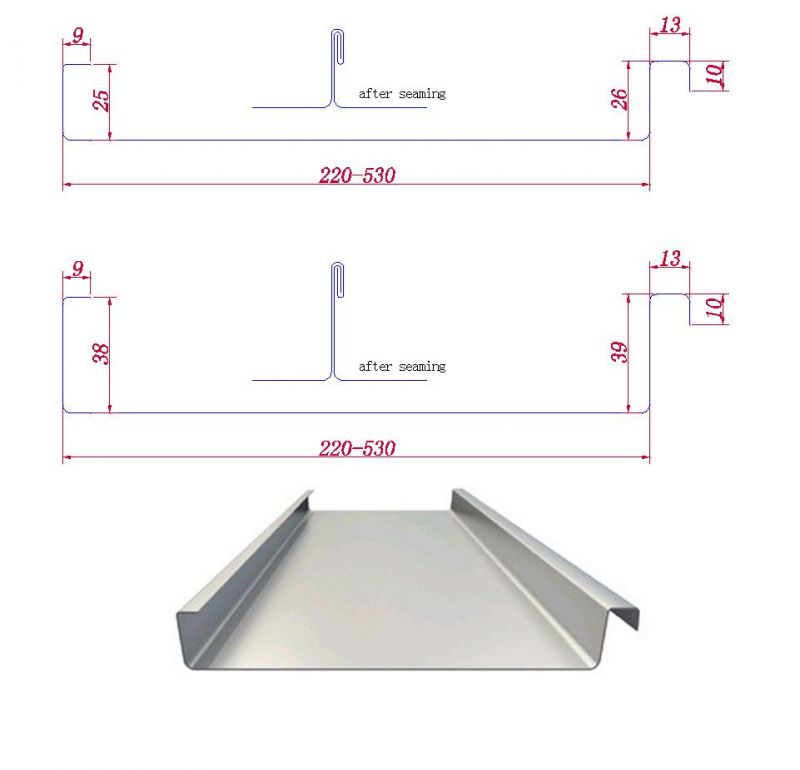

| 9. | Standing Height of Roofing | 38mm |
| 10. | Thickness for common use and testing machine | 0.6mm, 0.7mm |
| 11. | Effective Width of Roofing | 220-530mm |
| 12. | Material Width | 316-626mm |
Main Accessories:
(1). Main Portable Roll Forming Machines;
(2). 3 Tons Manual Uncoiler;
(3). PLC Computer Controlling System;
(4). Hydraulic Forming Cutter;
(5). Device for adjusting models;
(6). Run Out Table (3 units);
(7). Protective Cover;
(8). Operation Manual;
Usage: Producing standing seam roofing panels.

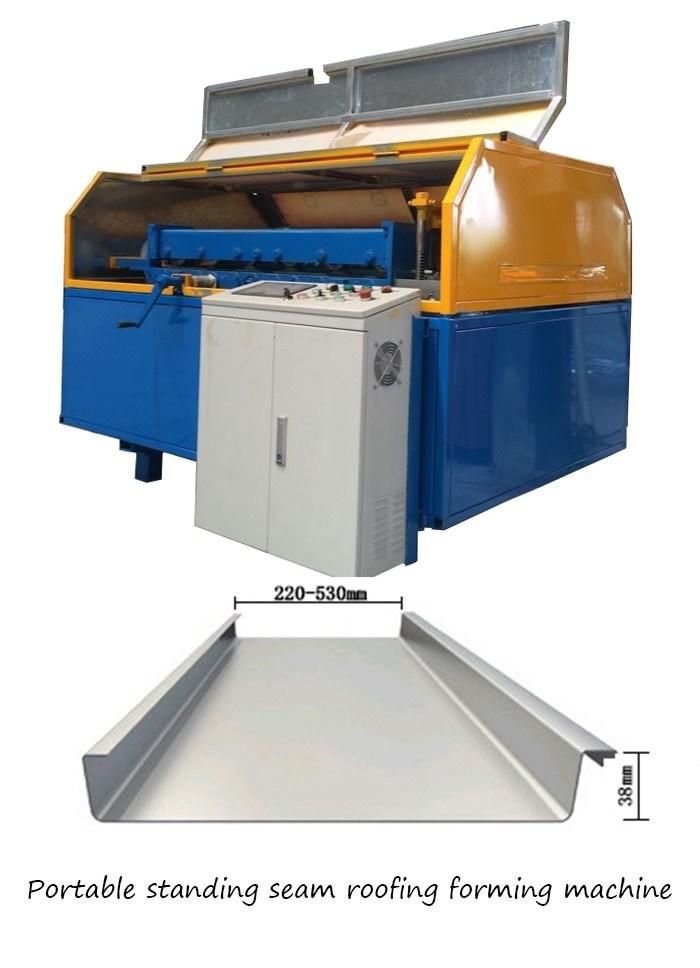

2. Pictures of portable standing seam machine
