Portable Standing Seam Roofing Forming Machine with Adjustment Matel Rolling
Xiamen Xinhonghua Machinery Co., Ltd.- Size:2300*1300*1400mm
- Weight:1400kgs
- Forming Steps:8steps
- Processing Speed:8-12m,Min
- Voltage:380V,50Hz,3pH
- Material Thickness:0.5-0.8mm
Base Info
- Model NO.:KLS25,38-200-530
- Thickness for Common Use and Testing Mac:0.6mm, 0.7mm (Material: PPGI, Gi, Aluminum)

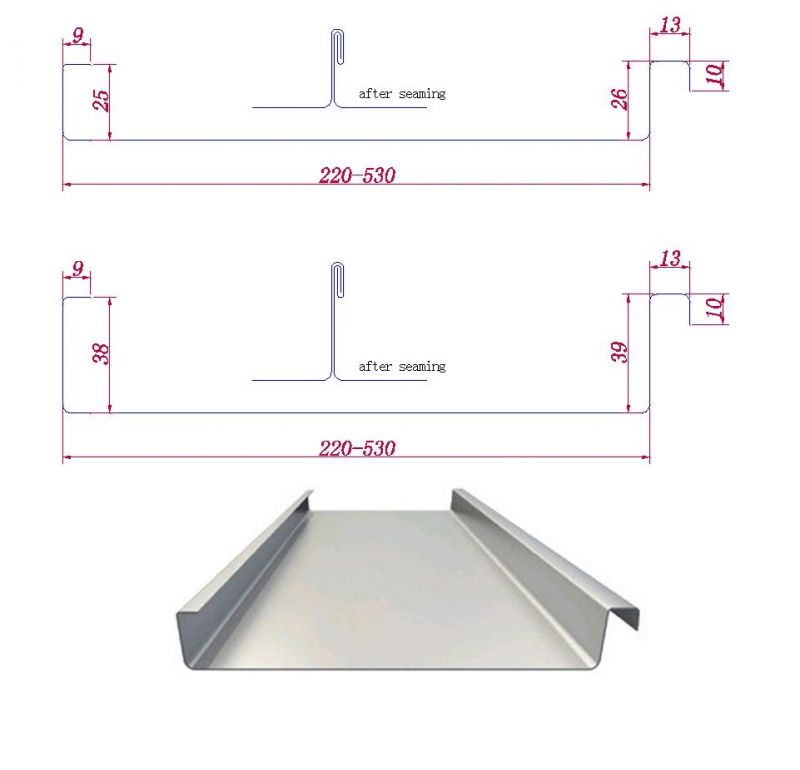

- Height of Roofing Panel:25mm or 38mm
- Effective Width:200-530mm
- Material Width:270-600mm, 296-626mm
- Transport Package:Standared Export Package
- Specification:2300*1300*1400mm
- Trademark:XHH
- Origin:China
- HS Code:84552290
- Production Capacity:20sets,Month
Description
Basic Info.
Model NO. KLS25/38-200-530 Thickness for Common Use and Testing Mac 0.6mm, 0.7mm (Material: PPGI, Gi, Aluminum) Height of Roofing Panel 25mm or 38mm Effective Width 200-530mm Material Width 270-600mm, 296-626mm Transport Package Standared Export Package Specification 2300*1300*1400mm Trademark XHH Origin China HS Code 84552290 Production Capacity 20sets/MonthProduct Description
Standing Seam Metal Roof Forming Machinery (KlS38-220-530) :
Tech Parameter:
1. | Item | Standing Seam Metal Roof Machiery |
2. | Size | 2000*1100*1200mm |
3. | Weight | 1500KGS |
4. | Voltage | 380V/50HZ/3PH |
5. | Motor Power | 2.2KW |
6. | Power for Hydraulic | 0.75KW |
7. | Forming Steps | 6 steps |
8. | Material Thickness | 0.5-0.9mm |
9. | Standing Height of Roofing | 38mm |
10. | Thickness for common use and testing machine | 0.6mm, 0.7mm |
11. | Effective Width of Roofing | 220-530mm |
12. | Material Width | 316-626mm |
Main Accessories:
(1). Main Portable Roll Forming Machines;
(2). 3 Tons Manual Uncoiler;
(3). PLC Computer Controlling System;
(4). Hydraulic Forming Cutter;
(5). Device for adjusting models;
(6). Run Out Table (3 units);
(7). Protective Cover;
(8). Operation Manual;
Usage: Producing standing seam roofing panels.

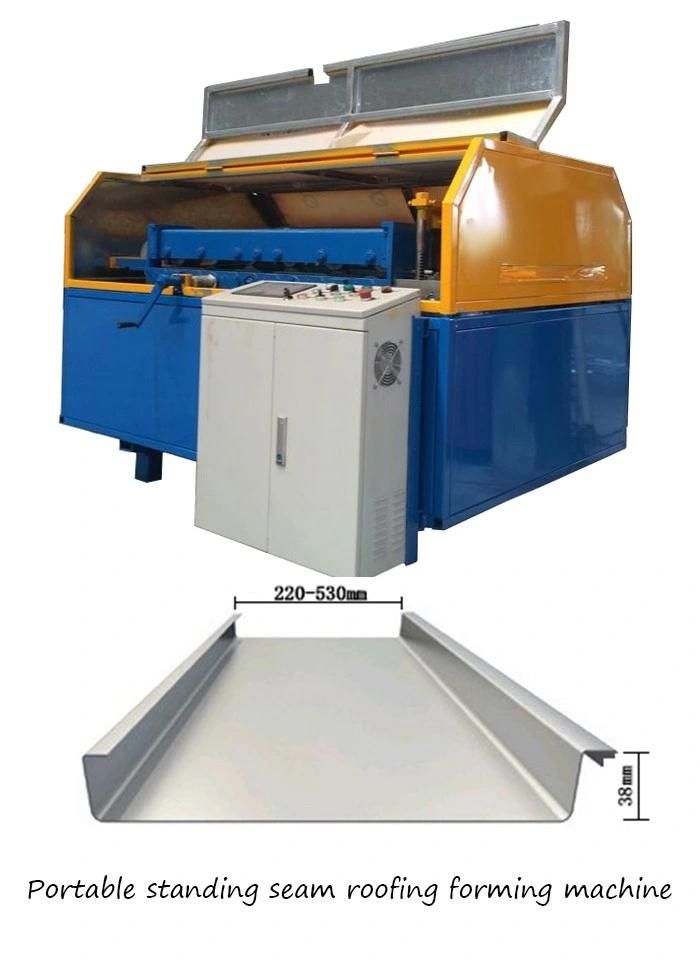

2. Pictures of portable standing seam machine
