Strick Inspection Easy Operate Nail Making Machine/Nail Equipment/Nail Machine/Wire Nail Making Machine
Wuxi Shenda Nail Machinery Factory- After-sales Service：Engineer Traning Service
- Warranty：1 Year
- Transport Package：Plywood Cases
- Specification：2380*1580*1660mm
- Trademark：Shenyida
- Origin：Wuxi, China
Base Info
- Model NO.：Z94-5.5C
- HS Code：8463300000
- Production Capacity：100PCS,Mon
Description
Basic Info.
Model NO. Z94-5.5C HS Code 8463300000 Production Capacity 100PCS/MonProduct Description
Strick Inspection Easy Operate Nail Making Machine/Nail Equipment/Nail Machine/Wire nail making machineCompany Information
Our company professional manufactures nail making machine, wire drawing machine and the accessory equipments since 1995
Capacity 1000pcs per year, customers cover Asia, middle East, Africa and latin-America ariea.
Our company has CE, ISO9001 certificate and our engineer arrange for machine accommodation in customer's factory.
We can supply high quality barbed wire netting machine which can netting the dia of the screen wire from 2mm to 3mm.
27 years machine manufacturer experience.14years exporting experiance with more than 200 companises customers.
One Stop service for nail&wire project from design to install.
With us ,you can same more time to learn all detail for NAIL&WIRE making project

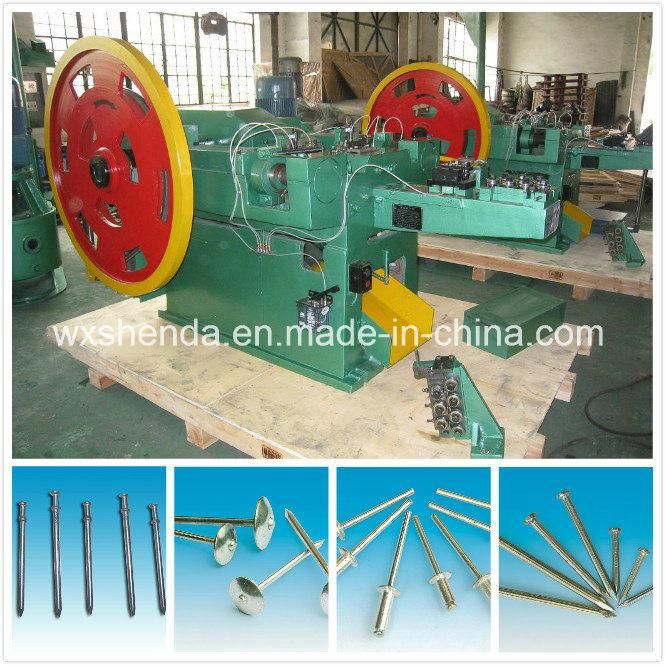

Z94-5.5C Nail Making Machine
New Generation Nail Making Machine
Featured with high speed, low noise and less compact
Used for produce normal nail, concrete nail, clout nail, rivet and so on.
Technical Parameter:
| parameter | unit | Z94-5.5C |
| Dia of nail max | mm | 5.5 |
| Dia of nail min | mm | 3.7 |
| Length of nail max | mm | 150 |
| Length of nail min | mm | 80 |
| Dsigned out put | pcs/min | 200 |
| Moter power | kw | 5.5 |
| Weight(approx) | kg | 2500 |
| Overall dimensions | mm | 2800x1800x1800 |

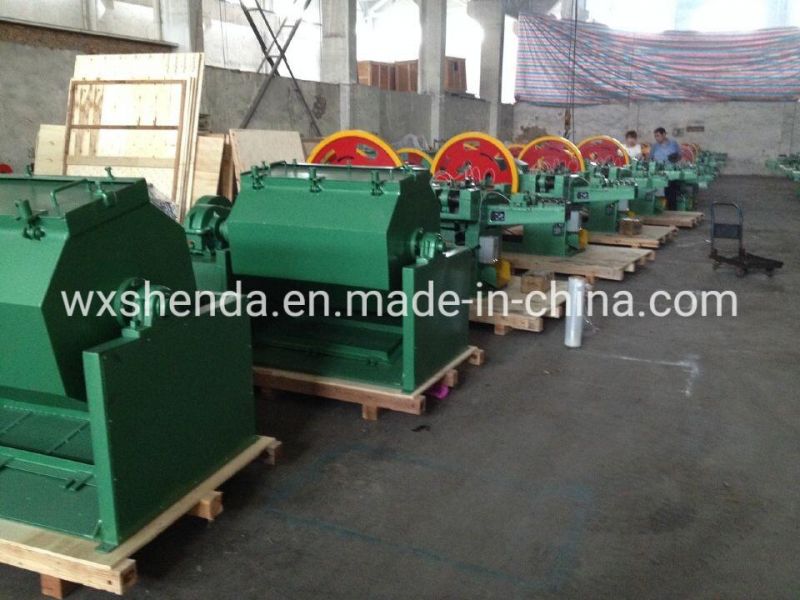

Nail polish machine
| Type | SD-400 | SD-600 | SD-1000 | SD-2000 |
| Capacity | 400kg | 600kg | 1000kg | 2000kg |
| Power of motor | 3kw | 4kw | 7.5kw | 11kw |
| Overall size | 1640x90x1000 | 1960*1070*1400 | 2000x1500x1400 | 2500x1500x1600 |
Coil nail collecting Machine
| Model THN-1 | |
| Range of Nail Dia.: | 1.8mm-3.7mm |
| Range of Nail Length: | 25mm-100mm |
| Output: | 800-1500pcs/min. |
| Rated Power: | 8kw |
| Power of Nail Feeding System: | 0.75kw |
| Power of Welding System: | 20kw, 1000-2000A |
| Power Supply: | 3 phases AC 380V 50-60HZ |
| Packing: | packed in 2 wooden cases |
| Packing Size: | 3000X1500X1800mm |
| 2000×1200×800mm | |
| Weight: | 1600kg |
| parameter | unit | Z94-5.5C | Z94-4C | Z94-3C | Z94-2C | Z94-1C |
| Dia of nail max | mm | 5.5 | 4.5 | 3.4 | 2.8 | 1.6 |
| Dia of nail min | mm | 3.7 | 2.8 | 1.8 | 1.2 | 0.9 |
| Length of nail max | mm | 150 | 100 | 80 | 50 | 25 |
| Length of nail min | mm | 80 | 50 | 30 | 16 | 9 |
| Dsigned out put | pcs/min | 200 | 260 | 320 | 350 | 450 |
| Moter power | kw | 5.5 | 4 | 3 | 2.2 | 1.5 |
| Weight(approx) | kg | 2500 | 2000 | 1400 | 1200 | 560 |
| Overall dimensions | mm | 2800x1800x1800 | 2200x1600x1650 | 2000x1400x1400 | 1700x1300x1400 | 1500x1300x1200 |

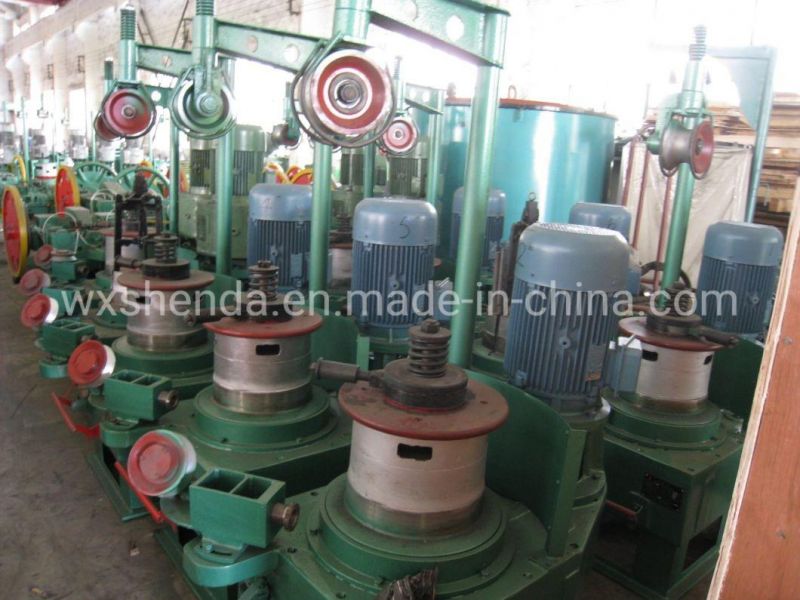

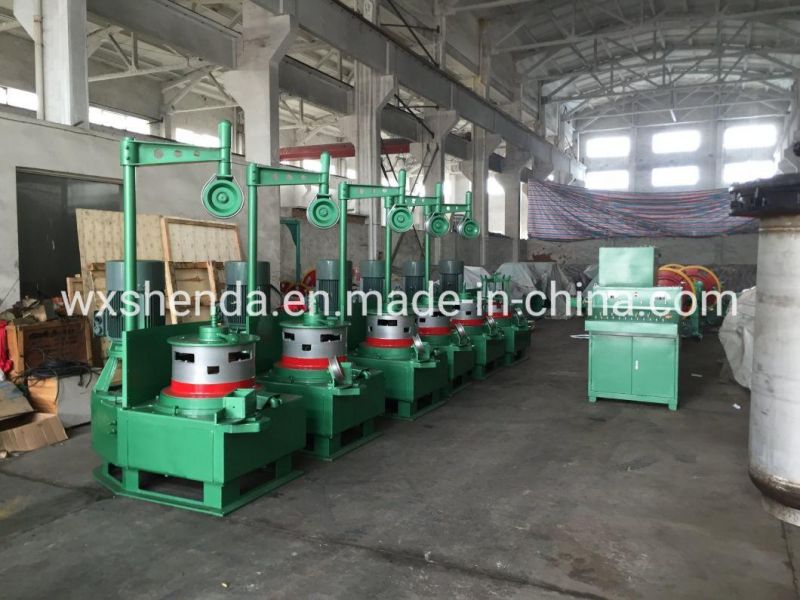

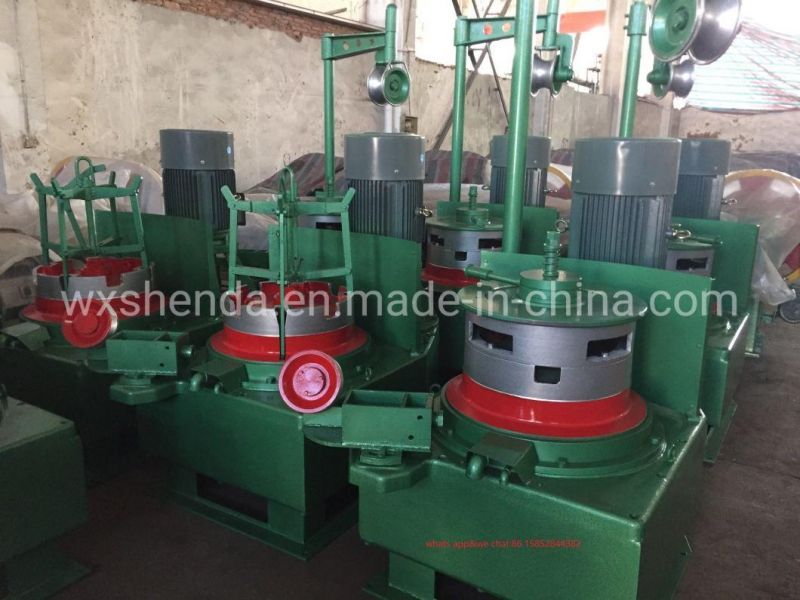

| Model | LW-1-6/560 | LW-1-7/450 | LW-1-6/350 |
| Material intensity | δb≥110kg/mm2 | 128kg/mm2 | δb≥140kg/mm2 |
| Max diam of material | 6.5mm | 3.4mm | 2.5mm |
| Min diam of material | 2mm | 1mm | 0.75mm |
| Diam of block | 1-6/560 | 1-7/450 | 1-6/350 |
| Max average condensation | 30% | 20% | 21% |
| Total condensation | 78-88.5% | 77.90% | 78% |
| Max.speed of block | 245m/min | 346.9m/min | 200m/min |
| Total power | 18.5-30kw | 7.5-11kw | 7.5-11kw |
| Weight | 2000kg | 1500kg | 1000kg |
| Overal size | 1700x1150x1750mm | 1520x810x1700mm | 1400x800x1500mm |

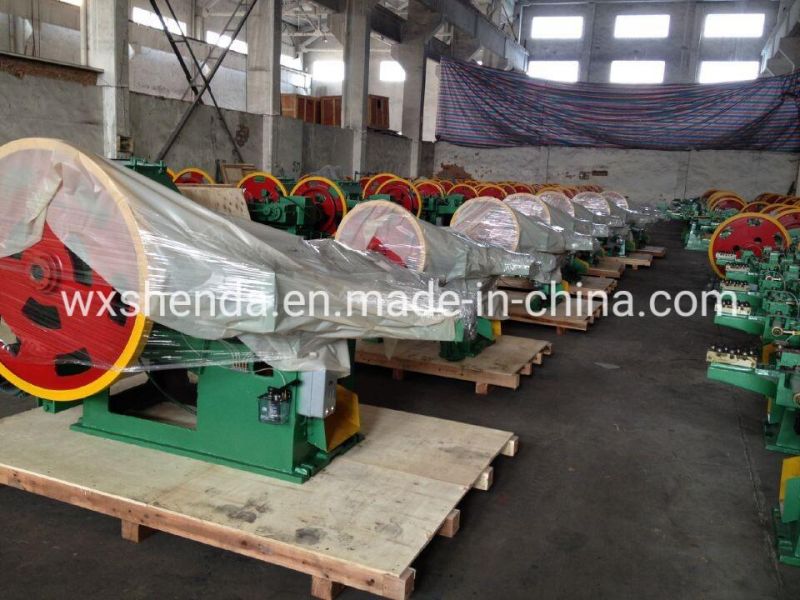

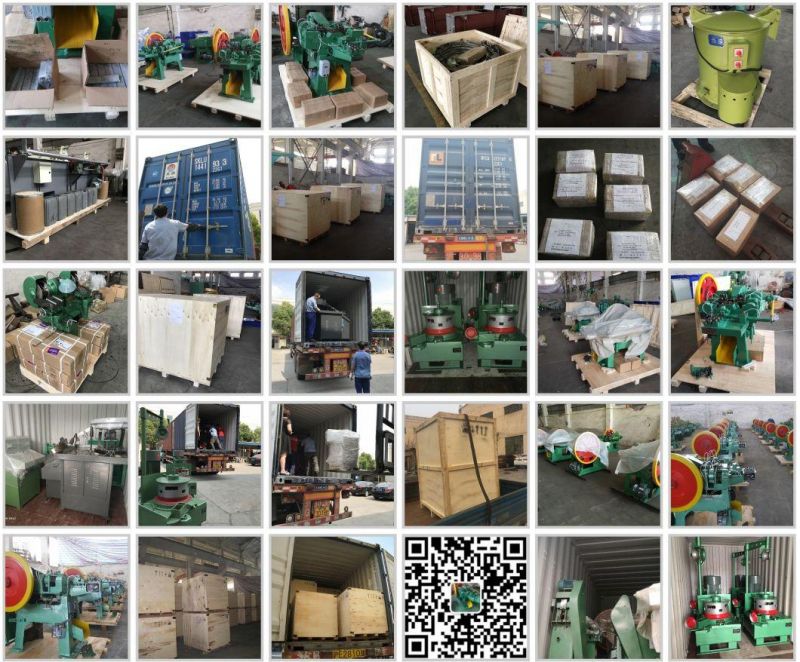

Machine packing&Delivery
usually machine packing :wooden box &steel pallet+plastic film
Delivery :15days after prepaid
FAQ:
QUESTION1:Material for nail making
A1:Q195/Q235steel, and SAE1006/1008/1010/1012/1016
QUESTION2:How many kg does one machine make per day
A2:Each nail making machine could made a range of nail size.For example,Z94-3C for nail making 1-3inch and could get nail 200-800kg per 8hour.The smaller diameter and shorter of nail,the light weight of nail .
QUESTION3:How can you guarranty the machine quality?
A3:All machine with 12 month guarranty as soon as machine arrive customer(not include nail mould,nail knife and punch pin).If any parts damage during warranty,the parts are free support.
QUESTION4:How long is the machine delivery time?
A4:Usually there will need 10days for normal machine ,And if the machine order order to make will take a bit long time .Because normal model machine we have stock for sale.
