• Model NO.：YX53-185-740
• Customized：Customized
• Advantage：Use Widely
• Condition：Roll Forming
• Color：Blue and Yellow
• Transport Package：Sea Packing
• Specification：CE, SGS
• Trademark：Saibo
• Origin：Jiangsu, China
• HS Code：84552210
• Production Capacity：300sets,Year

Item NO
Description

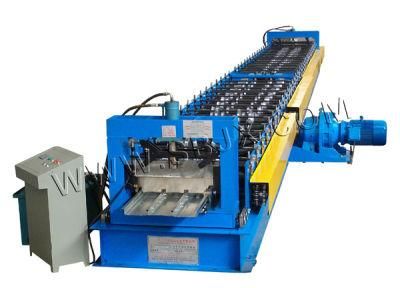

Offered specification Corrugated Roll forming machineYX53-185-740 Rolling speed12-15m/min(not include cutting time) Rolling thickness0.7-1.2mm GI up to 235Mpa Control systemPLC  (Panasonic) as list in the note Hydraulic un-coiler10TON The material width1250mm Effective width740mm Feeding typeTwo sides adjustable Roller stations31 stations(according the final design) Roller material45#forge steel, coated with chrome Shaft diameter¢85, material is 45# forge steel Maim motor power22kw Hydraulic station power5.5kw Hydraulic pressure10-12Mpa Material of cuttingCr12Mov Transmission1.0 inch double chain Tolerance3m+-1.5mm Electric source380V, 50HZ,3 phase Color of the machineYellow and blue4. Packing & Delivery
Deliver time: take goods after receive deposit 60 days
Packing: suitable of ocean transportation

5. Warranty
Warranty: 1 year warranty from date of shipment
Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
-  Damage occurs due to a natural disaster
-  Malfunction occurs due to user error
-  Malfunction occurs due to modifications
-  Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.

6. Payment Term
   30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

ATTENTION: The profile of the panel is according to the clients!
