Two Waves Guard Rail Roll Forming Machine

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Roll Forming
  • Power Source：Electric
  • Feature：High Efficiency
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：M192
  • Customized：Customized
  • Advantage：Easy to Maintenance
  • Condition：New
  • Color：Blue and Yellow
  • Transport Package：No Packing
  • Specification：CE SGS
  • Trademark：SAIBO
  • Origin：Jiangsu. China
  • HS Code：84552210
  • Production Capacity：300sets,Year

Description

Specification of the material1
 Suitable MaterialGalvanized steel up to 235Mpa2
 Width of the raw materialAccording the profile3Thickness2.5-3.0mm

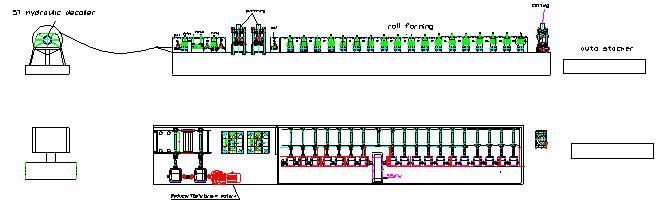

2. The Chart of Process Flow
Two Waves Guard Rail Roll Forming Machine

3. Main Specification1Machine structureGuide pillar structure2Total powerMotor power-37kw
Hydraulic power-5.5kw3Roller stationsAbout 13 stations + one station for rectify (according the final design)4Productivity0-15m/min5Drive systemBy gearbox6Diameter of shaft¢100mm solid shaft7
 Voltage380V 50Hz 3phases (Customized)8
 Container need1×40GP & 1×20GP container
4. Packing & Delivery
Deliver time: take goods after receive deposit 60 days
Packing: suitable of ocean transportation

5. Warranty
Warranty: 1 year warranty from date of shipment
Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
-  Damage occurs due to a natural disaster
-  Malfunction occurs due to user error
-  Malfunction occurs due to modifications
-  Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.

6. Payment Term
   30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

ATTENTION: The profile of the panel is according to the clients!
