• Customized：Customized
• Advantage：Use Widely
• Condition：New

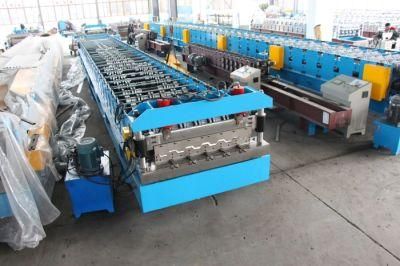

• Name：Metal Deck Roll Forming Machine
• Thickness：0.8-1.5
• Main Power：11X2kw
• Hydraulic Power：5.5kw
• Transport Package：Sea Packing
• Trademark：SAIBO
• Origin：Suzhou, China
• HS Code：84552210
• Production Capacity：300 Sets,Year

No Technical Specification & Remark1Manual Un-coiler
Width of feeding: 1250mm
Capability: 5 Ton
Inter diameter: 500-590mm
Maximal out diameter: 1500mm
Mode of expand &fight: inner expand &fight by manual
Way of feeding: manual2Main Roll Forming Machine

 Roller material: ASTM1045 chrome plated surface with hardness, CNC
Shaft diameter: ¢76mm material: SAE1045 with quenching and tempering
Main power: 22kw
Structure: wall panel
Thickness: 0.8-1.5mm, PI/PPGI3Machine structure:
Main frame by 350H beam welding

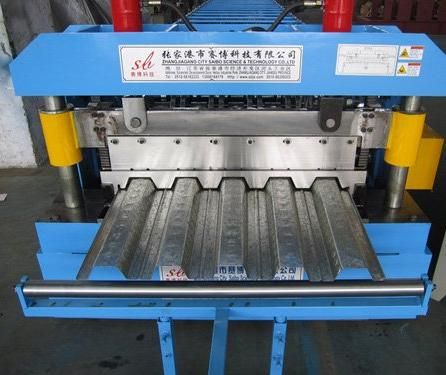

Machine structure: wall board panel4Hydraulic cutting system

 Cutting after forming: Cut the sheet after roll forming to required length
Uses two hydraulic cylinders for operation.
Material of blade:Cr12, 58-62 HRC hardness
Cutting power by hydraulic,5.5KW
Working pressure: 12Mpa adjustable
Length measuring: Automatic encoder length measuring
Tolerance of length: +/- 1.5mm for each piece end product5
Hydraulic System



Hydraulic power: 5.5kw
Working pressure: 12Mpa adjustable
Solenoid valve: 1 group
Hydraulic oil: 46# hydraulic oil
Quantity :1

 6Computer Control Cabinet


Programmable setting of profile length and quantity
Operating system language: English and Chinese
Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
Length inaccuracy can be amended easily
2. Packing & Delivery
Deliver time: take goods after receive deposit 60 days
Packing: suitable of ocean transportation
3. Warranty
Warranty: 1 year warranty from date of shipment
Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
-  Damage occurs due to a natural disaster
-  Malfunction occurs due to user error
-  Malfunction occurs due to modifications
-  Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.

4. Payment Term
   30% deposit by T/T in advance and 70% balance after inspection confirmation before s
