• Model NO.：QC11Y-16*8000

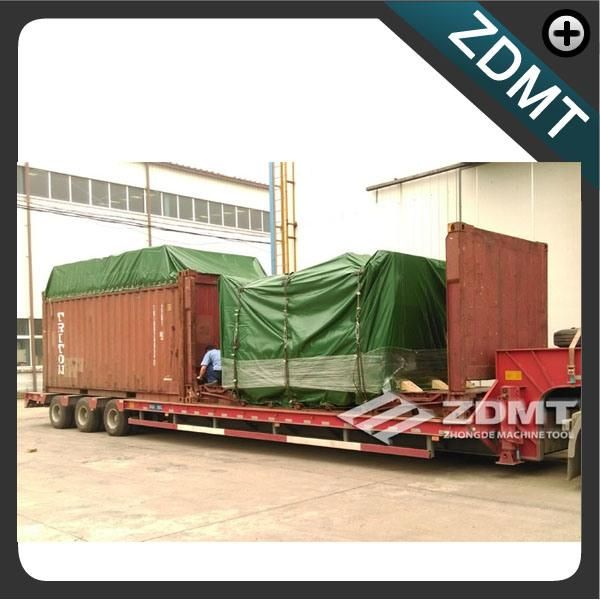

• Transport Package：Base Framed by Channel Steel and Plastic Bag
• Specification：1 Unit
• Trademark：ZDMT
• Origin：China
• HS Code：84623990
• Production Capacity：100units,Month

Basic Info.

Model NO. QC11Y-16*8000 Transport Package Base Framed by Channel Steel and Plastic Bag Specification 1 Unit Trademark ZDMT Origin China HS Code 84623990 Production Capacity 100units/Month

Product Description

CE certificate SGS verifie

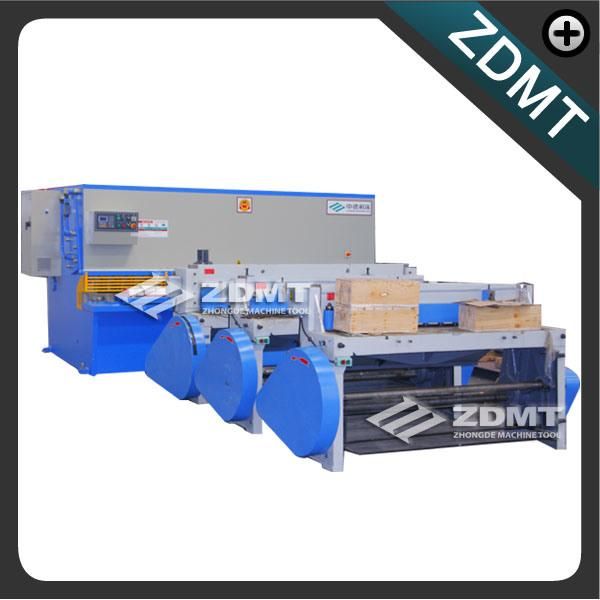

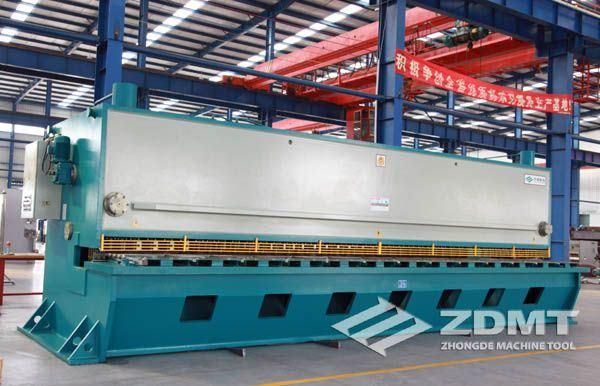

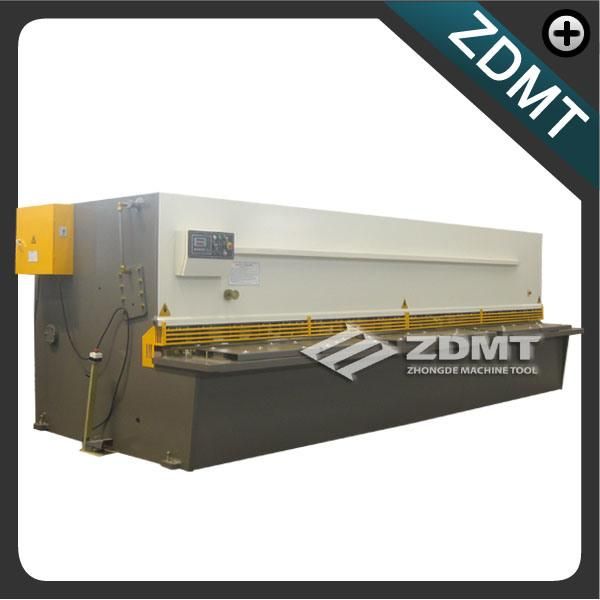

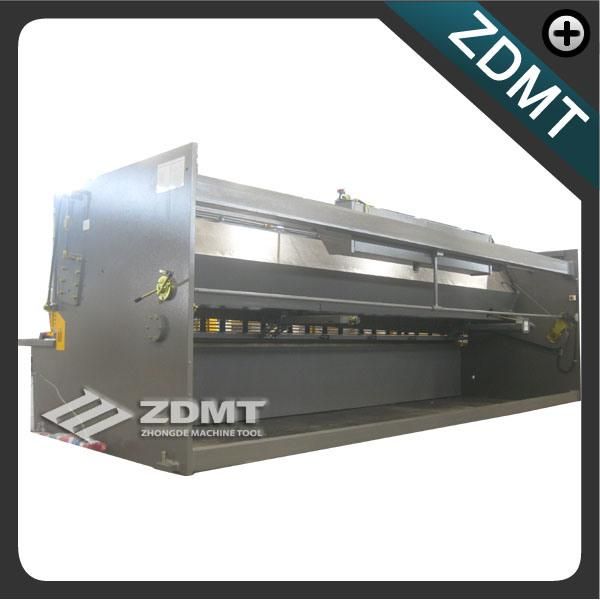

QC11Y hydraulic guillotine shearing machines


ISO9001: 2008
Cutting thickness: 0.5 to 16mm
Cutting length: 8m

1. The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumulator -based pullback cylinder with steady and reliable operation.

2. Stepless control for the stroke; The gap between up blade and down blade is manually adjusted by handle for high uniformity; Protection fence and the electric interlock to ensure the operation safety.

3. The closed loop control system that consists of CNC system and position coder features fast response speed, high precision, and exceptional stability and can ensure the accuracy of displacement of back gauge. Moreover, CNC system has the accessory functions of compensation and automatic check.

Model	Stroke Number(times/min)	Taavel of Backguge(mm)	Rake Angle(°)	Throat Depth(mm)	Main Motor(kw)	Weight(kg)	Overall Dimensions(L×W×H)(mm)
QC11K-6×2500	10-25	20-600	0.5-1.5	100	7.5	6,500	3030×2075×1920
QC11K-6×3200	10-25	20-600	0.5-1.5	100	7.5	7,200	3730×3075×1920
QC11K-6×4000	10-25	20-600	0.5-1.5	100	7.5	8,500	4530×2075×2080
QC11K-6×5000	8-20	20-800	0.5-1.5	100	7.5	13,000	5530×2075×2310
QC11K-6×6000	8-20	20-800	0.5-1.5	100	11	16,000	6530×2075×2310
QC11K-7×7000	6-15	20-800	0.5-1.5	100	11	21,000	7530×2075×2830
QC11K-8×2500	10-25	20-600	0.5-1.5	100	11	7,000	3040×2075×1920
QC11K-8×3200	10-25	20-600	0.5-1.5	100	11	8,100	4080×2075×1920
QC11K-12×2500	6-20	20-800	0.5-2	100	18.5	11,000	3110×2575×2210
QC11K-12×3200	6-20	20-800	0.5-2	100	18.5	15,000	3810×2575×2420
QC11K-12×4000	6-20	20-800	0.5-2	100	18.5	17,000	4610×2575×2530
QC11K-16×2500	5-15	20-800	0.5-2.5	100	18.5	13,000	3130×2655×2200
QC11K-16×4000	5-15	20-800	0.5-2.5	100	18.5	19,000	4630×2655×2570
QC11K-20×2500	5-15	30-800	0.5-3	100	22	15,000	3160×2855×2300
QC11K-20×4000	4-15	30-800	0.5-3	100	37	23,000	4660×2855×2520
QC11K-25×2500	4-15	40-800	0.5-3.5	100	37	19,000	3160×2900×2700
