• Model NO.：YX53-102
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Product Name：Downspout Roll Forming Machine
• Steel Thickness：0.3-0.6mm
• Roller Material：45# Steel
• Transport Package：No Packing
• Trademark：SAIBO
• Origin：Jiangsu, China
• HS Code：84552210
• Production Capacity：300sets,Year

NoSpecification of the material

1

Suitable MaterialColored Steel plate, Galvanized steel

2

Width of the raw material305mm3Thickness0.3-0.6mm

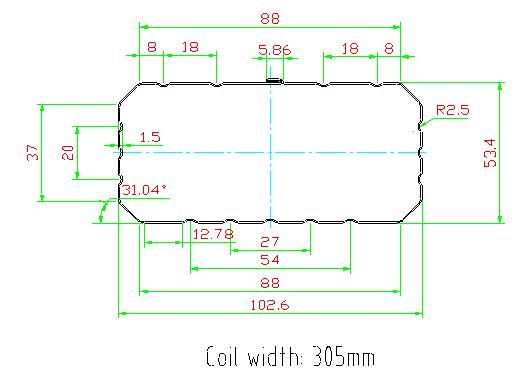

Profile drawing:

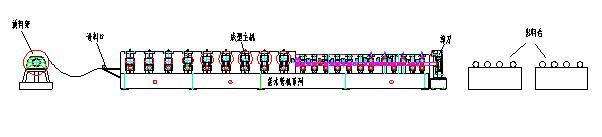

The Chart of Process Flow

Manual Uncoiler-Roll Forming-Cutting-out table

Specification of Components

No Technical Specification & Remark1

Manual Uncoiler



• Capability: 3 Ton
• Mode of expand &fight: inner expand &fight by manual
• Way of feeding: manual

2

Main Roll Forming Machine

• Roller material:ASTM1045 chrome plated surface with chrome
• Shaft diameter: ¢56mm material: SAE1045 with tempering

3

Machine structure:

• Main frame by 350H beam welding
• Machine structure: wall board panel

4

Hydraulic cutting system

• Cutting after forming: Cut the sheet after roll forming to required length
• Material of blade:Cr12, 58-62 HRC hardness
• Cutting power by hydraulic,4KW

5

Hydraulic System







• Hydraulic power: 4kw
• Working pressure: 12-16Mpa adjustable





6

Computer Control Cabinet



• Programmable setting of profile length and quantity
• Operating system language: English and Chinese
• Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
• Length inaccuracy can be amended easily.
• PLC: Panasonic

7

Out table

• Size: 2m
• One out table with three support roller
• Quantity: 2 units

8

Bending machine



• Max bend angle: 90°
• Function: bend and fasten at the same time
• power; 2.2kw

Warranty

• Warranty: 1 year warranty from date of shipment
• Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.
