Upright Roll Forming Machine (two sizes)

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Mold Forging
  • Power Source：Hydraulic Pressure
  • Feature：High Efficiency
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：YX100-100
  • Customized：Customized
  • Advantage：Easy to Maintenance
  • Condition：New
  • Product Name：Upright Roll Forming Machine
  • Steel Thickness：2.0-3.0mm
  • Power：18.5kw
  • Transport Package：No Packing
  • Trademark：SAIBO
  • Origin：Jiangsu, China
  • HS Code：84552210
  • Production Capacity：300sets,Year

Description

NoSpecification of the material

1

Suitable MaterialCarbon steel

2

Width of the raw materialBased on the purlin sizes.3Thickness1.5-3.0mm

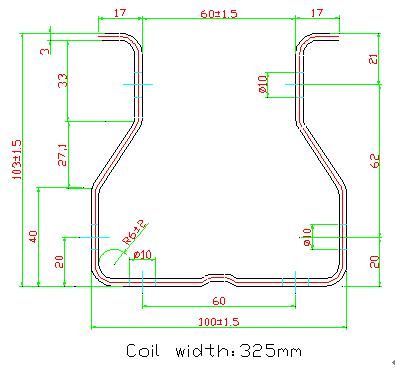

Profile drawing

Upright Roll Forming Machine (two sizes)

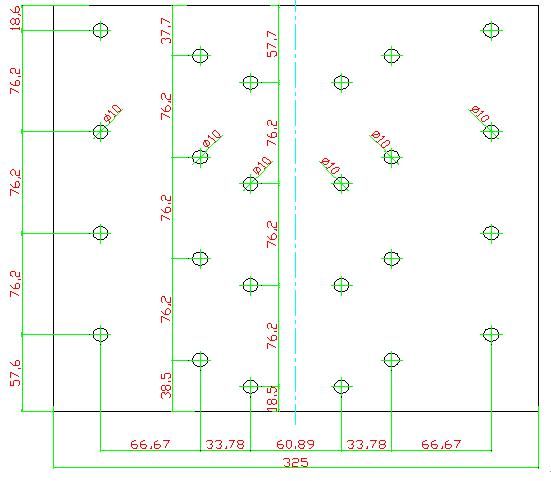

Punching drawing

Upright Roll Forming Machine (two sizes)

The Chart of Process Flow

Un-coiler-leveling-servo feeding-punching machine-feeding-Roll Forming-Cutting-out table


Specification of Components

No Technical Specification & Remark1

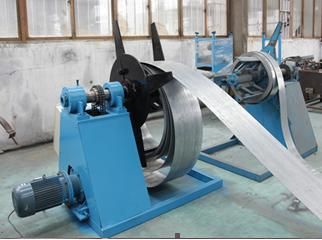

Electrical Un-coiler

Upright Roll Forming Machine (two sizes)

  • Steel coil width: 500 mm
  • Maximum coil weight: 3000 Kg
  • Main motor power: 5.5KW
2

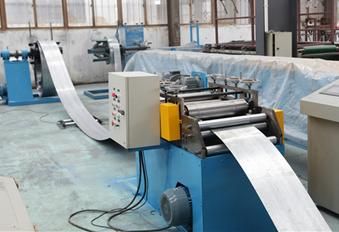

leveling

Upright Roll Forming Machine (two sizes)

  • Level the sheet to be flat
  • The speed can be control by the inverter inside the control box
  • The power: 5.5kw
3

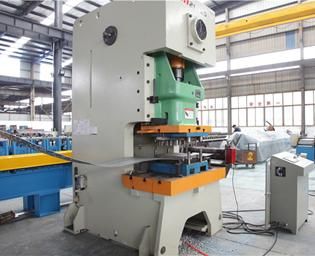

Servo motor and puching machine

Upright Roll Forming Machine (two sizes)

  • Model: Jh21-63
  • Brand: Yangli
  • servo motor power: 2.2kw
  • punching mold: big punching, Cr12material
4

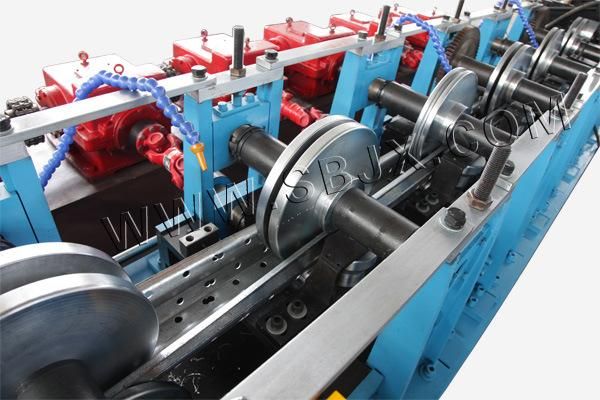

Main Roll Forming Machine

Upright Roll Forming Machine (two sizes)

  • Roll station:18stations+ 1 station of torque head
  • Roller material:Gcr15, 58-62,HRC hardness and chrome plated surface
  • structure: cast iron
  • drive: by gear box
