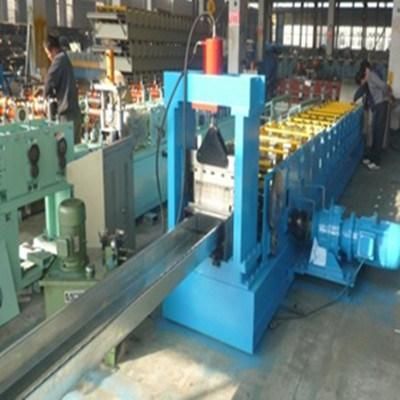

Quick Interchangeable Roll Forming Machine

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Roll Forming
  • Power Source：Electric
  • Feature：High Efficiency
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Customized：Customized
  • Advantage：Use Widely
  • Condition：New
  • Color：Blue and Yellow
  • Transport Package：No Packing
  • Specification：CE SGS
  • Trademark：SAIBO
  • Origin：China
  • HS Code：84552210
  • Production Capacity：300set,Year

Description

Item NO
Description
Offered specification Roll Forming MachineAngle, U shape, Z shape

  How to change the profileBy changing the whole forming units How to change the sizeBy changing the spacer Material WidthAccording to the final design Rolling Speed12-15m/min Rolling Thickness0.7mm GI, Q235 Control SystemPLC  (Panasonic) as list in the note Un Coiler3 ton manual de-coiler Roller StationsAbout 8 stations for angle
About 9 stations for U shape
About 10 stations for Z shape
According to the final design Roller Material45# forge steel, coated with chrome Shaft Material and DIA¢56mm, material is 45# forge steel Maim Motor Power4kw Cutting WayHydraulic cutting Hydraulic power3kw Material Of The StationsWall panel Tolerance3m+-1.5mm Electric Source380V, 50HZ,3 phase
Also can satisfy customer's require Way Of Drive1 inch single chain  Color Of The MachineYellow and blue Size of the machineL*W*H   5.2m*1.2m*1.4m
4. Packing & Delivery
Deliver time: take goods after receive deposit 60 days
Packing: suitable of ocean transportation

5. Warranty
Warranty: 1 year warranty from date of shipment
Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
-  Damage occurs due to a natural disaster
-  Malfunction occurs due to user error
-  Malfunction occurs due to modifications
-  Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.

6. Payment Term
   30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

ATTENTION: The profile of the panel is according to the clients!
