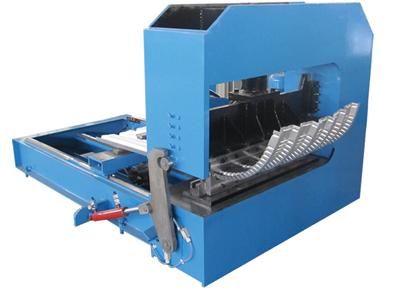

Hydraulic Curving Machine with Servo Motor
Zhangjiagang City Saibo Science & Technology Co., Ltd.- Type：Hydraulic Machine
- Forging Forming Method：Mold Forging
- Power Source：Hydraulic Pressure
- Feature：High Efficiency
- Certification：ISO9001, CE
- Warranty：12 Months
Base Info
- Customized：Customized
- Advantage：Use Widely
- Condition：New
- Product Name：Hydraulic Curving Machine
- Main Motor Power：1.5kw Servo Motor
- Hydraulic Power：5.5kw
- Transport Package：No Packing
- Trademark：SAIBO
- Origin：Jiangsu, China
- HS Code：84552210
- Production Capacity：300set,Year
Description
- Machine adopt servo motor feeding of the sheet, 1.5kw servo motor.
- Feeding press material: SAE1045 with quenching and tempering.
- CR12 HRC55-60 surface with chrome.
- Hydraulic power: 5.5kw
- Working pressure: 12Mpa adjustable
- Solenoid valve: 1 group
- Hydraulic oil: 46# hydraulic oil
- Quantity :1
- Programmable setting of profile length and quantity
- Operating system language: English and Chinese
- Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
- Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
- Length inaccuracy can be amended easily.
- Control panel: Button-type switch and touch screen
