• Model NO.：10 ton
• HS Code：84552210
• Production Capacity：1000set,Year

Basic Info.

Model NO. 10 ton HS Code 84552210 Production Capacity 1000set/Year

Product Description

A: Simple structure and beautiful outlook;
B: Easy to setting and operation
C: Little noise and high working efficiency.

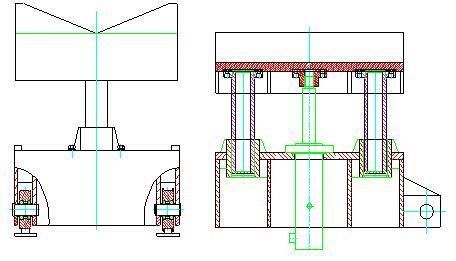

Layout drawing:

Main technology parameter:
Single unrolling machine, one side can put material
Adopt automatic hydraulic system
Coil weight (Max): 10000kg
Inter diameter: 470mm-610mm
Maximal out diameter: 2000mm
Oil cylinder dia: 120mm
Coil width (Max. )1300mm
Working speed: 0-30m/min
Power: 7.5KW AC motor
Hydraulic power: 4kw
De-coiler should be with Loop control and hold down
Coil car: 10Tons
The coil car by hydraulic: 16Mpa
Pressure: 12-20Mpa
The decoiler have four segments
