• Model NO.：Metal Roof Production Line
• Power Source：Hydraulic Pressure
• Feature：High Efficiency
• Certification：CCC, ISO9001, CE
• Warranty：12 Months
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Name：Metal Roof Production Line
• Processing Material：Aluzinc,Galvanized Steel,Colored Steel Coil
• Material Thickness：0.3-0.8mm
• Effective Width：840,1050mm
• Feeding Width：1000,1250mm
• Main Motor Power：4 Kw
• Pump Power：4 Kw
• Shaft Diameter：75mm
• Forming Steps：13 Steps
• Roller Material：45# Forged Steel, with Hard Chrome Plating
• Transport Package：Water-Proof Packaging, Covered with Plastic Film
• Specification：SGS CE ISO
• Trademark：DIXIN
• Origin：Botou Hebei China
• HS Code：84552210
• Production Capacity：20 Set Per Year

Basic Info.

Model NO. Metal Roof Production Line Power Source Hydraulic Pressure Feature High Efficiency Certification CCC, ISO9001, CE Warranty 12 Months Customized Customized Advantage Use Widely Condition New Name Metal Roof Production Line Processing Material Aluzinc/Galvanized Steel/Colored Steel Coil Material Thickness 0.3-0.8mm Effective Width 840/1050mm Feeding Width 1000/1250mm Main Motor Power 4 Kw Pump Power 4 Kw Shaft Diameter 75mm Forming Steps 13 Steps Roller Material 45# Forged Steel, with Hard Chrome Plating Transport Package Water-Proof Packaging, Covered with Plastic Film Specification SGS CE ISO Trademark DIXIN Origin Botou Hebei China HS Code 84552210 Production Capacity 20 Set Per Year

Product Description

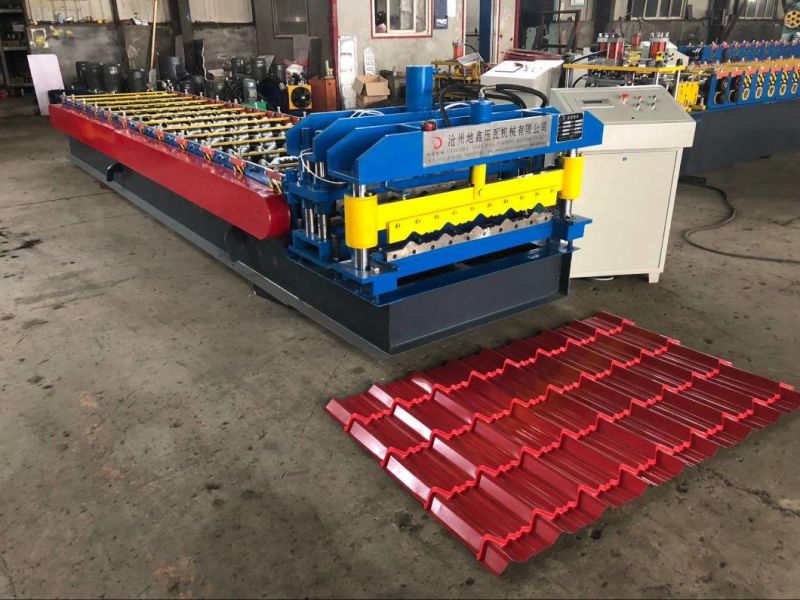

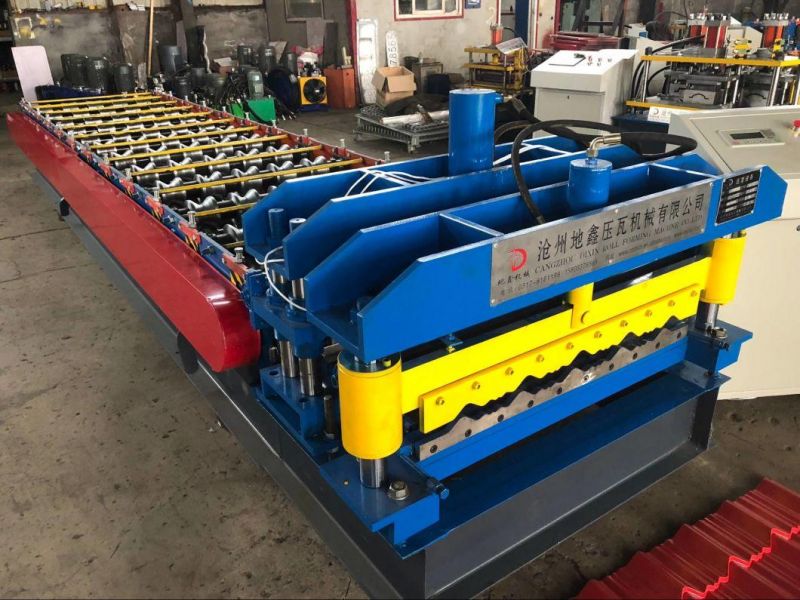

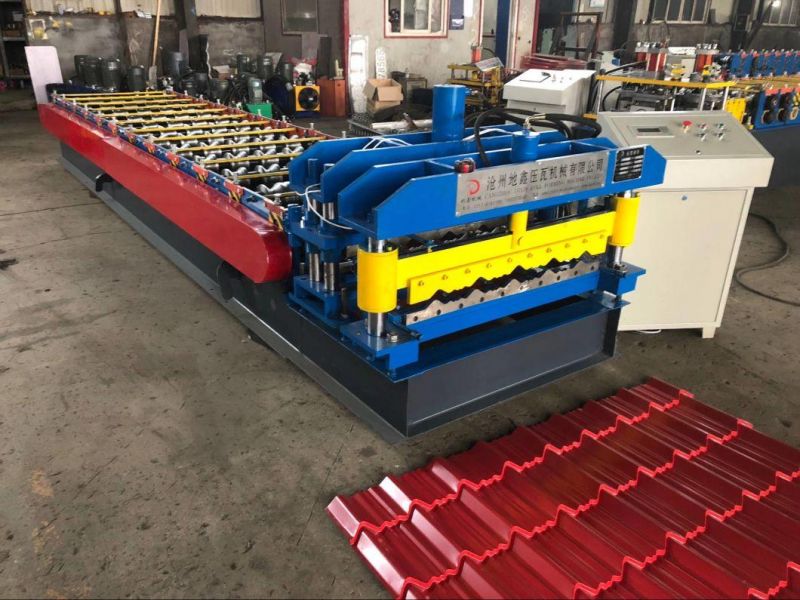

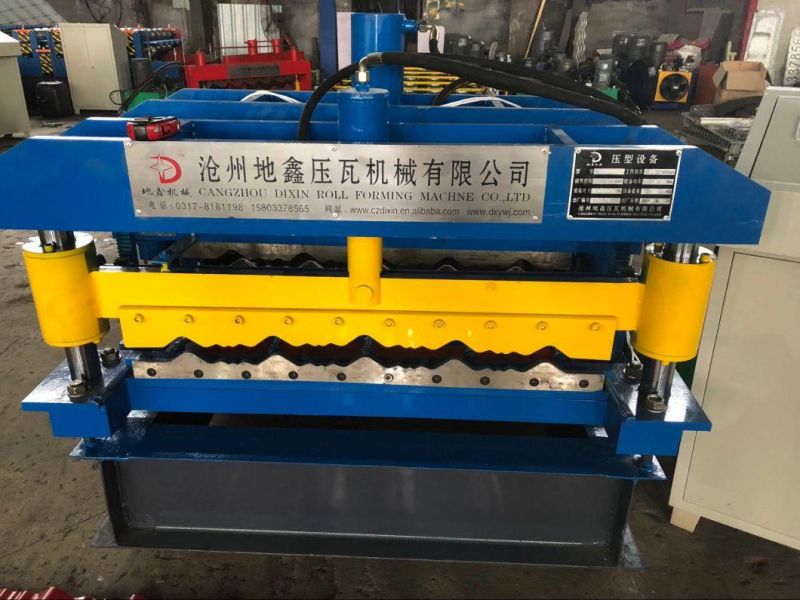

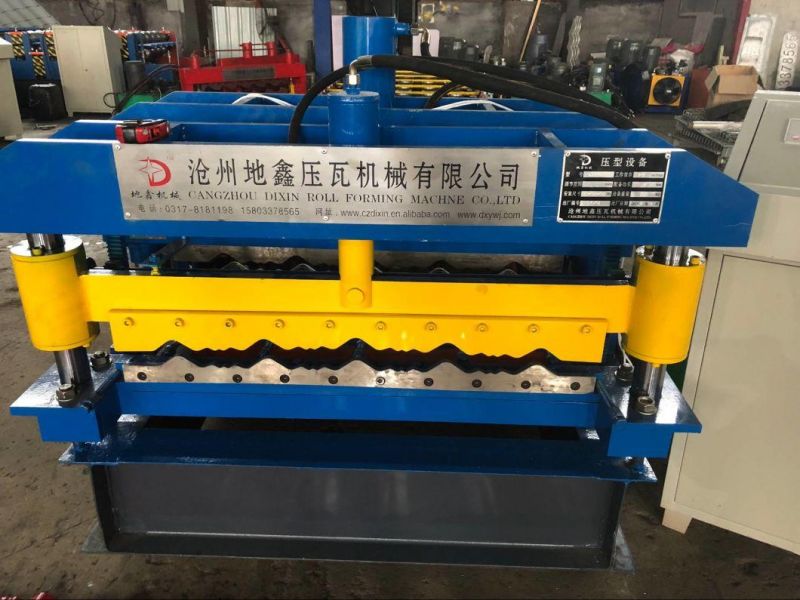

Glazed Tile Color Roof Roll Forming Machine

2. Technique parameters

Material specification	Aluminum, alu-zinc, galvanized and pre-painted galvanized steel.
Thickness	0.3-0.7mm.(perfect is 0.4mm-0.6mm)
Main motor power	5.5 kw.
Hydraulic station power	5.5kw.
Feeding width	1000mm.
Cover width	828mm
Yield stress	235Mpa (33KSI) ~ 345Mpa (50KSI).
Roll forming Speed	15-18 m/min
Cutting Tolerance	+/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm).

Manual Uncoiler	Max. Capacity: 5000kgs.
Coil inner diameter	508mm.
Voltage	380V,3 Phase,50HZ,Or As per customer's request.
Numbers of stands	17 stations
Type of cutting	Roll-formed and length-set profile cutting.

3. Material of Main Equipment:

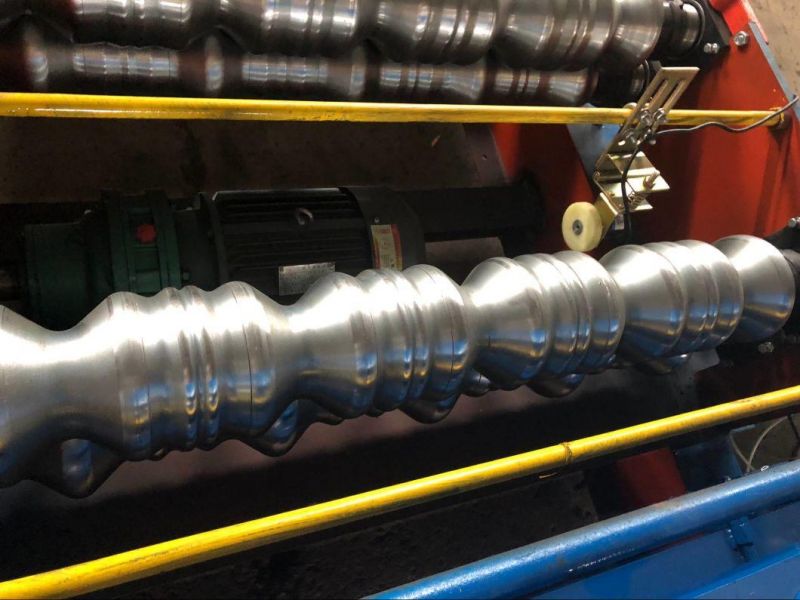

Roller Material	High grade S45C forged steel, coated with hard chrome.
Active Shaft Material	High grade S45C carbon wrought steel, diameter 76mm.
Electric Elements	PLC control console, touch screen and transducer, from Siemens, Germany. Other elements, from Schneider Electric, Germany.
Cutter Blades	Cr12MoV steel with quenched treatment, hardness HRC58~61, wear-resistance, good steel structure, long life.

Process Sketch:
Uncoiling →Infeed guiding →Roll forming →Pressing→Measure Length&Shearing →Sheet to Support Table



3. Payment term:
TT, 30%tt as the deposit, after production pay the last 70%TT

4. Advantages of 1050-210-25 trapezoidal metal roof production line:
    1.Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate
     as the material plate.
    2.Controlling by computer, PLC display, operation is easy, running is steady and
     reliable,endurable,maintenance-free.
    3.We can make and design will kinds of roll forming machine according to customer's request.
    4.Factory direct supply price.
    5.Machines can be testing before shipping by buyer.
    6 Life-long technical guidqnce for free.

5 Company.
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel  purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.

Because of reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.

Warmly welcome to China to visit our factory and select the machines you need. Our address, Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China

6.Service
we provide a one year warranty and lifelong technical support will be provided
we can send our technicians to you to give you on-site training. The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US50.

7.Contract:
 Andyli


8 Whole production line

1	Uncoiler	1 Set
2	Feeding Device	1 Set
3	Forming&bending Device	1 Set
4	4 KW Motor	1 Set
5	4 KW Pump Station	1 Set
6	Adjustable length output table	1 Set
7	Delta PLC Computer Control	1 Set


FAQ
1.Q: How can I contact you?
A: You can talk to me anytime. Or send me enquiry email, I will reply you in 24 hours and offer the optimum solution to you.
2. Do you have after sales support?
A:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3.Q: How to visit our company?
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
     2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
4.Q: How many years since you have been in this field?
A: Our company has been producing roll forming machines for almost 20years.We have rich experience for manufacturing and designing the machine.
5.Q. What can you do if the machine broken?
A:Our machine's warranty period is 12months, if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself. if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
6.Q:How long the machine could be made?
 A:Normally speaking,  machine could be made within 30 working days. If you need machines in a hurry, we can make it for you less than a month.
6.Q:If our country's voltage is different from yours, how to solve that?
A:The usual voltage is 380v,220v,415v. If yours are not one of them, we will design the electric motor to suit your voltage.
