• Model NO.：Roof Sheet Arching Machine
• Feature：Automation
• Certification：CCC, ISO9001, CE
• Warranty：12 Months
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Item Name：Roof Sheet Arching Machine
• Feeding Material：Trapezoidal Roof Sheet Panel
• Feeding Thickness：0.2-0.8mm
• Forming Speed：2-4m,Min
• Crimping Radian：Adjustable by PLC Computer
• Control Part：Delta PLC Control with Inverter; Frequency Convert
• Curving Mold：Cr 12 High Quenching with High Temperaute 62
• Max Production Order：Three
• Special Design：Yes
• Machine Size：3000mm*1500mm*1600mm
• Transport Package：Fit for Container Loading
• Specification：DX 840 or as your panel drawing
• Trademark：DX
• Origin：China, Hebei
• HS Code：84552210
• Production Capacity：23 Sets Per Month

Basic Info.

Model NO. Roof Sheet Arching Machine Feature Automation Certification CCC, ISO9001, CE Warranty 12 Months Customized Customized Advantage Easy to Maintenance Condition New Item Name Roof Sheet Arching Machine Feeding Material Trapezoidal Roof Sheet Panel Feeding Thickness 0.2-0.8mm Forming Speed 2-4m/Min Crimping Radian Adjustable by PLC Computer Control Part Delta PLC Control with Inverter; Frequency Convert Curving Mold Cr 12 High Quenching with High Temperaute 62 Max Production Order Three Special Design Yes Machine Size 3000mm*1500mm*1600mm Transport Package Fit for Container Loading Specification DX 840 or as your panel drawing Trademark DX Origin China, Hebei HS Code 84552210 Production Capacity 23 Sets Per Month

Product Description

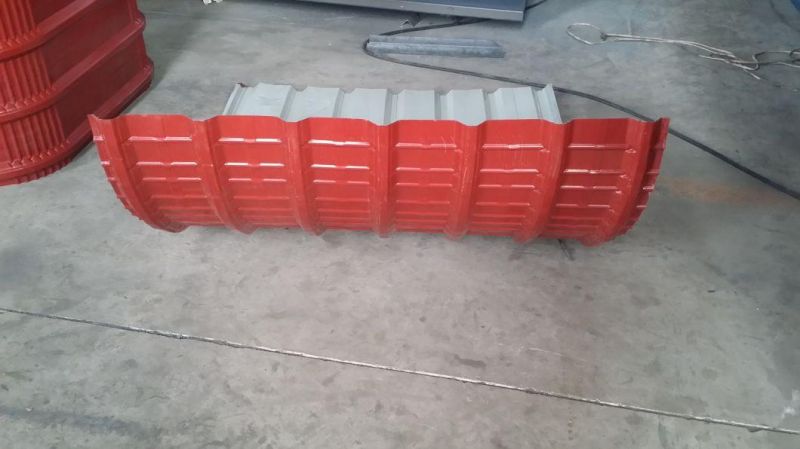

Africa Steel Roof Sheet Curving /Arching Machine
Roof Panel Crimp Curving Rollforming Machine is able to turn vertically automatically. Pressing system is designed meticulously to create steps which have high tensility and intact paint. Servo transmission boosts the forming speed up to 4-6 m/min and accomplishes precisely pressed steps.
1.Machine Technique parameters

1.Processing material	aluzinc/galvanized steel/colored steel coil
2.Material thickness	0.25-0.8mm
3.Feeding width:	IBR sheet as design
4.Effective width	IBR sheet  as design
5.Main motor power	4kw with servo motor
6.Pump station power	4kw
7. Shaft diameter	75mm
8.Forming steps	Top 2 steps, down 4 steps, as machine pictures.
9.Main frame	300H steel frame
10. Side plate thickness	16mm
11.Roller material	45# forged steel, with hard chrome plating
12.Control systerm	(Taiwan brand)Delta PLC control system with touch screen
13.Cutting blade material	Cr12
14.Working speed	About 3-5m/min
15. Transmission way	1 inch chain drive
16. Machine size (mm)	About 2000*1500*1300mm
17. Machine weight	About1.5ton
18.Power supply	380v,3phase,50hz or accodring to customer request

.Components of production line

No.	Name	Unit	Qty
1	Main forming machine	set	1
2	Delta PLC control system	set	1
3	Normal cutting system	set	1
4	Electric motor	set	1
5	Spare parts	box

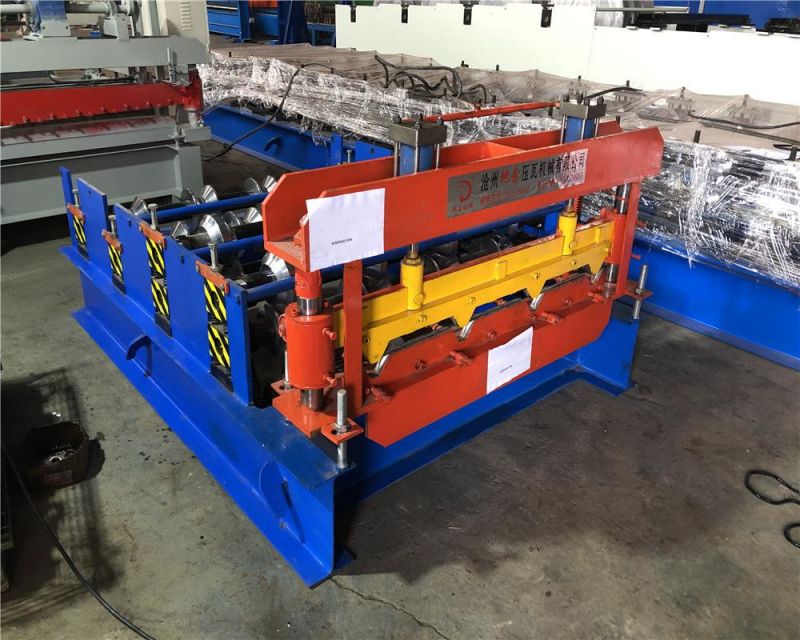

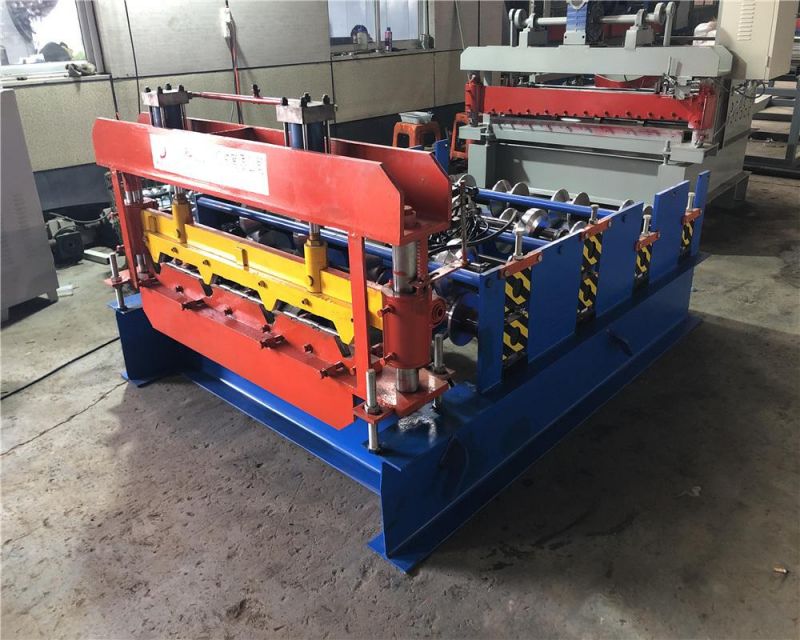

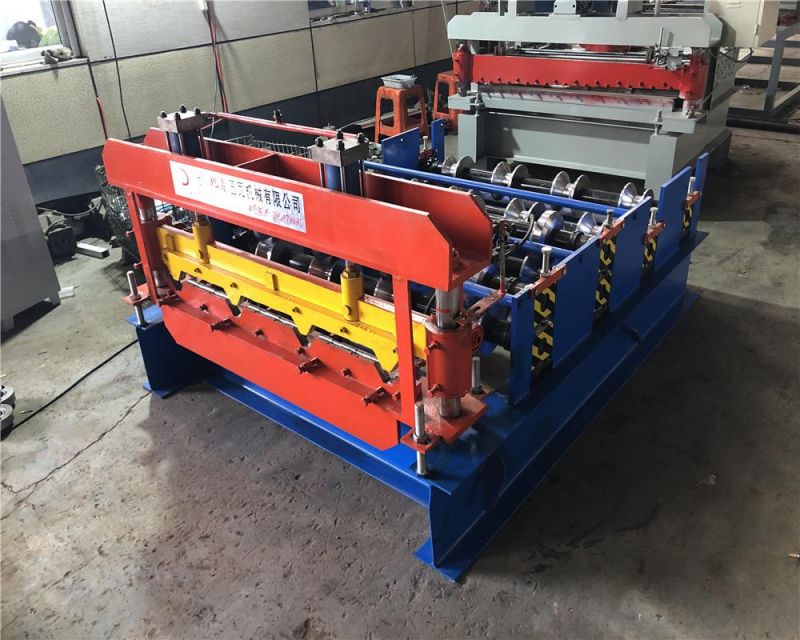

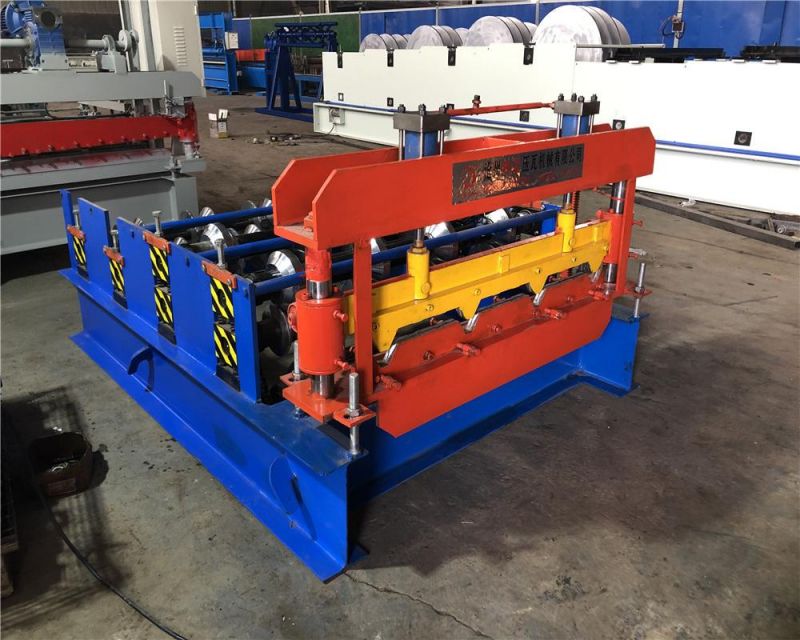

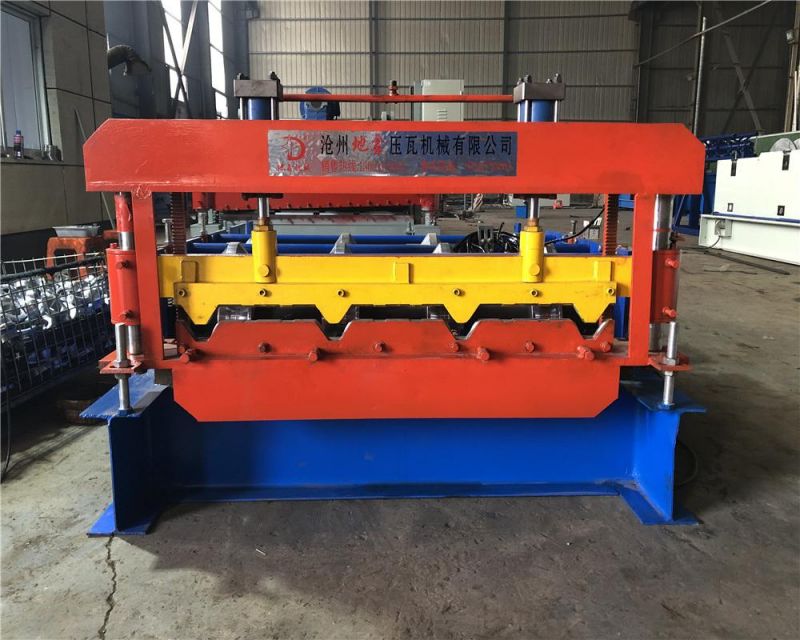

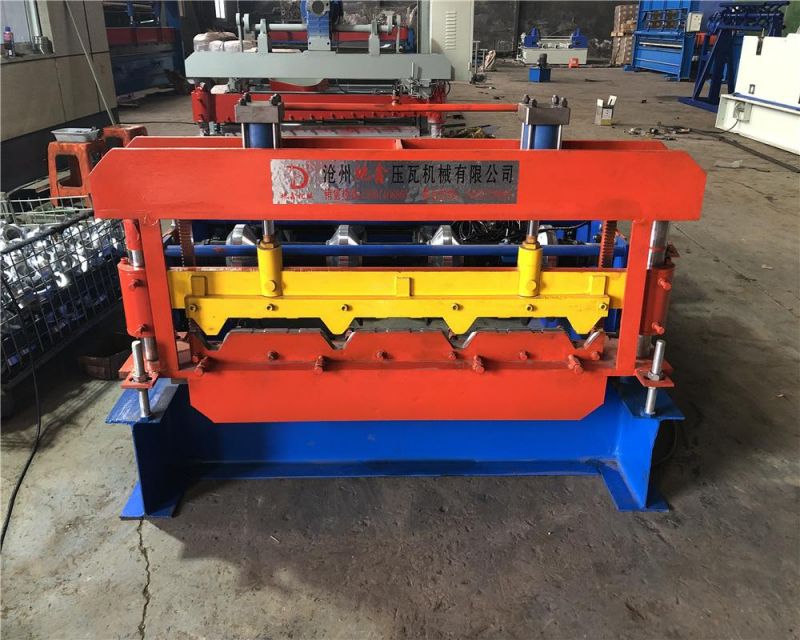

2.Some machine pictures for your reference.

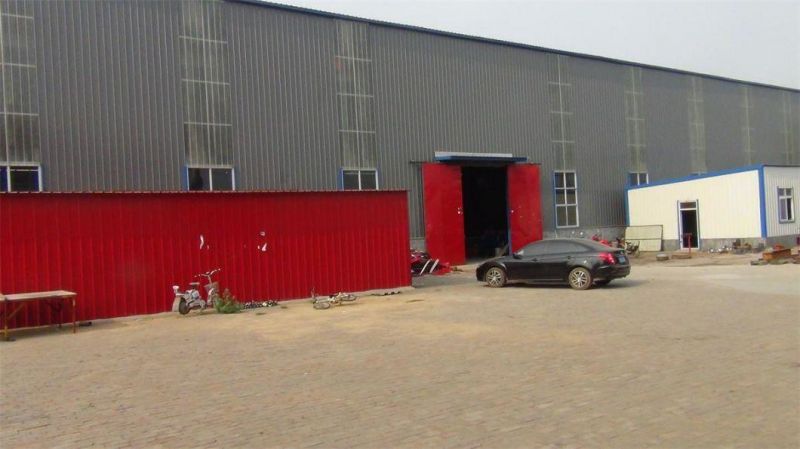

About our company
     Cangzhou Dixin Roll Forming Machine Co.,ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines,material of building. We specialize in the automated production line of sheet cold roll forming machines. We are able to provide an integral resolution schema of cold roll forming system through a combination of advanced system design and equipment. Based on our advanced research and commercial team, we are able to research and development, manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely.

3.Packing and shipping details
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.


FAQ1. What are the main key points for selecting right machines?

A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.

Good quality is for long-term business cooperation.



Q2. Can you provide OEM service for roll forming machine?

A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.



Q3. What's your standard trade terms ?

A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.



Q4. How about the quality control?

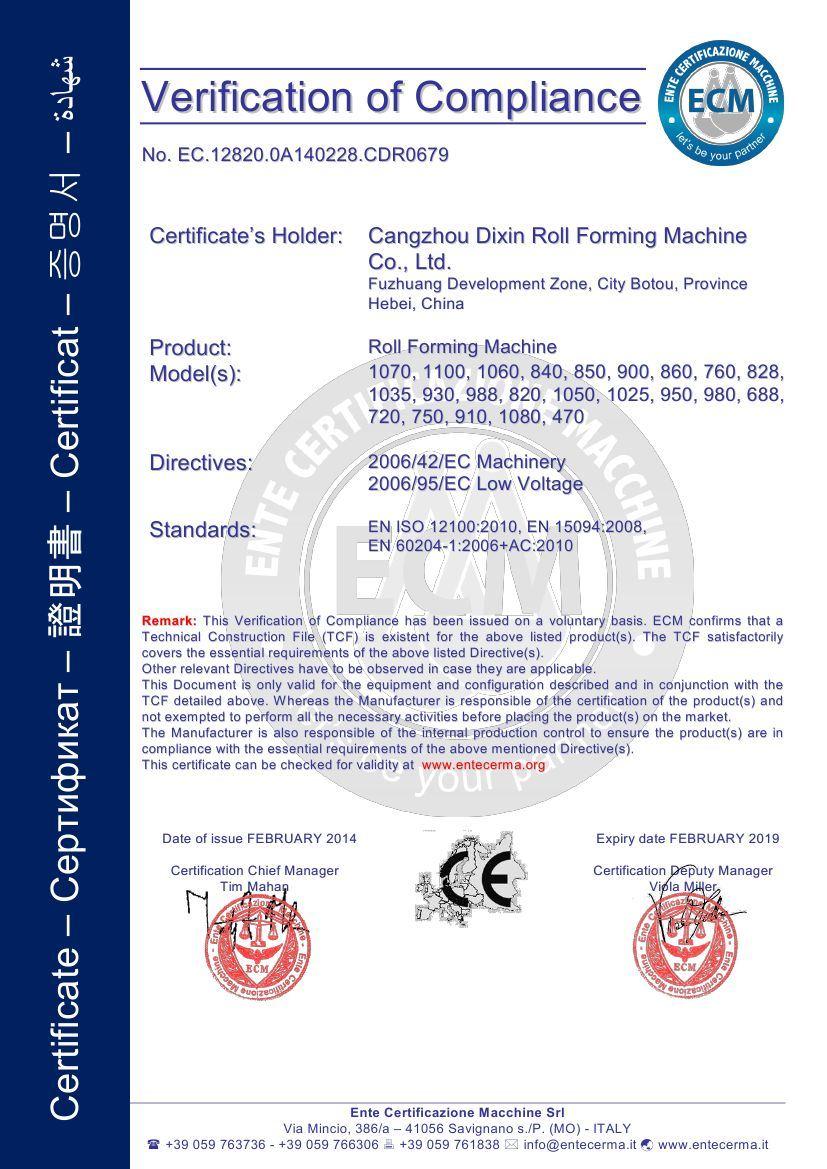

A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.



Q5. How about the after-sale service?

A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.



Q6. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?

A6: 1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour).

      2) Shanghai Hongqiao to Cangzhou West (4.5 hours)

      3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West

When you arrive our station, we will arrange to pick up you there!
