• Model NO.：ZYYX Series
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Machine Type：Ibr Metal Roof Roll Forming Machine
• Cutter Material：Cr12 Mould Steel Being Quenched Treatment
• Cutting Style：Cut to Length
• Controlling System：Mitsubishi PLC & Converter
• Certificate：CE
• Quality System：ISO9001
• Guarantee Time：First Year Free, Lifetime Services
• Rollers Material：No.45 Forged Steel, Plated with Hard Chrom
• Shafts for Rollers：Grand Twice, 72mm Diameter Solid Steel
• Operation Language：English or as Per Client`S Required
• Transport Package：40gp Container for One Machine
• Specification：CE SGS BV ISO
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：20sets,Month

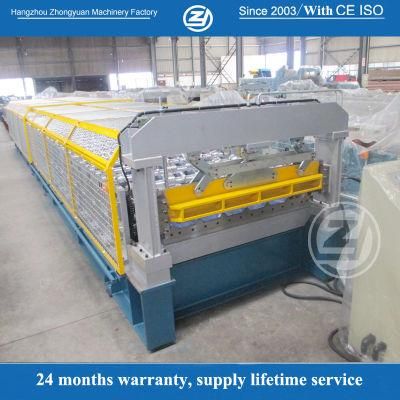

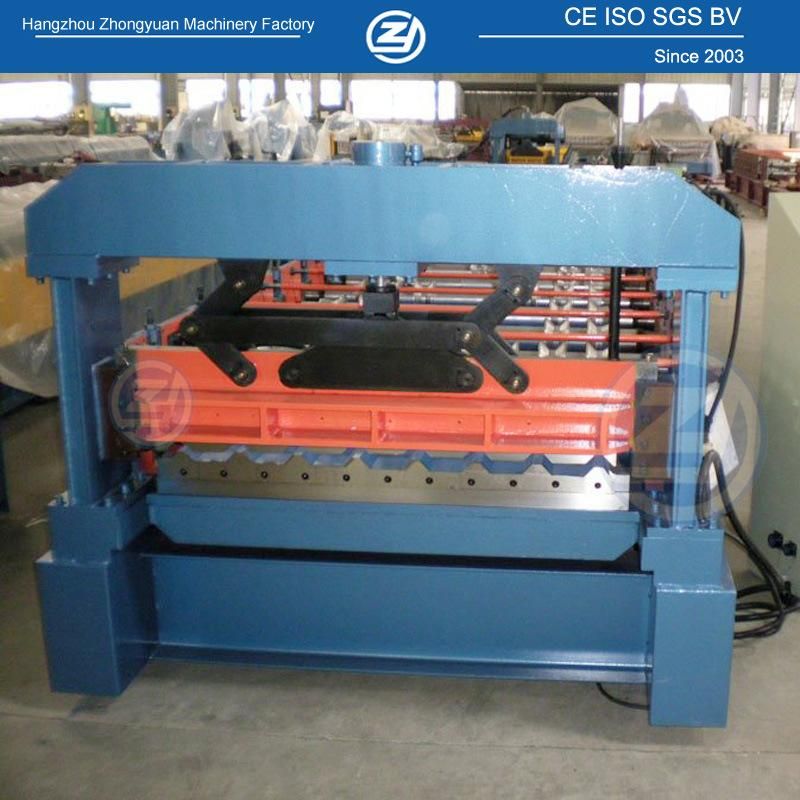

                                       IBR Metal Roof Roll Forming MachineItemSpecification

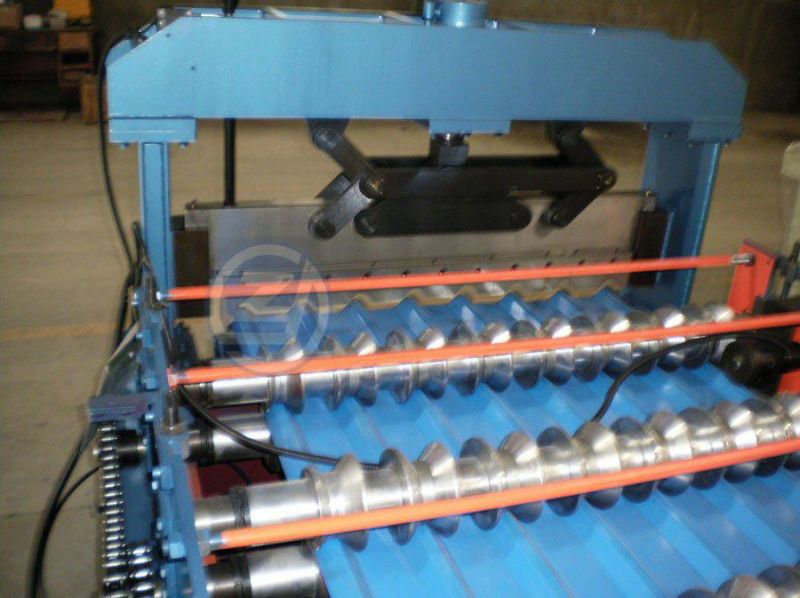

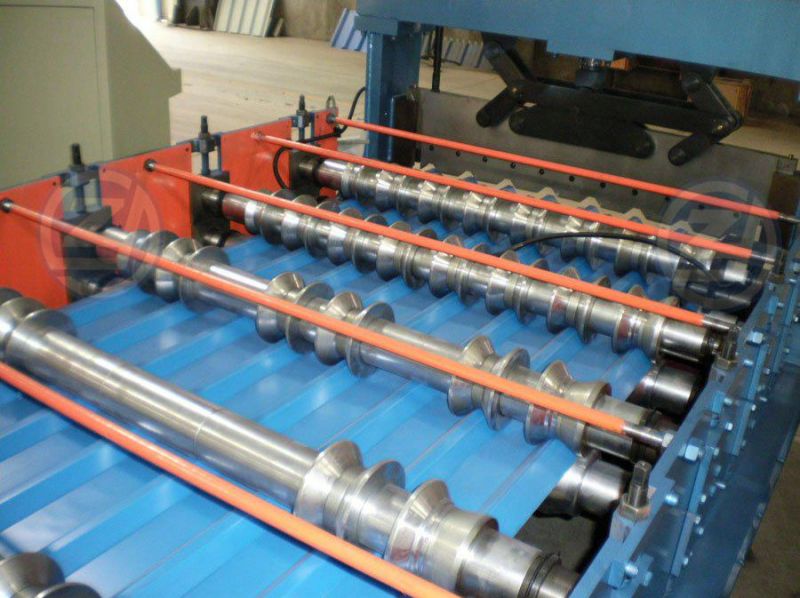

Raw MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.3-0.7Yield strength(mpa)235-550Roller material45# steel , coated with ChromeShaft for rollers Solid shaft with 72mm,processed with cylindrical grinderForming speed(m/min)About 20-25Output speed(m/min)About 12 for 6m length sheetSpeed adjusting modeMitsubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steelLength measurementNemicon EncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)7.5KWTotal power(kw)9.9 KW

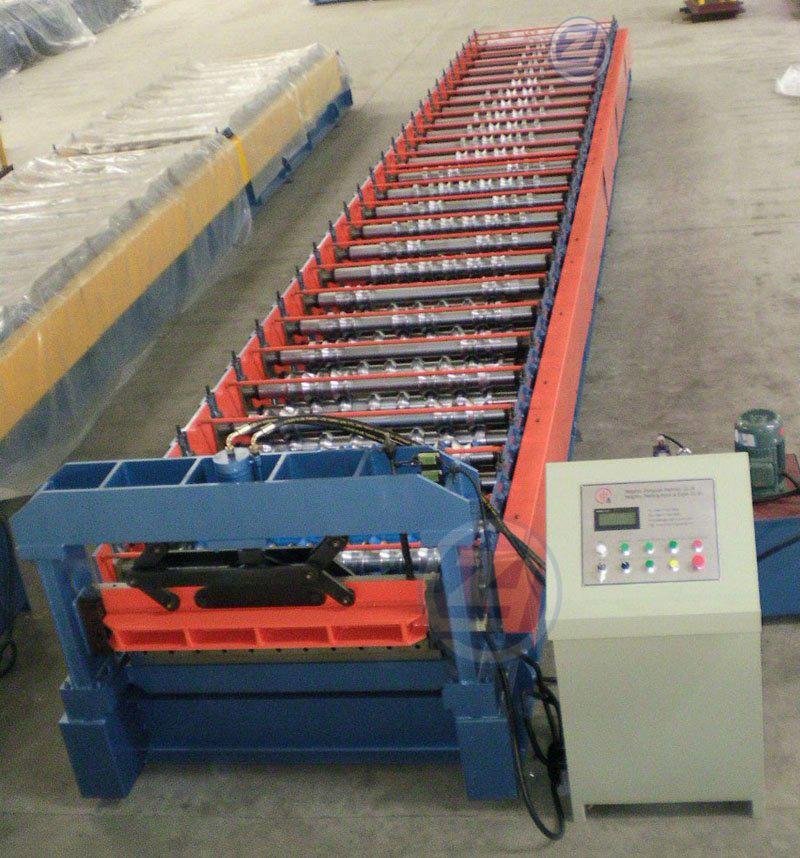

Components of machineDecoiler (manual decoiler and hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set
Process flow
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table







About us
1.  Customize roll forming machines since 2003.
2.  Capacity: 12-15 sets/month
3.  Delivery: in only 5-8 weeks for urgent order
4.  Company occupies 6650, in which 5650 for workshops
5.  Have our own tool center. 12 sets CNC machines.
6. Technician can be sent to your factory to install the machine and train your workers
7. Zhongyuan is a "All-in-house source"
   --from raw material to the final high-precision forming machine. We have our precise tooling center

Please feel free to contact us for more information!
