• Model NO.：ZYYX Series
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Operation Language：English or as Per Client`S Required

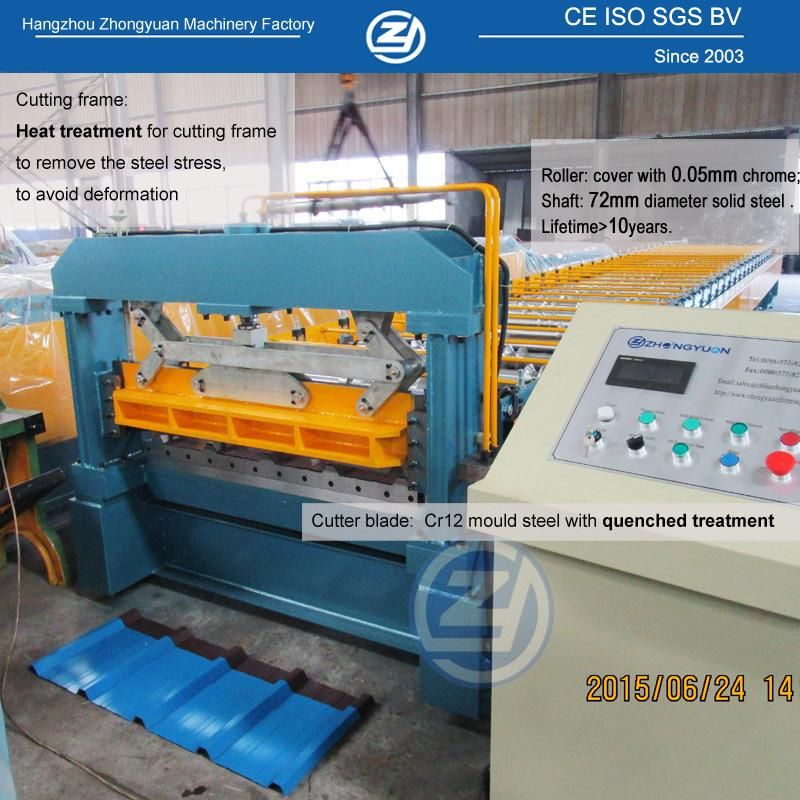

• Rollers Material：No.45 Forged Steel, Plated with Hard Chrom
• Cutter Material：Cr12 Mould Steel Being Quenched Treatment
• Cutting Style：Automatic Cut to Length

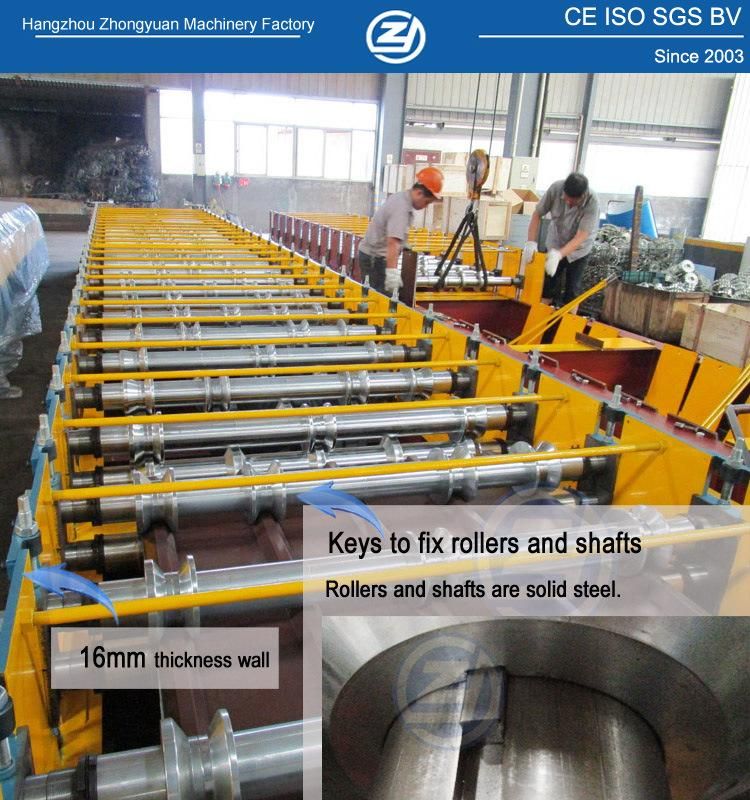

• Shafts for Rollers：Grand Twice, 72mm Diameter Solid Steel
• Quality System：ISO9001
• Certificate：CE
• Guarantee Time：First Year Free, Lifetime Services
• Controlling System：Mitsubishi PLC & Converter
• Machine Type：Metal Roof Roll Forming Machine
• Transport Package：40gp Container for One Machine
• Specification：CE SGS BV ISO
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：20sets,Month

Suitable materialQ235 color steel sheet;0.3-0.7mm, Forming speedabout 20-25m/minPower RequirementMain motor power: 7.5 Kw(Depend on final design)Hydraulic station power: 2.2Kw(Depend on final design)Material of forming rollersNo.45 steel, plated with chrome on sureface.Material of cutter Cr12 mould steel with quench treatment, HRC58-60Material of shaftHigh quality 45# steel with heat treatment.Roller grinder milling.Shaft diameter72mmControlling systemMitsubishi PLC & converterTotal weight of machineAbout 8000KGSMachine's sizeabout 11m×1.5m× 1.6m (Depend on final design)
Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run Out Table









Packing:
1. One 40feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.

Delivery : about 50 days after received advaced payment



Why Choose US?

1. Customize roll forming machines since 2003.
2. Certificate: ISO 9001, CE
3. Mitsubishi PLC controller and transducer from Japan
4.12 months warranty, lifetime technical support
5. Capacity: 12-15 sets/month
6. Delivery: In only 5-8 weeks for urgent order
7. Company occupies 6650, in which 5650 for workshops
8. Have our own tool center. 12 sets CNC machines.
9. Third party inspection: Bureau Veritas, SGS. Can provide assessment report.
10. Machine original brand: Zhongyuan
11. Set up business relationship with companies in more than 40 countries
12.Technician overseas installing and training available
13.Professional online service team, any email or message will be replied within 8 hours.
