• Model NO.：ZYYX Series
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Operation Language：English or as Per Client`S Required

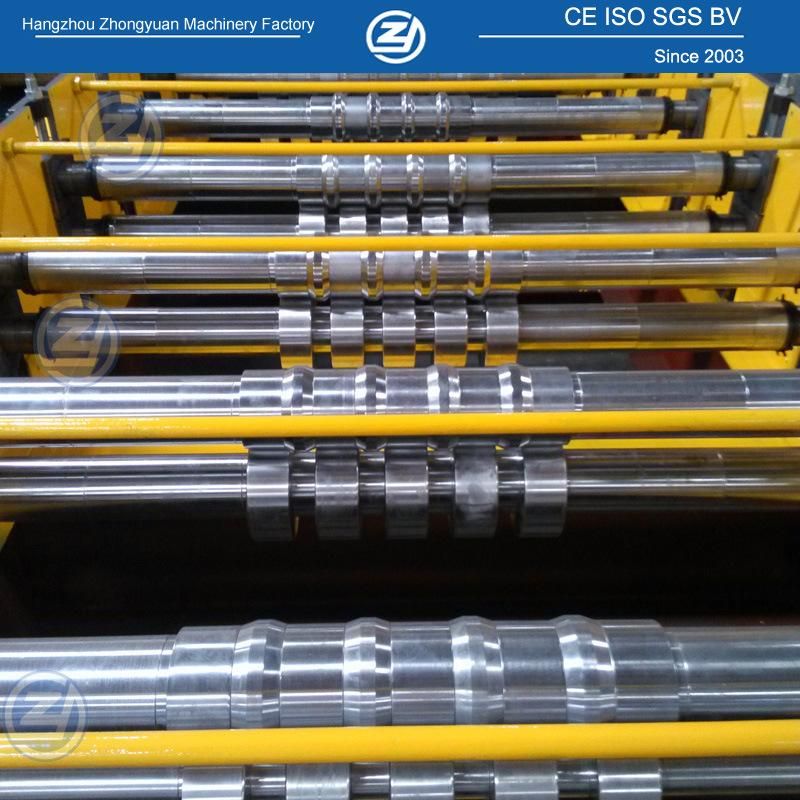

• Rollers Material：No.45 Forged Steel, Plated with Hard Chrom

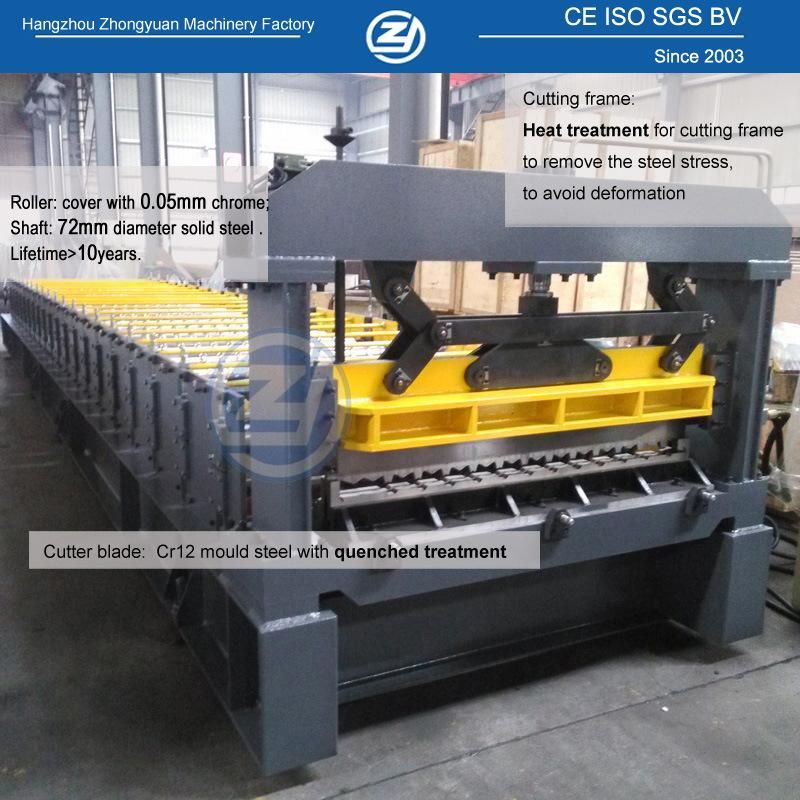

• Cutter Material：Cr12 Mould Steel Being Quenched Treatment
• Cutting Style：Automatic Cut to Length
• Shafts for Rollers：Grand Twice, 72mm Diameter Solid Steel
• Quality Warranty：First Year Free, Lifetime Services
• Quality System：ISO9001
• Controlling System：Mitsubishi PLC & Converter
• Main Motor：7.5kw
• Machine Type：Hc45 Metal Roof Roll Forming Machine
• Transport Package：40gp Container for One Machine
• Specification：CE SGS BV ISO
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：20sets,Month

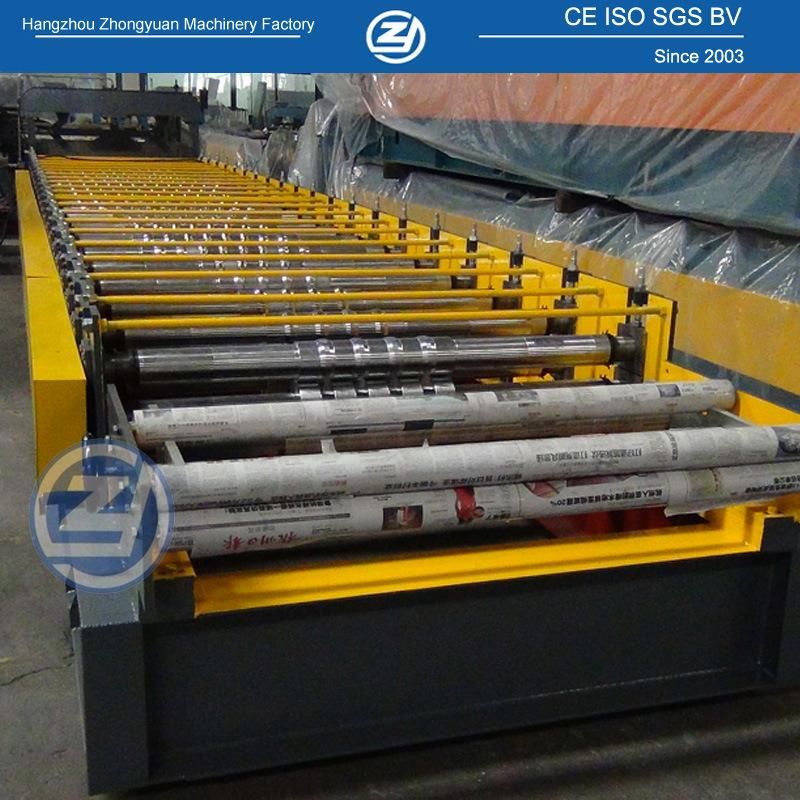

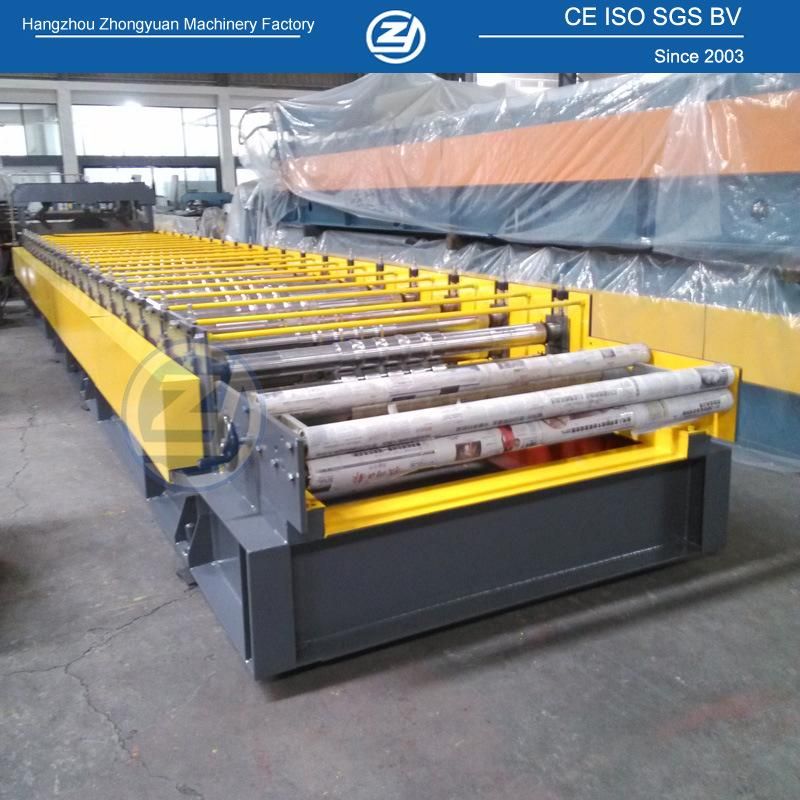

                                      Hc45 Metal Roof Roll Forming MachineItemSpecification
Raw MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.3-0.7Yield strength(mpa)235-550Roller material45# steel , coated with ChromeShaft for rollers Solid shaft with 72mm,processed with cylindrical grinderForming speed(m/min)About 20-25Output speed(m/min)About 12 for 6m length sheetSpeed adjusting modeMitsubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steelLength measurementNemicon EncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)7.5KWTotal power(kw)9.9 KW
Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set

Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run Out Table







Packing:
1. One 40feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.





Please feel free to contact us for more information!
