• Model NO.：Roof Panel Roll Forming Machine
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Forming Type：Roll Forming Machine
• Thickness：0.3-0.8mm

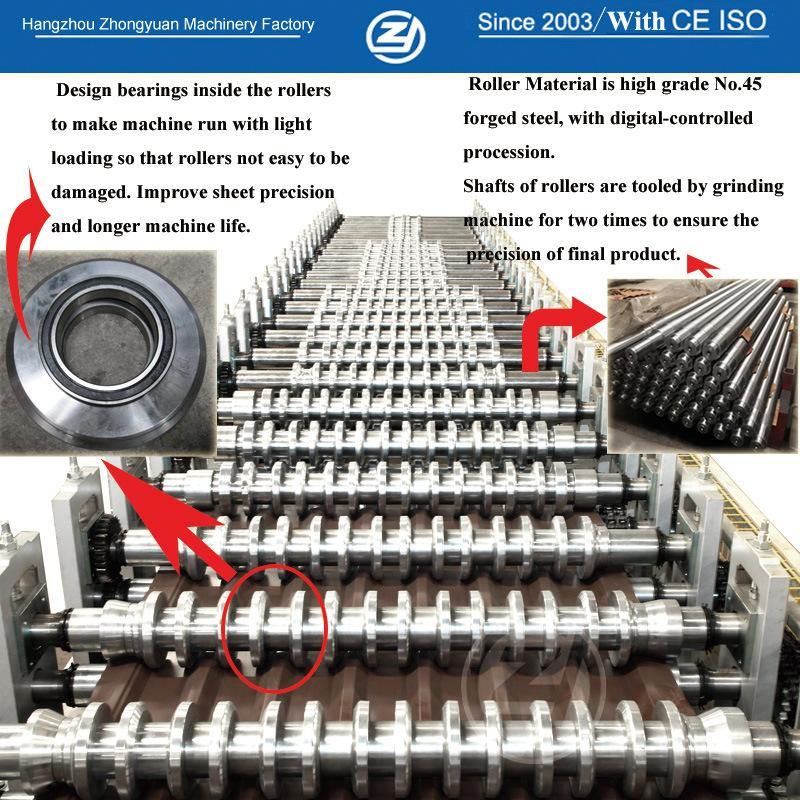

• Rollers Material：No.45 Forged Steel, Plated with Hard Chrom

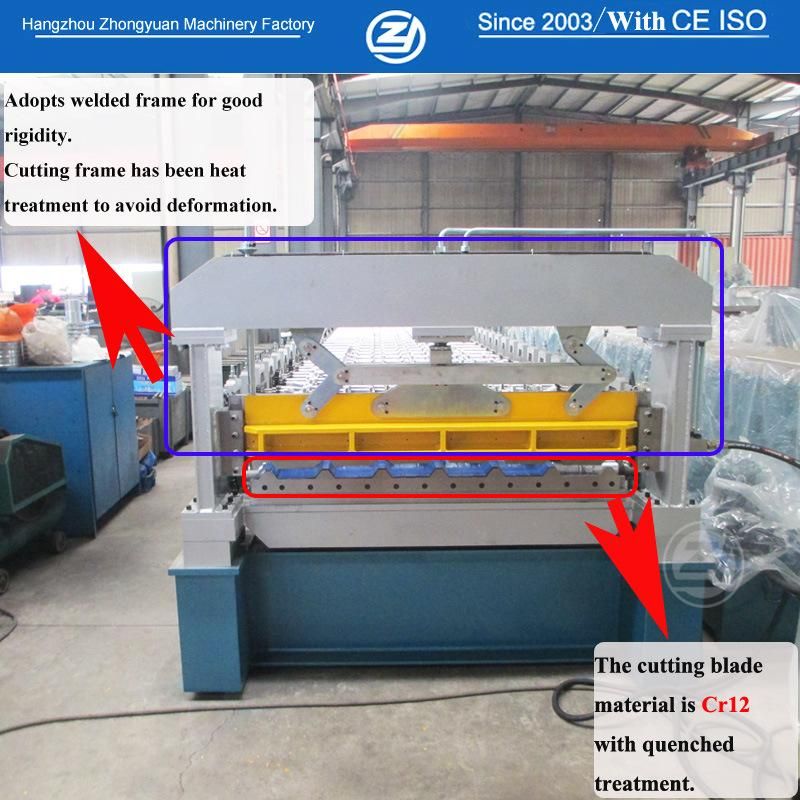

• Cutter Material：Cr12 Mould Steel Being Quenched Treatment
• Voltage：415V,50Hz,3phase
• Model No.：Zyyx30-200-1200
• Machine′s Size：11450*1900*1600mm
• Controlling System：Mitsubishi PLC & Converter
• Cutting Type：Cut to Length
• Transport Package：40gp Container for One Machine
• Specification：CE SGS BV ISO
• Trademark：zhongyuan
• Origin：China
• HS Code：84552210
• Production Capacity：20sets,Month


Technical parameterItemSpecification
Raw MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.3-0.8Yield strength(mpa)235-550Roller material45# steel , coated with ChromeShaft for rollersSolid shaft with 72mm,processed with cylindrical grinderForming speed(m/min)About 20-25Output speed(m/min)About 12 for 6m length sheetSpeed adjusting modeMitsubishi frequency transformerRoller drive                                            Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter materialCr12 mould steelLength measurementNemicon EncoderControl modeMitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)7.5KWTotal power(kw)9.9 KWProcess flowDecoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table
Components of machineDecoiler (manual decoiler and hydraulic decoiler for option)1setFeeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set

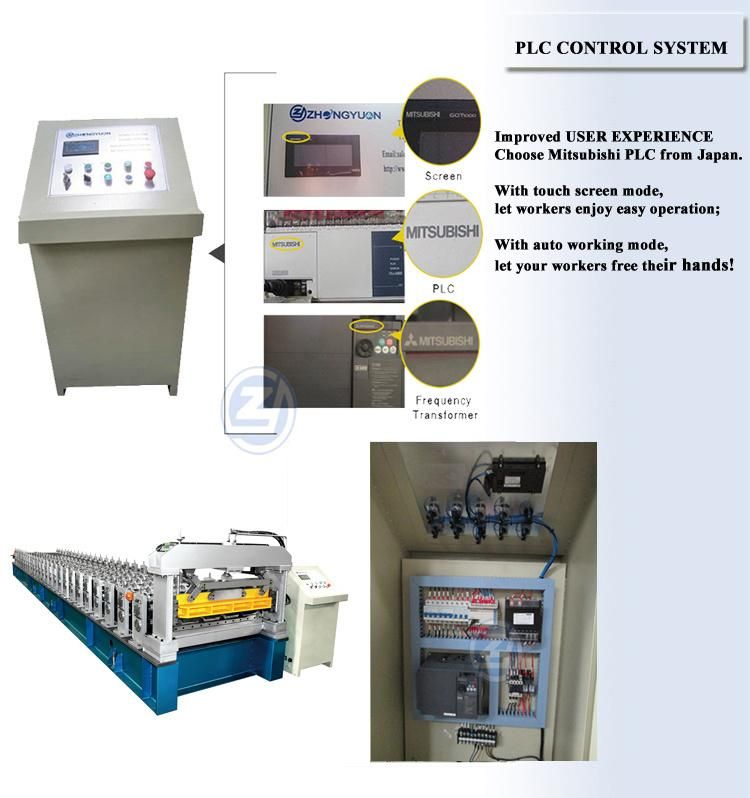

Controller:
Controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!



Why Choose US?

1. Customize roll forming machines since 2003.
2. Certificate: ISO 9001, CE
3. Mitsubishi PLC controller and transducer from Japan
4.12 months warranty, lifetime technical support
5. Capacity: 12-15 sets/month
6. Delivery: In only 5-8 weeks for urgent order
7. Company occupies 6650, in which 5650 for workshops
8. Have our own tool center. 12 sets CNC machines.
9. Third party inspection: Bureau Veritas, SGS. Can provide assessment report.
10. Machine original brand: Zhongyuan
11. Set up business relationship with companies in more than 40 countries
12.Technician overseas installing and training available
13.Professional online service team, any email or message will be replied within 8 hours.

Certificate:







Customer Visit:





FAQ:

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A:  1) We record the testing video for your reference. Or,
    2) We welcome your visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).

Get Free:
"Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
