• Model NO.：ZYYX Series
• Customized：Customized
• Advantage：Work Flexible
• Condition：New
• Place of Origin：Zhejiang, China (Mainland)
• Brand Name：Zhongyuan
• Certificate：SGS, BV, CE, ISO
• Power：22kw
• Suitable Raw Material：Color Steel Sheet or Galvanized Steel Sheet
• Control System：Mitsubishi PLC
• Forming Speed：About 12 M,Min
• Total Weight：About 15000kg
• Whole Line′s Dimension：About 26m*1.8m* 1.6m (Depend on Final Design)
• Transport Package：1*40gp+1*20 Gp
• Specification：CE SGS BV
• Trademark：zhongyuan
• Origin：Zhejiang, China
• HS Code：84552210
• Production Capacity：5sets,Month

Technical parameterItemSpecification

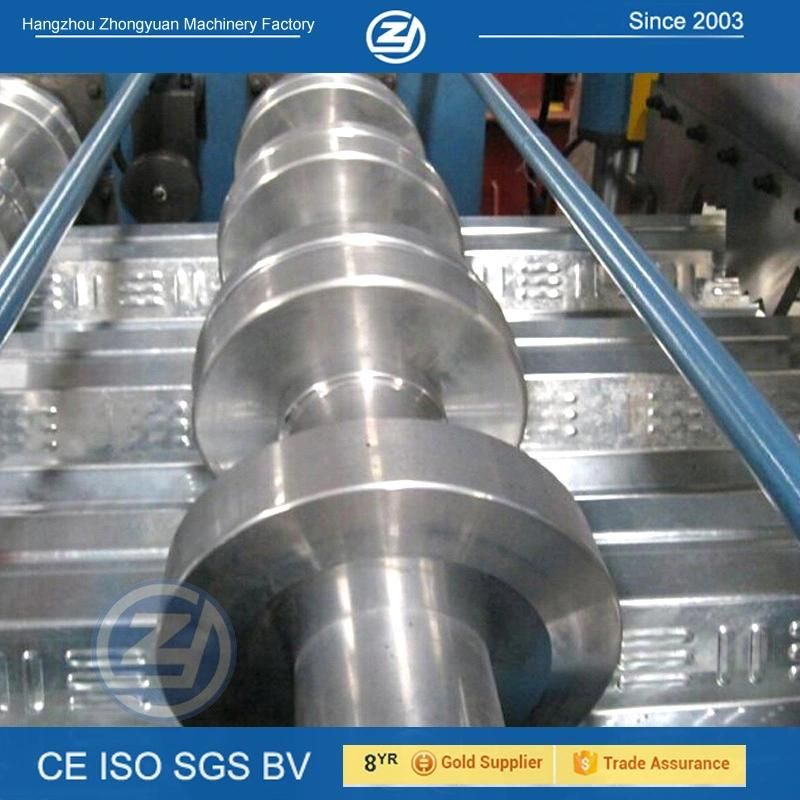

Raw MaterialTypePre-painted steel coil & galvanized coilsThickness(mm)0.8-1.2Yield strength(mpa)235-345Roller material45# steel , coated with Chrome Shaft for rollers Solid shaft with 82mm,processed with cylindrical grinderForming speed(m/min)12Speed adjusting modeMitsubishi frequency transformerRoller drive                                               Decelerating motor + Chain driveCutting modeHydraulic cuttingCutter material Cr12 mould steel Length measurementNemicon EncoderControl mode Mitsubishi PLCOperating modeButton + Mitsubishi Touch screenMain motor power(kw)11x2KWTotal power(kw)27.5KWProcess flowDecoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table

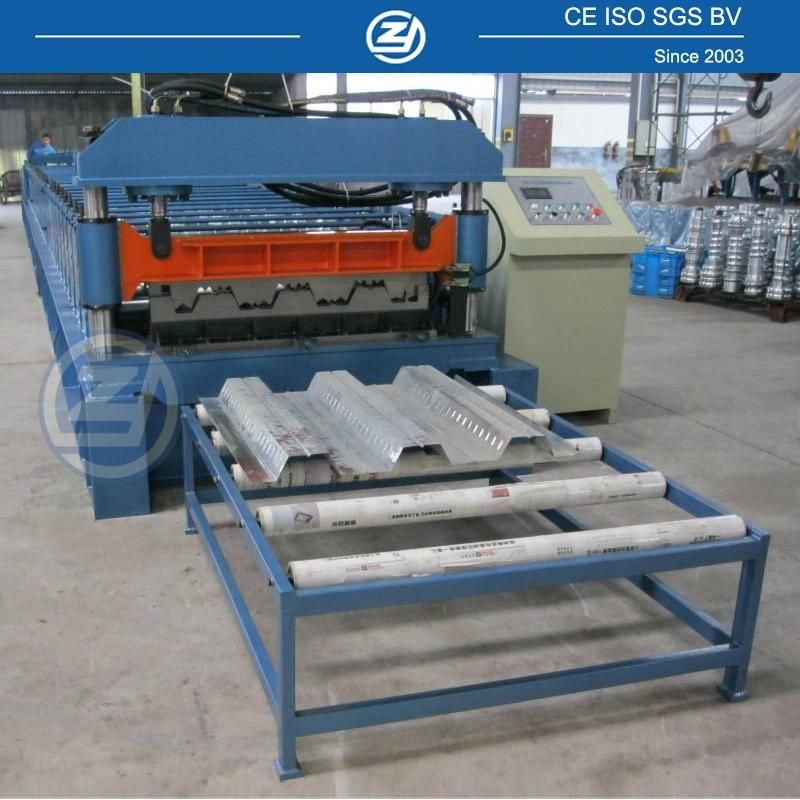

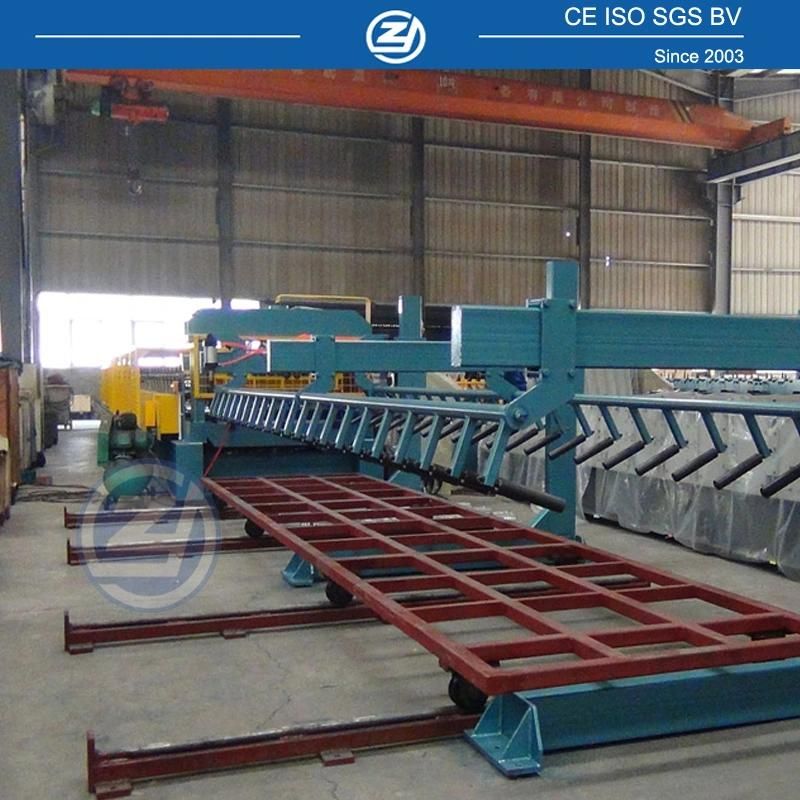

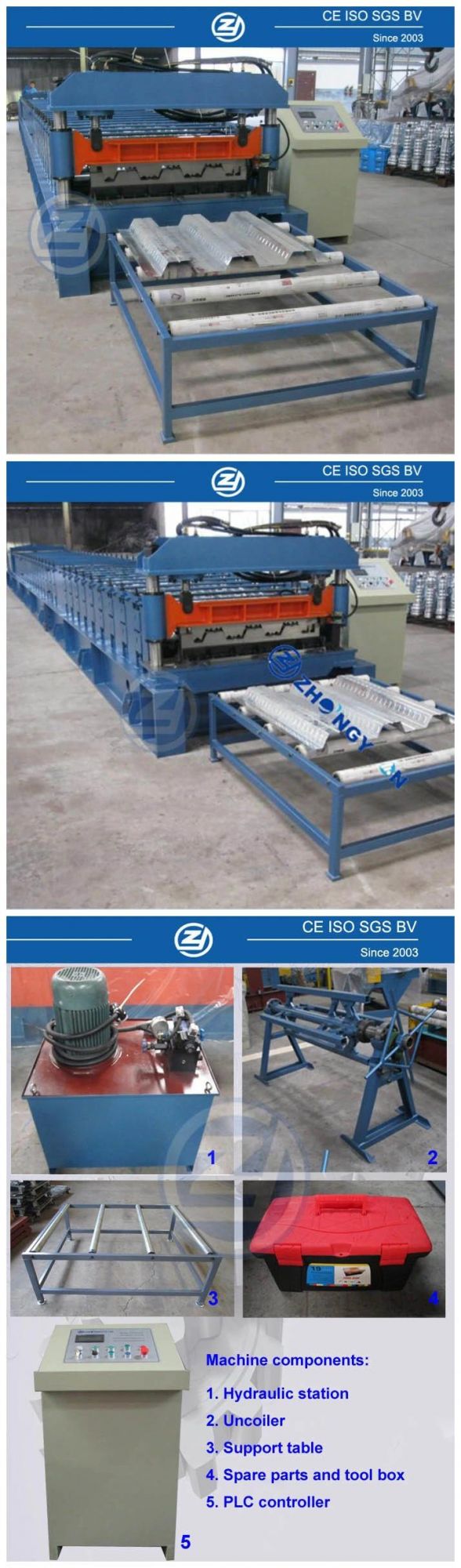

Components of machineDecoiler (manual decoiler and hydraulic decoiler for option)1set  Feeding & guiding device1setMain roll forming machine1setHydraulic cutting system1setControlling system1setRun out table (auto. Stacker for option)1set







About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1.  Capacity: 12-15 sets/month
2.  Delivery: in only 5-8 weeks for urgent order
3.  Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
     --from raw material to the final high-precision forming machine. We have our precise tooling center.
5.  You can rely on our team!
      We have engineers with experience more than 15 years in metal forming industry.
