Double Row Keel Steel Roll Forming Machine (Double Row)

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Roll Forming
  • Power Source：Electric
  • Feature：Automation
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：Double Row
  • Customized：Customized
  • Advantage：Use Widely
  • Condition：New
  • Name：Stud Roll Forming Machine
  • Power：5.5kw+4kw
  • Decoiler：Manual or Hydraulic
  • Transport Package：No Packing
  • Specification：CE SGS
  • Trademark：SAIBO
  • Origin：Jiangsu, China
  • HS Code：84552210
  • Production Capacity：300sets,Year

Description

1Suitable MaterialColored Steel plate, Galvanized steel,G5502Width of the raw materialAccording to the final profile3Thickness1.5mm


2. Machine Detailed Parameters

1
Roll Forming
 Double row roll forming machine2
Machine structure
 Wire-electrode cutting structure3Total power

Motor power-5.5kw

Hydraulic power-4kw4Roller stations

About 10 stations

5

Productivity

0-15m/min6

Drive system

By chain7

Diameter of shaft

¢56mm solid shaft8

Voltage

380V 50Hz 3phases (Customized)9

Container need

20GP container10

Color Of The Machine

Yellow and blue

11

Deliver Time

70 days12

Terms Of Payment

30%T/T 70% pay before shipment

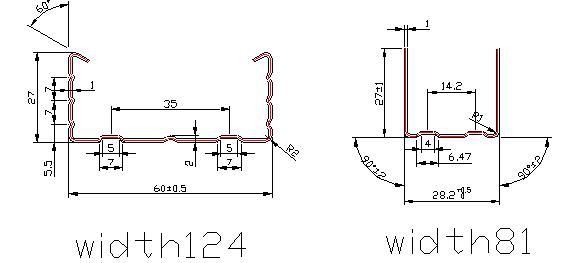

3. Profile drawing
Double Row Keel Steel Roll Forming Machine (Double Row)


4. The Chart of Process Flow

Double Row Keel Steel Roll Forming Machine (Double Row)

 Delivery1. Sea shipping.2. Air shipping for sampling.3. Train shipping for landlocked countries serviced by CRExpress Europeblock train ferry.
Double Row Keel Steel Roll Forming Machine (Double Row)
About Saibo
Double Row Keel Steel Roll Forming Machine (Double Row)
Saibo Science & Technology - 20 Years Experience Manufacturer in Developing and Exporting.Zhangjiagang City Saibo Science & Technology Co., Ltd. is a professional manufacturer specializing in the developing and exporting of different kind of high speed roll forming machine, Main use of our roll forming machine is for Solar Structures, PEB project and also for Cable tray, Guard Rail, Roofing Sheets, Floor Decking and all of the different kind purlin/channel which makes from GI/PPGI/PPGL/Aluminium/Aluminium alloy/SS . Our company, which is located in Zhangjiagang city, Jiangsu province, near Shanghai City with superior geographic position and convenient transportation.
Double Row Keel Steel Roll Forming Machine (Double Row)

We engaged in the steel structure industry in 20 years and devoted to developing some steel structure machines with professional technology and reasonable price, we supply the best machines for our new and regular customers. All of our technology team and marketing person all more than 10 years working. In particular, we are a leading exporter in the field of steel structure construction and can provide professional service, high quality,  through design, and installation. Our goal is" future by heartiness, faith leads to the world".
Double Row Keel Steel Roll Forming Machine (Double Row)

International certification, National Certificate of equipment verification, and more than 30 invention patents are done in Saibo Machinery.

Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV

National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
