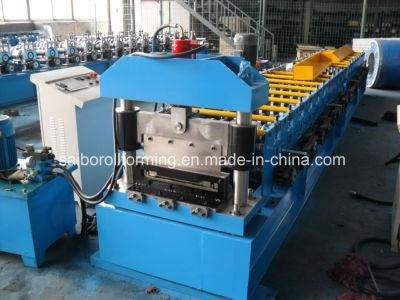

Squareness Down Pipe Roll Forming Machine

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Mold Forging
  • Power Source：Electric
  • Feature：High Efficiency
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：YX45-95
  • Customized：Customized
  • Advantage：Easy to Maintenance
  • Condition：New
  • Product Name：Downspout Roll Forming Machine
  • Power：3kw+5.5kw+2.2kw
  • Steel Thickness：0.5-0.7mm
  • Transport Package：No Packing
  • Trademark：SAIBO
  • Origin：Jiangsu, China
  • HS Code：84552210
  • Production Capacity：300sets,Year

Description

NoSpecification of the material

1

Suitable MaterialColored Steel plate, Galvanized steel

2

Width of the raw materialBased on profile drawing3Thickness0.5-0.7mm

Profile drawing:

Squareness Down Pipe Roll Forming Machine

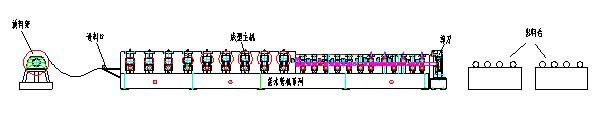

The Chart of Process Flow

Squareness Down Pipe Roll Forming Machine

Manual Uncoiler-Roll Forming-Cutting-out table


Specification of Components

No Technical Specification & Remark1

Manual Uncoiler

Squareness Down Pipe Roll Forming Machine


  • Width of feeding: 350mm
  • Capability: 3 Ton
  • Mode of expand &fight: inner expand &fight by manual
  • Way of feeding: manual
2

Main Roll Forming Machine

Squareness Down Pipe Roll Forming Machine

  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: ¢65mm material: SAE1045 with tempering
  • Main frame by 350H beam welding
  • Machine structure: wall board panel
3

Hydraulic cutting system

Squareness Down Pipe Roll Forming Machine

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,5.5KW
  • Length measuring: Automatic encoder length measuring
4

Bending machine

Squareness Down Pipe Roll Forming Machine

  • Control system: Strong electrical current
  • Max bend angle: 90°
  • Function: bend and fasten at the same time
  •
