Downspout Roll Forming Machine (YX-134)

Zhangjiagang City Saibo Science & Technology Co., Ltd.
  • Type：Rolling Machine
  • Forging Forming Method：Mold Forging
  • Power Source：Hydraulic Pressure
  • Feature：High Efficiency
  • Certification：ISO9001, CE
  • Warranty：12 Months

Base Info

  • Model NO.：YX-134
  • Customized：Customized
  • Advantage：Use Widely
  • Condition：New
  • Product Name：Downspout Roll Forming Machine
  • Machine Structure：Wall Board
  • Main Power：4kw
  • Transport Package：No Packing
  • Trademark：SAIBO
  • Origin：Jiangsu, China
  • HS Code：84552210
  • Production Capacity：300set,Year

Description

Specification of the material1Suitable MaterialColored Steel plate, Galvanized steel2Width of the raw materialAccording to the final profile3Thickness0.4-0.7mm

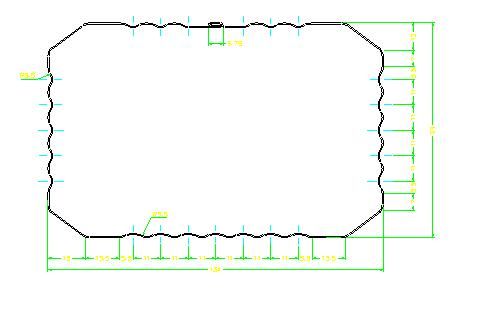

Profile drawing:
Downspout Roll Forming Machine (YX-134)

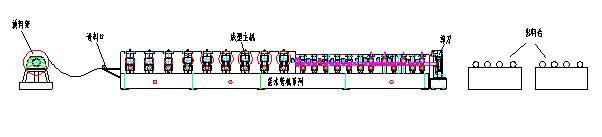

Layout of the machine
Downspout Roll Forming Machine (YX-134)

Machine Detailed Parameters:1Machine structureWall board structure2Total powerMotor power-4kw
Hydraulic power-5.5kw3Roller stationsAbout 20 stations4Productivity0-15m/min5Drive systemBy 1.0 inch single chain6Diameter of shaft¢65mm solid shaft7
 Voltage380V 50Hz 3phases (Customized)8
 Container need40GP container


Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.
