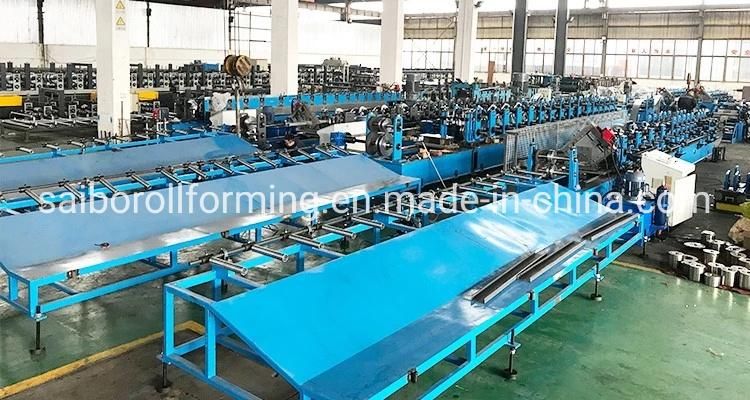

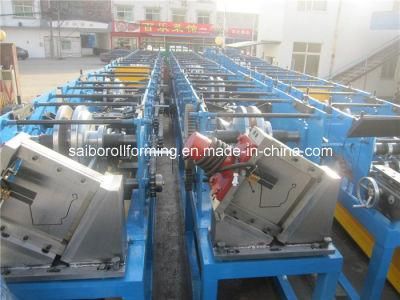

Yx35.5-35.5 Square Pipe Roll Forming Machine Line
Zhangjiagang City Saibo Science & Technology Co., Ltd.- Type：Rolling Machine
- Forging Forming Method：Roll Forming
- Power Source：Electric
- Feature：High Efficiency
- Certification：ISO9001, CE
- Warranty：12 Months
Base Info
- Model NO.：YX35.5-35.5
- Customized：Customized
- Advantage：Use Widely
- Condition：New
- Color：Blue and Yellow
- Transport Package：Sea Packing
- Specification：CE SGS
- Trademark：SAIBO
- Origin：Jiangsu, China
- HS Code：84552210
- Production Capacity：300sets,Year
Description
2. Machine Detailed Parameters
Roll Formin
Machine structure
Motor power-5.5kw
4
About 16 stations + one station for rectify
Productivity
Drive system
Diameter of shaft
Voltage
Color Of The Machine
Yellow and blue
Deliver Time
Terms Of Payment

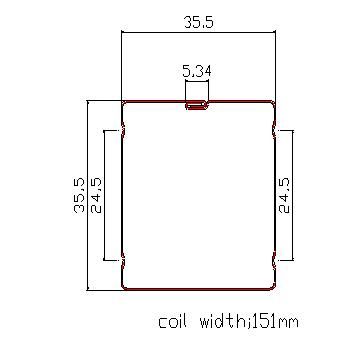

3. Profile drawing

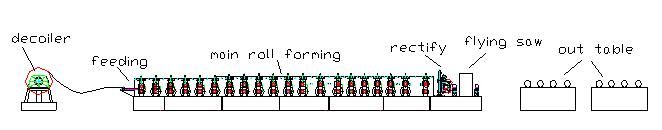

4. The Chart of Process Flow
5. Specification of Components
(1) 3T manual decoiler
- Adopt automatic hydraulic system for expand
- Width of feeding: 350mm
- Capability: 3 Ton
- Bound of expand &fight: 380mm-520mm
- Mode of expand &fight: inner expand &fight by manual

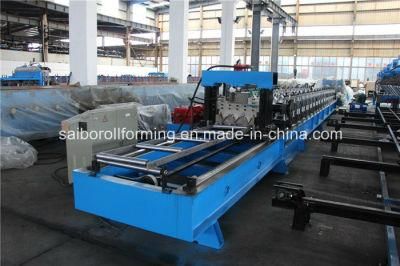

(2) Main Roll Forming Machine
- Roller material:ASTM1045 chrome plated surface with chrome
- Shaft diameter: ¢56mm material: SAE1045 with tempering
- To avoid accidents, the driven parts will be covered with the protective cover
(3) Machine sturcture
- Main frame by 350H beam welding
- Machine structure: Wall board structure
(4)Hydraulic cutting system
- Cutting after forming: Cut the sheet after roll forming to required length
- Adopt flying shear cutting
- Material of blade:Cr12, 58-62 HRC hardness
- Cutting power: 2.2KW
- Length measuring: Automatic encoder length measuring
- Tolerance of length: +/- 1.5mm for each piece end product
(5) Computer Control Cabinet
- Programmable setting of profile length and quantity
- Operating system language: English and Chinese
- Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
- PLC: Panasonic or customerization
