Steel Floor Decking Machine Hydraulic Machine (YX75-900)
Xiamen Xinhonghua Machinery Co., Ltd.- Forming Steps：18steps
- Motor Power：37kw
- Transport Package：Standard Package of Export
- Specification：YX75-900
- Trademark：XHH
- Origin：Xiamen, China
Base Info
- Model NO.：YX75-900
- HS Code：84552290
- Production Capacity：10-15 Sets,Month
Description
Basic Info.
Model NO. YX75-900 HS Code 84552290 Production Capacity 10-15 Sets/MonthProduct Description
Steel Floor Decking Machine Hydraulic Machine (Yx75-900):The informations of YX75-900 Floor Decking Machine, Decking Forming Machine and Decking Machine are as follows:
1. Motor Power: 37KW
2. Material Thickness: 0.8-1.6mm
3. Material Width: 900mm
4. Forming Steps: 18Steps
Main Accessories:
A. Main forming machine,
B. 5 tons manual uncoiler,
C. Hydraulic system,
D. Computer controlling system,
E. Hydraulic forming cutter,
F. Run Out Tables (4 sets),
G. Operation Instruction.
| 1. | Dimension | 16000*1800*1500mm |
| 2. | Weight | 20Tons |
| 3. | Hydraulic Motor Power | 37KW |
| 4. | Voltage | 220V/60HZ/3PH |
| 5. | Height of Floor Decking | 75mm |
| 6. | Effective Width | 900mm |
| 7. | Material Width | 1219mm |
| 8. | Thickness | 0.8-1.6 |
| 9. | Forming Steps | 18 |

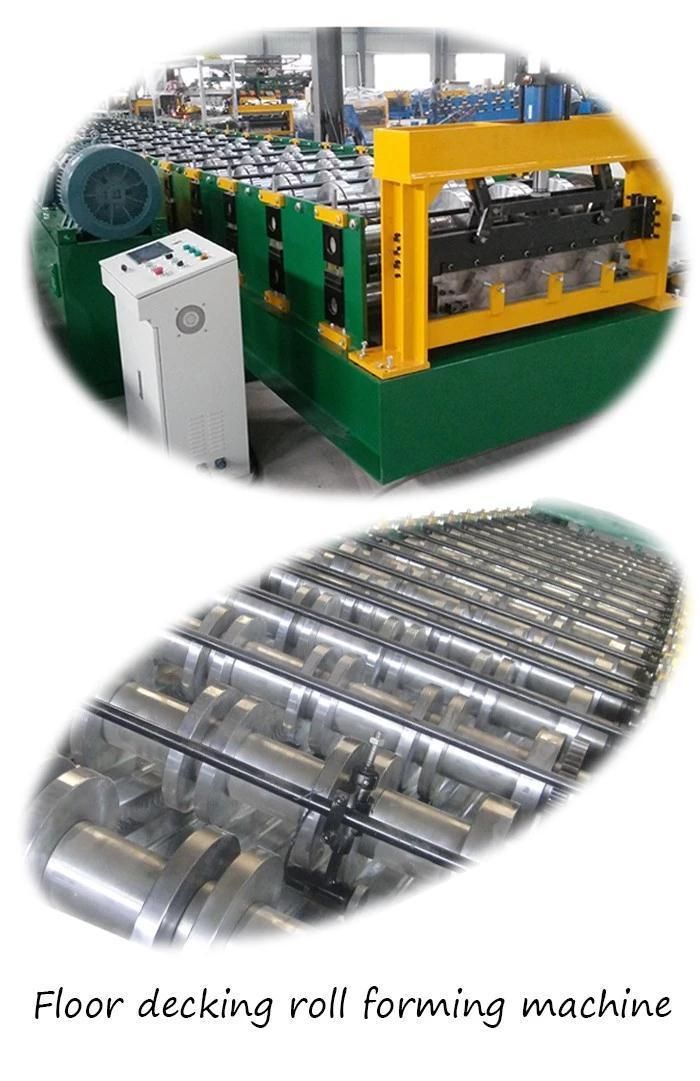

2. Pictures of floor decking machine
