• Model NO.：KLS38-220-530
• HS Code：84552290
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. KLS38-220-530 HS Code 84552290 Production Capacity 20 Sets/Month

Product Description

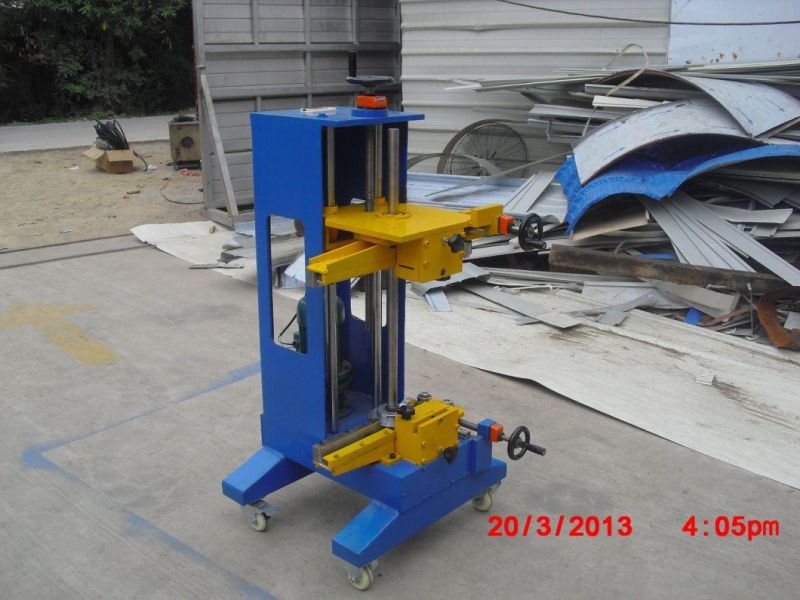

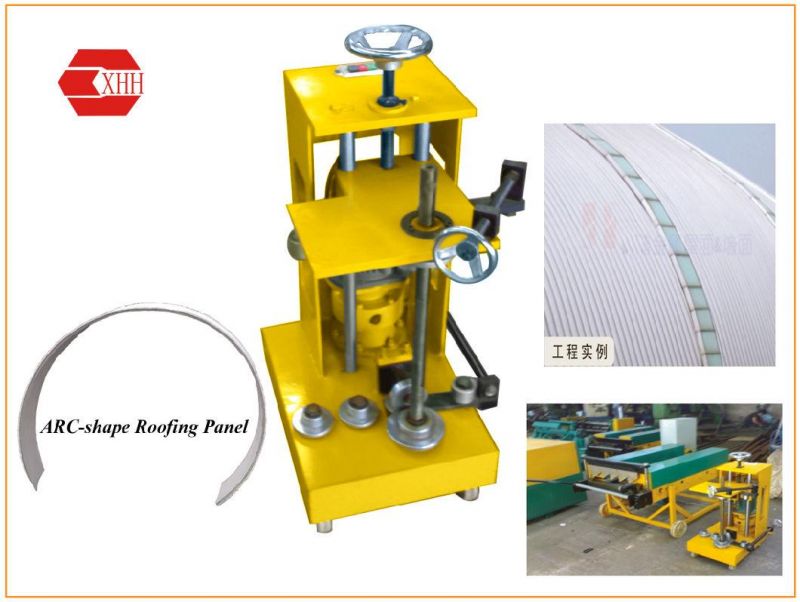

Small Standing Seam bending Forming Machine with Adjustment (KLS38-220-530):

The informations of Manual Adjustment bending Machine for Convex Curved or Concave Curved, manual bending machine, bending machine manual for aluminum sheets,   bend art bending machines are as following:

Technical data:

1.	Size	2000*1100*1200mm
2.	Weight	1500KGS
3.	Voltage	380V/50HZ/3PH
4.	Motor Power	2.2KW
5.	Power for Hydraulic	0.75KW
6.	Forming Steps	8 steps
7.	Material Thickness	0.5-0.9mm
8.	Standing Height of Roofing	38mm
9.	Thickness for common use and testing machine	0.6mm, 0.7mm
10.	Effective Width of Roofing	220-530mm
11.	Material Width	316-626mm

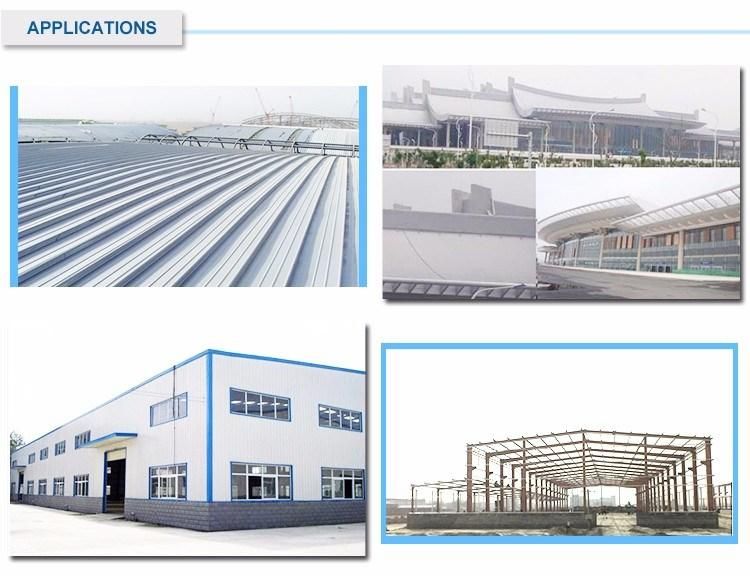

◊Usage: Curving normal galvanized and prepainted galvanized steel, and Aluminum roof to curve with convex or concave shape, only convex or concave curved for one piece roofing;

1. Company Certificates

2.  Factory & team show:


-----------------------------------------------------Company Show-------------------------------------------------------

Xiamen XinHongHua Machinery Co., LTD. has been specialized in designing and assembling cold rolled forming machines for 12 years since it was founded in 2004.

Main machines:

Al- Mg- Mn Straight & Tapered Standing Seam Roofing Forming Machine, Fully Automatic Curving Machine, Fully Automatic Adjustable C Purline forming machine, Automatic Interchange C, Z Purline Machine, Flattening Slitting Cutting Machines, Colored Steel Roofing Panel Forming Machine,Tile Roofing Machine, Floor Decking Machine and Highway Rail Forming Machines, etc.



4. Exhibitions and Customers
