• Model NO.：Colo-800D-L2
• Quality：100% Promise
• Transport Package：Carton
• Specification：Intelligent Coating System
• Trademark：COLO
• Origin：China
• HS Code：8424899990
• Production Capacity：1000sets,Month

Basic Info.

Model NO. Colo-800D-L2 Quality 100% Promise Transport Package Carton Specification Intelligent Coating System Trademark COLO Origin China HS Code 8424899990 Production Capacity 1000sets/Month

Product Description

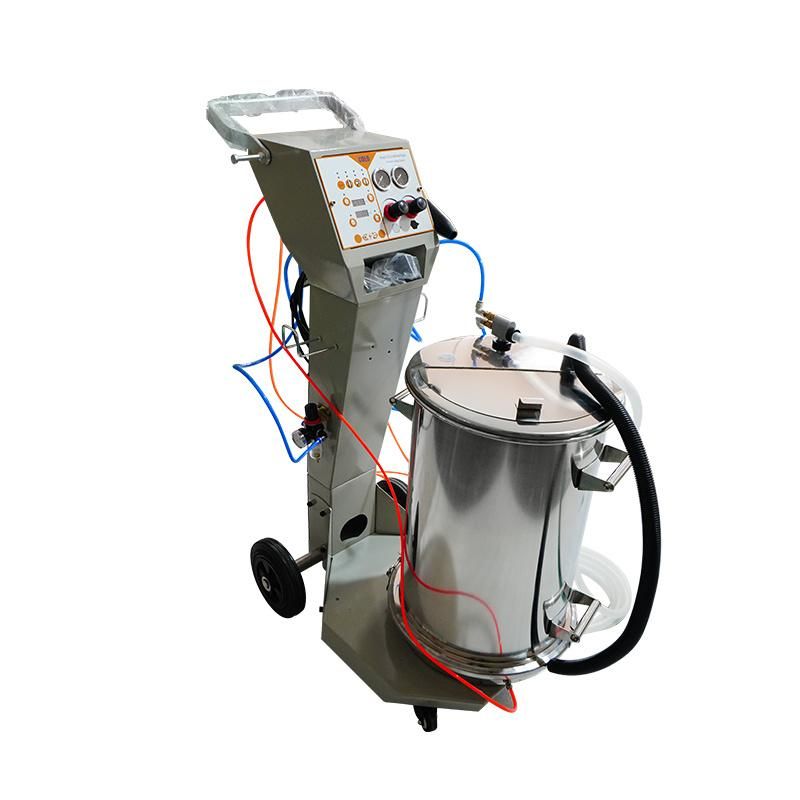

Electrosatic Powder Painting Equipment (Sistema de pintura en polvo)
Colo-800D-L2,the controller has one-touch intelligent operation button good for flat parts, complicated parts and recoat parts.New trolley design, more compact and exquisite, and more flexible.
Digital display,intelligent coating system,high coating performance and great coating result for long life span.



Specification
1.Digital control system, 3 preset intelligent model for flat,complex coating and recoating.
2.Auto and manual mode ,more flexible and quicker for coating diferent parts.
3.Could supply a large amount of powder under low pressure.
4.The inside circuit region is independent sea, avoiding the powder incoming.
5.Good quality dust-proof powder switch, good quality press key.
6.Control the useless power strictly, low heating value, work continuously and steadily.
7.Beautiful look with light weight
8.Excellent coating gun quality COLO-07 spray gun
9.50L powder hopper for enough powder storage ,also we have diferent size hoppers

Applicaton
-For coating thermosetting powders on the parts, powder coating such as: polyester powder,epoxy powder,mix    powder etc.
-Coating parts like: car rim,bicycles,steel pipes,gas cyclinder,steel furniture,lock,gas cylinder etc.

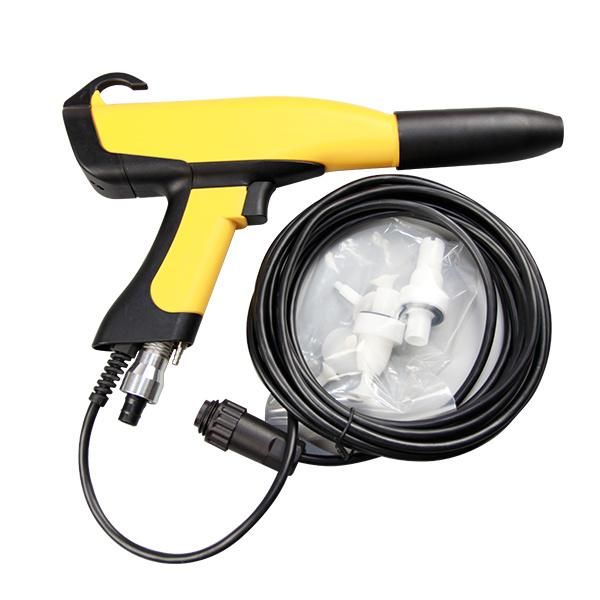

COLO good looking quality 08 gun
Spare parts avaiable

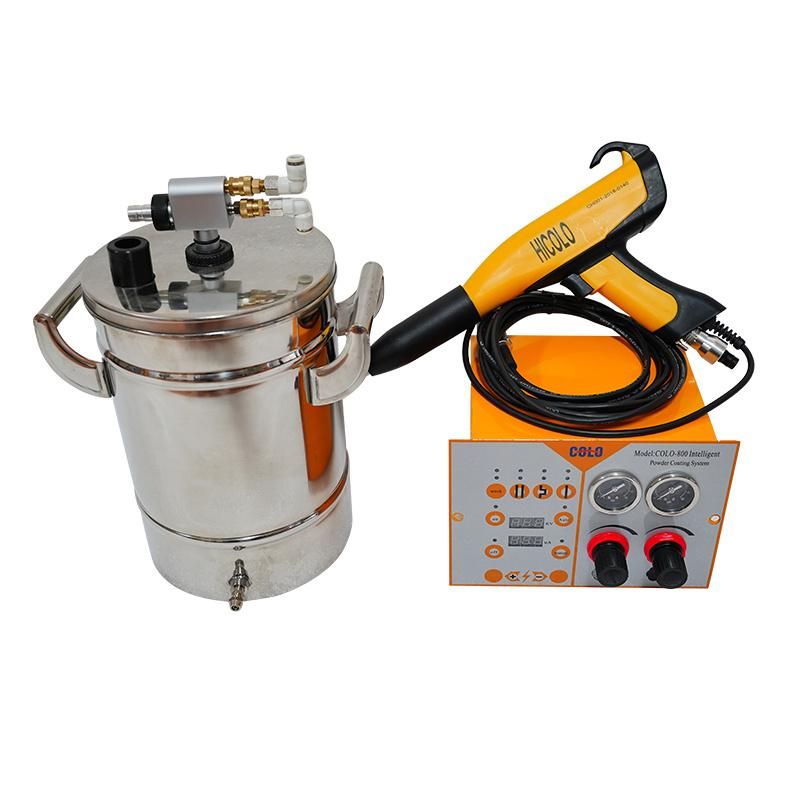

Small Hopper System
All of our machines can equipped with different hoppers

Technical Parameters
Electrical data
Power range                                  220V
Frequency                                     50HZ
Temperature range in use                      0 ºC  - +40 ºC
Powder Gun
Gun weight:    .........                    500G
Rated output voltage ...…                      24VDC
Input voltage     ......…                       220kv
Maximum output current  ...…                   180Ua(max)
Maximum output voltage......                   0-100KV (  adjustable)
Maximum powder injection :...…                    600g/min
Polarity .........                                negative (-)
Pneumatic data
Maximum input-air pressure ........                 10kg/cm
Optimum input-air pressure.....                        6kg/cm
Minimum input-air pressure   ...                      4kg/cm
Maximum water vapor content or compressed air …..      1.3g/N m3
Maximum oil vapor content of compressed air   .....     0.1mg/ m3
Maximum compressed-air consumption...…            11 m3/h

Our Factory
We are a typical Chinese supplier and specialized in the research, development and production of powder coating equipments, such as powder coating machine, powder coating booth, powder curing oven, reciprocator,powder coating gun replacement parts.We insist in offering superior quality products and efficient service.If you are interested in our products,please feel free to contact us,thank you.
