Powder Coating Spray Booth and Oven
Hangzhou Kafan Machinery & Equipment Co.,Ltd.- Type:Powder Coating Equipment
- Coating:Powder Coating
- Substrate:Steel
- Certification:CE, ISO
- Condition:New
- Booth Internal Size:L1500*W2300*H1500mm
Base Info
- Model NO.:Colo-2315 Colo-1864
- Oven Internal Size:W1600*H1800*D1400mm
- Oven Source:Electric
- Warranty:12month
- Customize:Size for Oven and Booth Could Be Ordered
- Transport Package:Carton or Wooden Box
- Specification:Manula
- Trademark:COLO
- Origin:China
- HS Code:8424899990
- Production Capacity:500sets,Month
Description

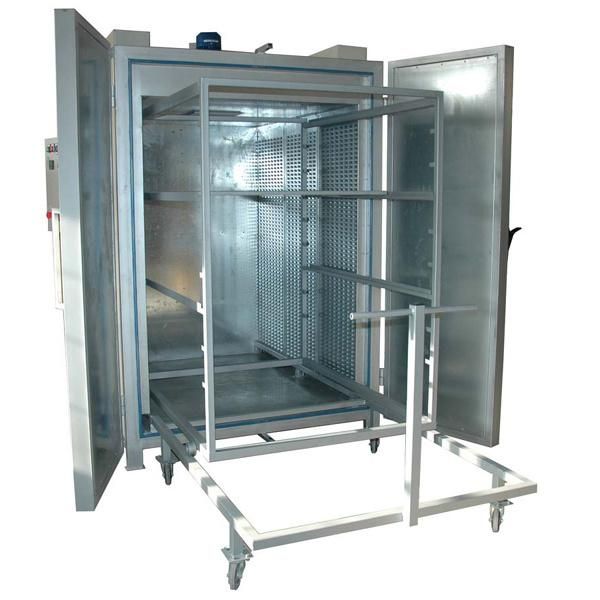

Powder Curing Oven
This Powder coating oven used for curing the workpiece which has been spraying during the powder coating. When a thermoset powder is exposed to elevated temperature, it begins to melt, flows out, and then chemically reacts to form a higher molecular weight polymer in the surface of the workpiece.
Features:
-COLO powder coating ovens are designed to safely and efficiently cure previously applied powder coating media.
- Our energy-efficient designs save fuel and get to temperature quickly.
-Standard and custom sizes range from small Lab units to large heavy equipment ovens and conveyorized curing systems.
- All our batch powder coating ovens feature premium 100mm thick insulated wall and roof panels.
Model | Colo-1864 |
Worksize dimensions | 1600width x 1800 height x 1400 depth |
Overall dimensions | 1900 width x 2200 height x 1700 depth |
Power supply | Electric/ 12kw |
Voltage/Frequency | 380V/220v(50-60hz) |
Warm-up time | 15-30 min. (180° C) |
Temperature stability | < ± 3-5°C |
Temperature max. | 250° C |
Ventilation performance | 805-1677m3/h |
Motor power | 0.75kw |
Circulation/ Air flow | Vertical ,Variable through holes on the walls |
Transportation | Trolley |
Warranty | 12 months |
Packing & Delivery
-Packing: Carton and plastic bag
-Delivery: 20 work days after get the payment
If you are interested in our products,please send us enquiry.
